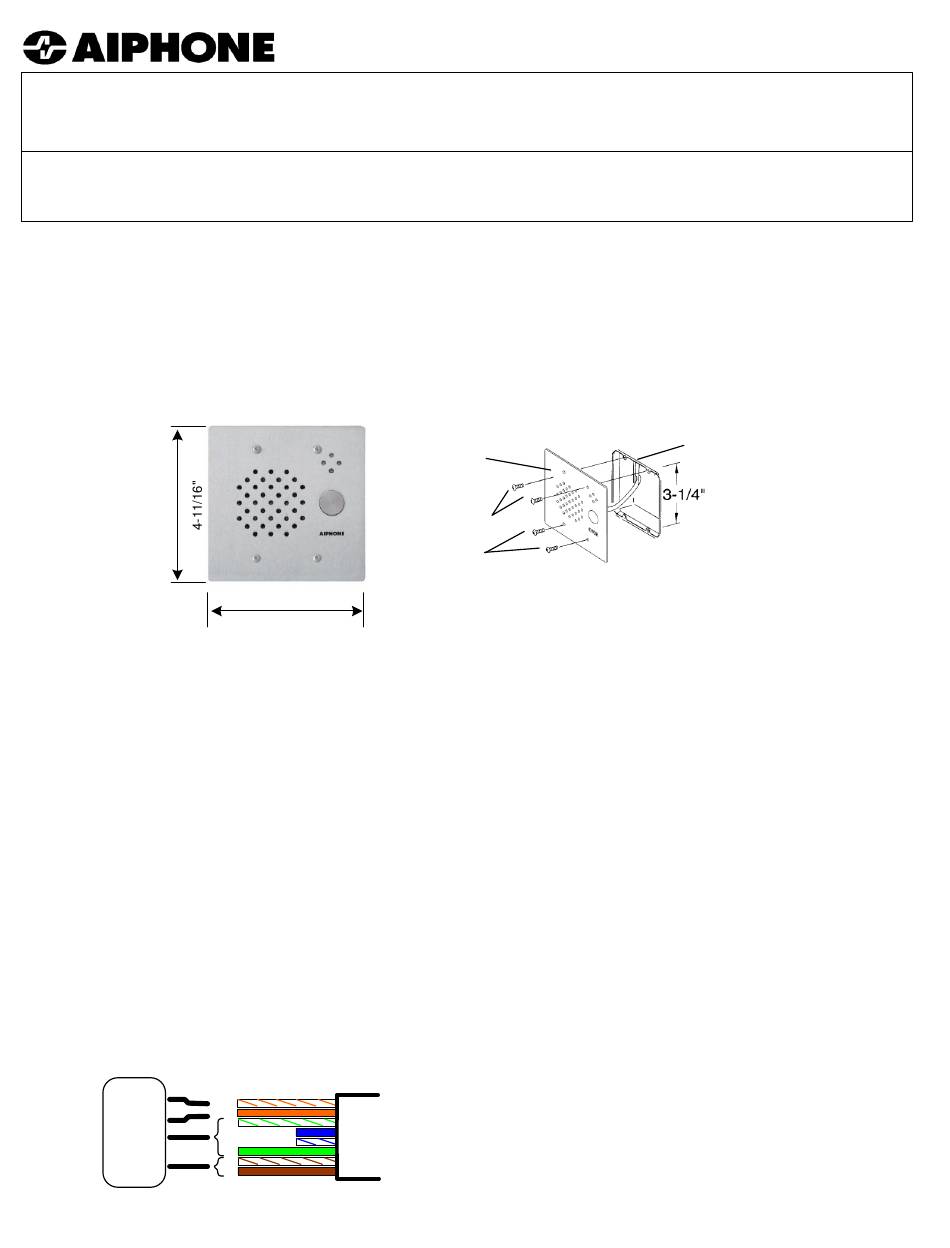

AX-SS Sub Station for AX
2 Gang Stainless Steel, Vandal Resistant Sub with Amplification
The AX-SS is an exterior rated sub station designed for use with the AX system. It is designed to be flush mounted
into a 2-gang electrical box or can be surface mounted using the SBX-2G. It requires CAT-5e wiring homerun to the
CEU, or 4 conductor wire spliced onto a CAT-5 cable at the CEU. 24V DC power is required at the station for power.
MOUNTING & INSTALLATION:
OPERATION:
·
Door stations calling Master(s): Press call button on door station. Tone and LED light will be
activated at the master station(s). Communication at master is Push-to-talk or VOX hands free.
Communication at door station is always hands free reply. Press OFF at master to conclude.
·
Master calling Door Station: Press selector button on master assigned to the door station you
wish to call. Press TALK to initiate, then speak via either Push-to-talk or VOX hands free. Press
OFF to conclude.
IMPORTANT NOTE:
·
If using AX-SS in a system including video master station(s) and if powering the station off of
the CAT-5 cable plugged into the CEU: the video monitor will be powered on when
communication is established with this station, but there will be no image present. We
recommend that the station be powered directly from the PS-2420UL as shown in Method B on
the following page.
WIRING DIAGRAM:
AX-SS
24V-
1
2
24V+
3
E
6
7
D1
8
- INSTRUCTIONS -
AX-SS
4-11/16"
4
CAT5e
5
AX-SS
TORX
screws
TIA/EIA 568B Standard:
Connect 3/6 pair (green) to "E"
Connect 7/8 pair (brown) to "D1"
Connect 1 (orange/ white) to 24V-
Connect 2 (orange) to 24V+
2-GANG BOX
Special
Order
Product
Pg. 1
