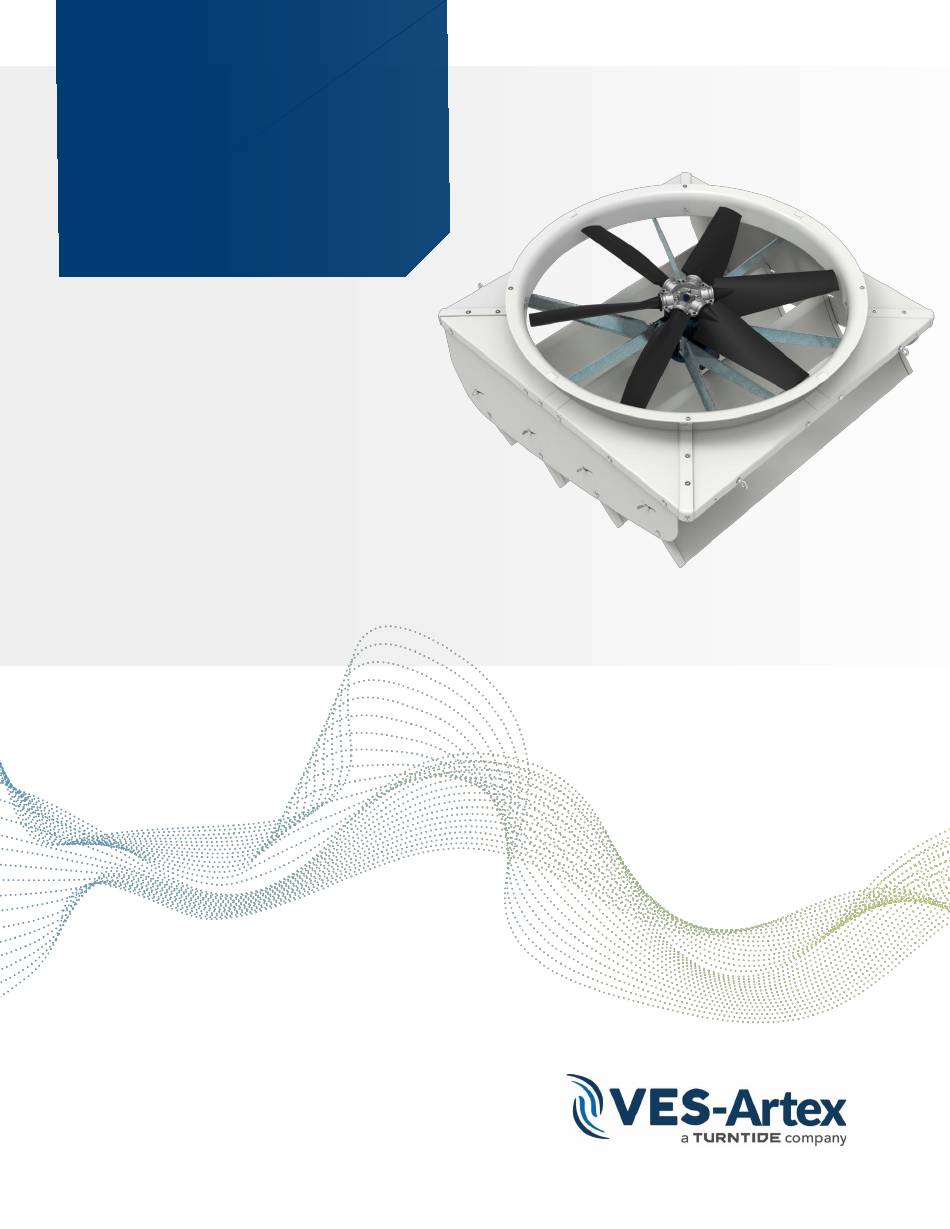

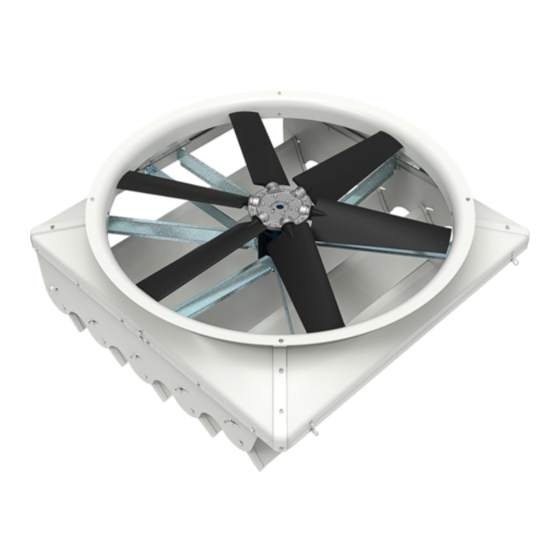

- Page 1 55” ECV Storm Assembly Instruction Manual WI-G-018-55_ECV_STORM-01 ves-artex.com | 1.888.622.2999 SAVE THIS MANUAL FOR FUTURE REFERENCE...
-
Page 2: Step Description
Copyright © 2022 ves-artex.com| All Rights Reserved STEP DESCRIPTION Tools that you will need for the assembly are: 4mm key 5mm key 5mm socket 10mm socket 10mm wrench 13mm wrench 17mm socket wrench 22mm socket wrench Metric tape measure Assemble the impeller Check the parts with stickers shown below –... - Page 3 Copyright © 2022 ves-artex.com| All Rights Reserved Fix the impeller to the big pulley Reverse the impeller and put on the floor or table, attach the big pulley with black spacer to the hub, the sticker number need to match, align the hole then attach the 6 M6x20 bolts,6 spring washers and 6 6x12 washers, tighten all the bolts.
- Page 4 Copyright © 2022 ves-artex.com| All Rights Reserved Assemble the mid-post and bracket Put the mid-post and brackets on the floor or table, take care the folding direction of the brackets, then attach to the mid-post with M8x60 bolts, 8x25 washers and M8 lock nuts, tighten all the bolts and nuts except bolts for the tensioner bracket, make sure the bracket is vertical and flat to the mid-post, the socket wrench size is 17mm, the torque is 35NM.
- Page 5 Copyright © 2022 ves-artex.com| All Rights Reserved Assemble the impeller to the mid-post Attach the belt xpa 1732 to the big pulley, then attach the big pulley to the mid-post with M14x120 bolts, 2 ø40 washers and M14 lock nut, you need to use the socket with handle which total lengh not less than 120mm, the socket wrench size is 22mm, the torque is 120NM.
- Page 6 Copyright © 2022 ves-artex.com| All Rights Reserved Assemble the motor with motor base and pulley Fix the motor to the motor base Attach the motor base to the motor with two M8 carriage bolts ,2 8x16 washers and two lock nuts on the two top holes, for the bottom two holes, use M8x30 bolts, but need to put 2 14x40 washers for each hole between the motor foot and the motor base, the washers 8x16 are on the motor side, washers 8x25 on the motor base side, make sure the motor is in good position then tighten all the bolts, the wrench size is 13mm, the torque is 30NM...
- Page 7 Copyright © 2022 ves-artex.com| All Rights Reserved Fix the pulley to the motor Aline the pulley and the motor shaft and push the pulley inside the shaft until cannot go forward, then attach two M8x16 setscrews to the holes of pulley and tighten, the key size is 4mm 55”...
- Page 8 Copyright © 2022 ves-artex.com| All Rights Reserved Assemble SMC housing Put 4 pieces SMC housing on the floor (it is better to put on the 2mx2m table, and the height of the table is good for your operation), attach the two pieces on the joint, make sure place 1A and 1A are touched, the two housing have no movement.
- Page 9 Copyright © 2022 ves-artex.com| All Rights Reserved Attach M6x25 bolts, 6x20 washers and M6 nuts and tighten with cross screwdriver and 10mm wrench, the torque is 15NM. Assemble the steel frame with the housing Fix the steel frame to the housing Reverse the housing finished in step 5-2, check the side with 6holes drilled in step5-2, the distance of left two holes is more than the right two holes( please see the following first picture), put the steel frame inside of the housing, the motor or tensioner bracket is put on the left side.
- Page 10 Copyright © 2022 ves-artex.com| All Rights Reserved 55” ECV STORM | Assembly Instruction Manual...
- Page 11 Copyright © 2022 ves-artex.com| All Rights Reserved Fix the motor base in the mid-post Attach the motor to the mid-post with 2 M8x60 bolts, 4 8x25 washers and 2M8 lock nuts, adjust the distance of the motor base and the end of the post is 143mm, then tighten the bolts and nuts, the size of the wrench is 13mm, the torque is 35NM.
