Summary of Contents for TURNTIDE VES-Artex PPFD72

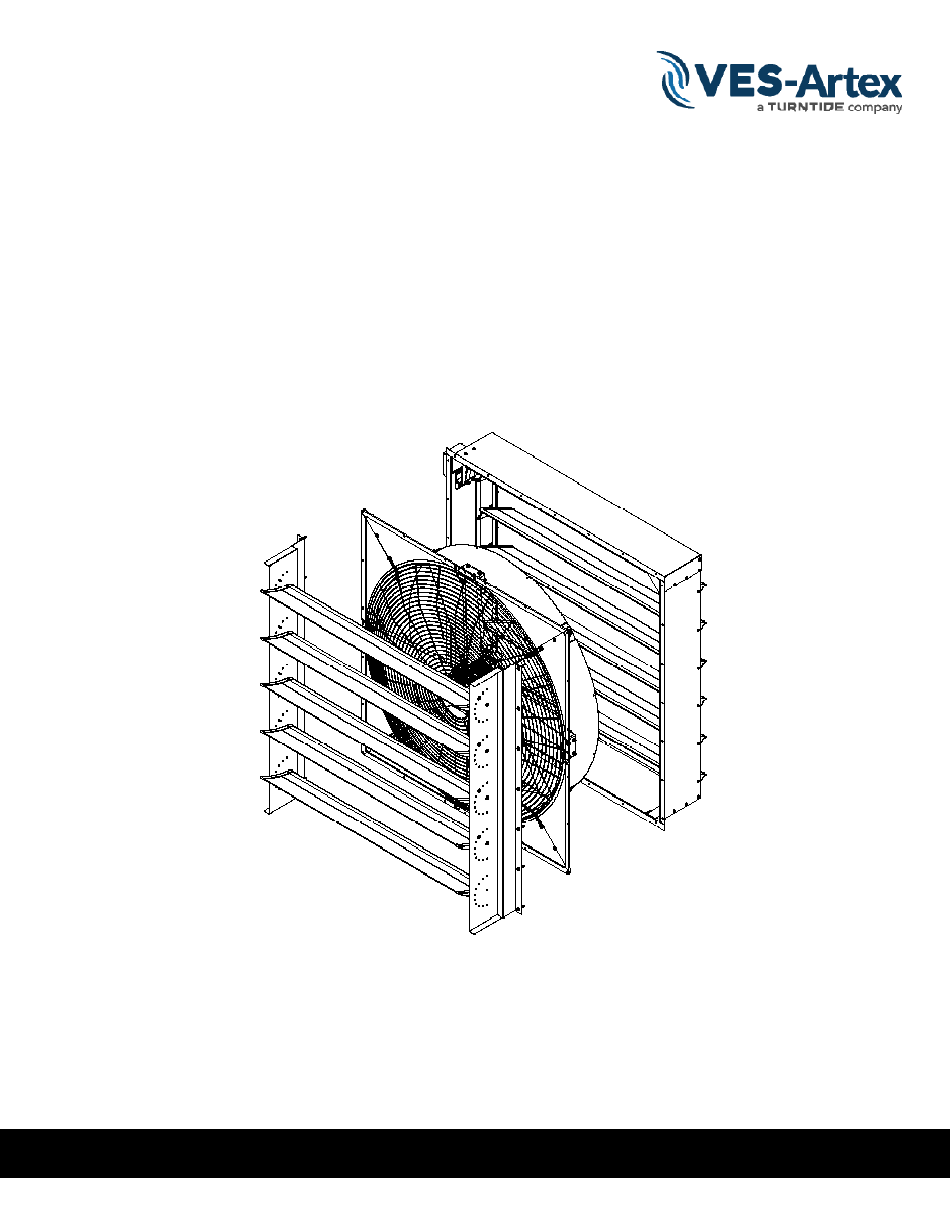

- Page 1 PIG-027-AFRD72-01 VES PPFD72 Fan Installation Manual ves-artex.com 1.888.622.2999 SAVE THIS MANUAL FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
Shutter Powered Actuator Wiring ������������������������������������������������������������������������������������������������ 3-5 General Safety ............................1-3 Control Switch ............................3-5 Unpacking ���������������������������������������������������������������������������������������������������������������������������������������������� 1-4 Turntide Motor Control Wiring PPF to PPF Shutter Powered Actuator ......3-6 General ............................... 1-4 SECTION 4: Operation and Maintenance Recommended Tools ........................1-4 Maintenance Schedule ����������������������������������������������������������������������������������������������������������������������... -
Page 3: Fan Highlights
Pre-installation Fan Highlights VES PPFD fans are designed to inject fresh air into barns, parlors, or holding areas. They are also great additions to facilities where negative inlets are not enough. • Reduce static pressure by forcing air into the barn, giving you more air to circulate� •... -
Page 4: Attachments
Pre-installation Attachments Inlet Outlet Inlet Guard Outlet Guard Actuated Shutter Kit (ASK) Inside Deflector Kit (IDK) - optional Copyright © 2022 ves-artex.com | All Rights Reserved... -
Page 5: Safety Precautions
Pre-installation Safety Precautions Read and understand this manual prior to installation or servicing your VES-Artex product. For the safe handling of VES-Artex products, you will find the following safety words DANGER, WARNING, CAU- TION and NOTICE throughout this manual. These will identify safety levels as described below. Failure to obey the safety measures may result in death, serious injury or damage to the product. -
Page 6: Unpacking
Pre-installation Unpacking Fan depicted below for demo purposes only. General Do not remove zip ties (A) during transportation and installation to prevent equipment damage or personal injury. See Figure 1-1 Once a VES-Artex product is received, inspect the product for any damage. It is recommended that in- spection occurs immediately, especially if the product is being installed at a later period of time. -
Page 7: Section 2: Mechanical Installation
Mechanical Installation Mechanical Installation Measure and mark level lines (see D & E) for proper Be sure to follow all dimensions listed in manual or position to mount the fan. "Warranty" on page 4-11 will be void. Contact VES-Artex if you are unsure of dimensions listed. PPF Rough Opening PPF ASK Mounting *Units are inch (centimeter) unless noted otherwise... -
Page 8: Cross Sectional Width
Mechanical Installation Mechanical Installation Cross Sectional Width Fan Assemblies *Units are inch (centimeter) unless noted otherwise Fan Model A - Overhang B - Minimum C - Deflector D - PPF ASK (Actuated Weight (includes ASK) Wall Thickness Fully Opened Shutter Kit) Opened lb (kg) *Units are inch (centimeter) unless noted otherwise PPFS72... -
Page 9: Inside Deflector Kit (Idk)
Mechanical Installation Mechanical Installation Outlet Guard Inlet Guard Actuated Shutter Kit (ASK) Inside Deflector Kit (IDK) Recommended Tools Recommended Tools Recommended Tools Recommended Tools Bit (#2) 13mm 4mm hex key or bit 13mm 10mm 13mm 13mm Lift/Ladder if applicable Lift/Ladder if applicable 13mm Lift/Ladder if applicable 13mm... - Page 10 Electrical Installation Electrical Installation Be sure that power is disconnect from fan and control All electrical work must be done by a certified prior to any installation work. electrician. Read and adhere to all safety warnings. Verify the electrical system is properly grounded prior to installing fans.
- Page 11 Electrical Installation Electrical Installation Motor Wiring Motor Control TX Motor uses the P05 Motor Control. Does not include the motor-to-control interconnecting wires. These must be supplied by the installer. Motor to Motor Control wires should be enclosed in a metallic (rigid or flexible) liquid tight conduit which is properly grounded to prevent interference from the connecting harness.
- Page 12 Electrical Installation LED Indicators Motor Control has three LEDs to indicate various states. Refer to table below for indicator states and their mean- ing. For location of indicator lights (G) and antenna (F) see “Motor Control” on page Active Fault Indicator Action (GREEN)
- Page 13 Operation and Maintenance Maintenance Schedule During fan service and cleaning, it is recommended Before performing any maintenance be sure power is that you wear gloves to protect your hands from disconnected from fan. possible sharp edges. At no time should you attempt to work on or adjust the fan while fan is running or the blades are moving.
-
Page 14: Control
Operation and Maintenance Operation and Maintenance Maintenance Schedule - Attachments Maintenance Guidelines These fans are rated for industrial use and are very Routine Maintenance Component Timeline Task durable under normal circumstances. It is still neces- Check all fasteners/hardware regularly. Fan Housing 6 Months Clear housing of any debris. -
Page 15: Dairy Bos (Barn Operating System)
Operation and Maintenance Dairy BOS (Barn Operating System) Dairy BOS is an available app DairyBOS is the industry’s first fully integrated barn operating system that controls every facet of the environment that impacts cow comfort – while also maximizing animal welfare and sustainability. From ventilation, to lighting, to cooling and beyond, DairyBOS integrates with VES-Artex products, and a wide variety of other manufacturer’s products, including fans, soakers, sensors and a variety of other in- barn equipment. -
Page 16: Replacement Parts
Operation and Maintenance Replacement Parts Base Fan (105606) Item Part Number Description 105306 TX2 Motor 100434 Gusset 105597 Support Bracket 104686 Blade Assembly 100484 Bushing 100189 Housing Section 105824 Support Bracket Stiffener | All Rights Reserved Copyright © 2022 ves-artex.com... -
Page 17: Outlet Guard
Operation and Maintenance Operation and Maintenance Outlet Guard Inside Deflector Kit (IDK) Item Part Number Description Item Part Number Description 103843 Inside Deflector 105211 Outlet Guard 100309 Hanger, Left and Right, Galvanized 101528 Hardware Package 104663 Hardware Kit, PPFS72IDK 103972 Deflector assembly (w/end cap and screw) All Rights Reserved | All Rights Reserved... -
Page 18: Inlet Guard
Operation and Maintenance Operation and Maintenance Inlet Guard Actuated Shutter Kit (ASK) Item Part Number Description Item Part Number Description 100321 Right Frame 100600 Flat Guard 100952 Insulation, Sound (Right) 101542 (Not Shown) Hardware Package 100298 Lower Gusset 100954 Insulation, Sound (Bottom) 100318 Bottom Frame 100319... -
Page 19: Troubleshooting
Operation and Maintenance Troubleshooting Symptom Cause Solution FAN WILL NOT START Blown or bad fuse or circuit breaker Check fuses and circuit breakers. Bad connection Check wire connections to motor. Over or under voltage Check voltage at fan connection. FAN TOO FAST / SLOW Over or under voltage Check voltage at motor. -
Page 20: Warranty
VES. Certain aspects of disclaimers or limitations on warranties may not be applicable to consumer products 2 Years VESC Control Series, Phason Controls, Turntide in certain jurisdictions; in such cases, such aspects of dis- DirectDrive Controls, and Variable Frequency Drives (Manu-... - Page 21 Operation and Maintenance PROMPT DISPOSITION: With respect to any product that RETURNS: Products may NOT be returned to VES without proves to be defective within the applicable limited warranty a Return Merchandise Authorization (RMA) number. A pur- period, a good faith effort will be made for prompt correction chaser has 30 days from the date of purchase to request an or other adjustment.
