- Page 1 55” Belt Drive ECV Storm Fan Installation Manual PIG-024-55_ECV_Storm-01 ves-artex.com | 1.888.622.2999 SAVE THIS MANUAL FOR FUTURE REFERENCE...

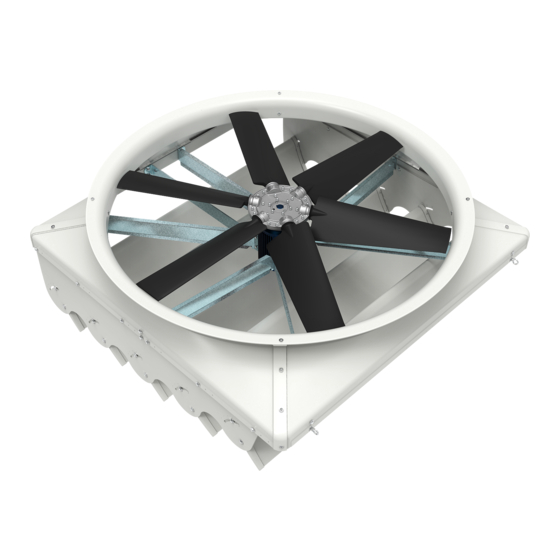

- Page 2 Copyright © 2022 ves-artex.com| All Rights Reserved The instructions and information below are the guidelines to use when installing a VES-Artex 55” ECV Storm Fan. When you are complete, your fan should look the picture bellow. Disclaimer This document is meant to serve as a general installation guide for VES-Artex products. Please ensure that you have reviewed and understand the material in this document before proceeding.
- Page 3 Copyright © 2022 ves-artex.com| All Rights Reserved Before You Begin Location of the Fans have been determined Refer to Layout Drawings Make Sure you have all the parts Refer to Appendix 1 - Parts List You will also need the following tools/equipment Refer to Appendix 2 Procedure –...
- Page 4 Copyright © 2022 ves-artex.com| All Rights Reserved 4. Install the two side panels to the main housing assembly, one per each side. Use the screws and washers provided; 4 per side. The side panels will fit on the inside of the fan housing.
- Page 5 Copyright © 2022 ves-artex.com| All Rights Reserved 7. Adjust the louvers to the correct position, angles below taken when fan is hung at 30 degrees from horizontal, see Hanging Procedure step 1 . ① Louver ① to ② will be at 35⁰ from horizontal Louvers ③...
- Page 6 Copyright © 2022 ves-artex.com| All Rights Reserved Procedure – Locate and Mount Chains for Hanging The ECV Storm 55” Fan is approximately 1.7 meters (5.5’) square. The chains should be attached to the ceiling approximately 0.7m (2.25’) in front and 0.7m (2.25’) behind and to the side of the intended location of the corners of the fan.
- Page 7 Copyright © 2022 ves-artex.com| All Rights Reserved There are 2 methods to mount the chains to the rafters/purlins Method 1 Method 2 Method 1 = Wrap the chain around the purlin at each mount point. • Use a quick connect link to connect the chain together once it is wrapped around the purlin Method 2 = Put an eye bolt in the purlin, drill...
- Page 8 Copyright © 2022 ves-artex.com| All Rights Reserved Procedure – Hanging the Fan from the Roof Attach the front chains to the eye bolts in the Front front corners of the fan Chains Lift the fan(s) up to the required location, using a scissor lift.
- Page 9 Copyright © 2022 ves-artex.com| All Rights Reserved 2. Attach the back chains to the eye bolts in the Rear Chains front corners of the fan NOTE: The minimum height from the ground is 2.4m. If there is equipment that will pass under the fan, adjust the height of the fan so that the fan is higher than the equipment...
- Page 10 Copyright © 2022 ves-artex.com| All Rights Reserved 3. Lower the scissor lift until the chains are taking the weight of the fan, check the fan is hung correctly. Check that 1. The fan is level (0 ) side to side 2.
- Page 11 Copyright © 2022 ves-artex.com| All Rights Reserved Procedure – Testing air pattern/air speed Using a hand-held air speed meter measure the air speed 1.2 m above the ground at 6m and 9m from the fan Minimum Target Air Speed should be: Distance from Fan Minimum Air Speed 6.0 m 2.5 m/s...
- Page 12 Copyright © 2022 ves-artex.com| All Rights Reserved Appendix 1 – Parts List Per Fan Description Diagram 55” ECV Storm fan assembly (ships with motor and blade attached) Louver Side plates (left & right) Hardware kit 1 Box Chain – 8mm Obtain Localy 55”...
- Page 13 Copyright © 2022 ves-artex.com| All Rights Reserved Appendix 2 – Tools and Equipment List Wrench and socket set Spanner(s)/wrench Tape measure - 8M Measuring Tape Screwdriver set Spirit Level 55” BELT DRIVE ECV STORM FAN V01-December 2020 | Installation Manual pg.
- Page 14 Copyright © 2022 ves-artex.com| All Rights Reserved Fork lift Cherry Picker, Scissor Lift, or other device for lifting the fans into place Chains for lifting the fans – must be able to hold a total of 400 kgs Contact Please contact VES-Artex with any questions regarding your ECV Storm Fan installation. Phone: +1 888 622 2999 info@ves-artex.com www.ves-artex.com...
