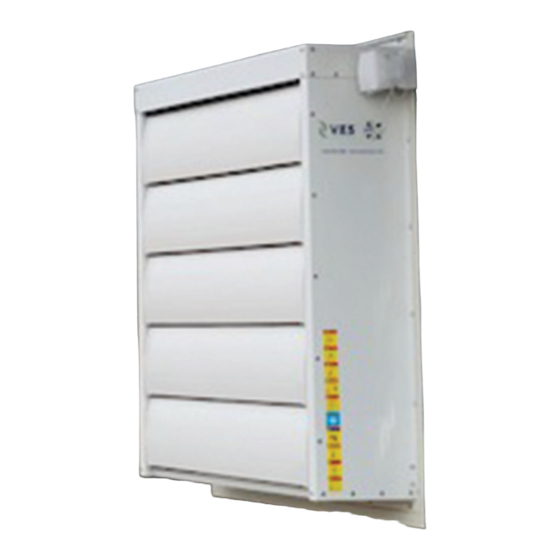

Summary of Contents for TURNTIDE VES-Artex PPF AIR PPFS55

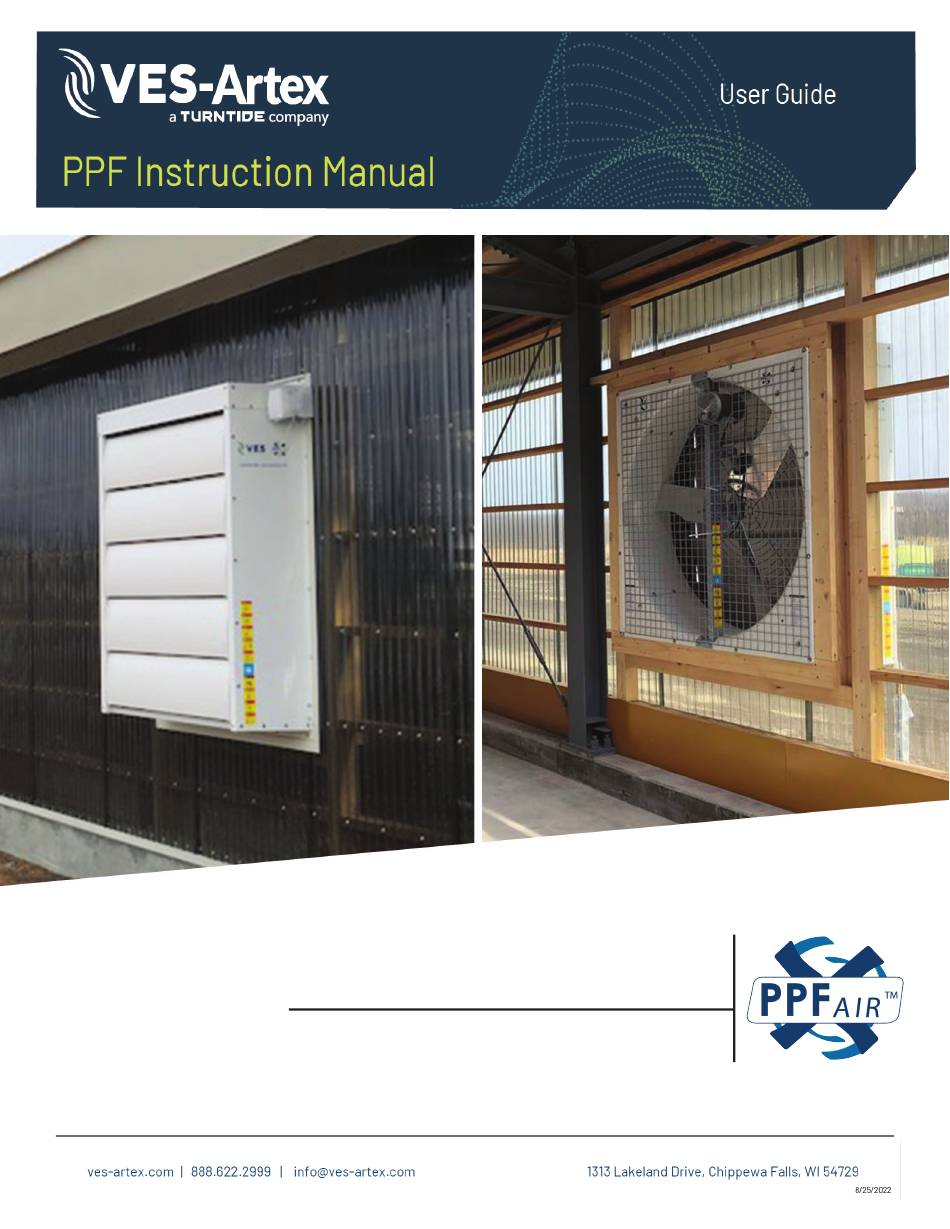

- Page 1 PUM-007-PPFS_Instruction_Manual-01 POSITIVE PRESSURE SERIES PPFS55 OWNER’S MANUAL | VESENVIRO.COM | 1.888.622.2999 Read and save these instructions. Revised 9/1/18...
-
Page 2: Table Of Contents
| PPFS 55 Instruction Manual | Table Of Contents TABLE OF CONTENTS Page # PPFAir General Information Safety Safety & Warnings Installation Safety Operation Safety Maintenance Safety Installation Step 1: Framing Step 2: Unpacking Fan & Installing Intake Guard Step 3: Mounting of Actuated Shutter Step 4: Assembly of Actuated Shutter Step 5: Installing Square Guard Electrical Guide... -
Page 3: Safety
Installation Steps | PPFS 55 Instruction Manual | TOOLS NEEDED Cordless drill 13mm Socket * For installation in metal Drill-bit Set Phillips-head screwdriver buildings, please contact Metric hex-key set Flat-head screw driver VES. Drill socket adapter 4-3in wood screws (optional) Ratchet 1-48in 2x4 lumber (optional) 14mm Socket... -
Page 4: Step 1: Framing
| PPFS 55 Instruction Manual | Table Of Contents STEP 1: FRAMING • Check framing for square, see framing dimensions below • Minimum of 6” Wall thickness is required •Picture frame should be on interior and exterior wall (wood construction) •... -
Page 5: Step 3: Mounting Of Actuated Shutter
Installation Steps | PPFS 55 Instruction Manual | Note:Minimum wall thickness of 6" required Note:Minimum wall thickness of 6" Inside required STEP 3: SETTING & Note:Minimum wall Inside thickness of 6" Outside required ASSEMBLY OF FAN Inside Outside • Place fan in wall make sure it is pressed firmly against the Outside framing and secure with 2 M8... -
Page 6: Step 5: Installing Square Guard
| PPFS 55 Instruction Manual | Table Of Contents STEP 5: INSTALLING SQUARE GUARD • Place square guard on face of fan with motor cut-out orientated to go over portion of motor sticking out. • Secure guard using hardware supplied (see cut sheet) Bolt Set For PPFS55″Square Guard Bolt Set For PPFS55″Square Guard Bolt Set For PPFS55″Square Guard... -
Page 7: Electrical Guide
Installation Steps | PPFS 55 Instruction Manual | ELECTRICAL GUIDE WIRING FAN MOTOR | See motor label for wiring diagram. All Electrical work must be completed by a licensed electrician in accordance with all Local and National electrical and safety codes, as well as the National Fire Protection Agency (NFPA) where applicable. - Page 8 | PPFS 55 Instruction Manual | Table Of Contents PULLEY ALIGNMENT Alignment of drive and driven pulleys are essential for proper fan operation and optimal performance. If the pulleys are more then 1/10” per foot off from center distance, this can cause excessive belt wear, vibration, and a decrease in fan performance.
-
Page 9: Maintenance
Installation Steps | PPFS 55 Instruction Manual | MAINTENANCE READ THESE INSTRUCTIONS BEFORE SERVICE OR PART REPLACEMENT 1. Read and understand the operating manual before trying to install or operate PPFAir Fans. 2. Power supply should be turned OFF for service to motor and electrical components. Use CAUTION in checking voltage or other procedures requiring power to be ON. - Page 10 | PPFS 55 Instruction Manual | Table Of Contents MAINTENANCE Always disconnect the power supply Do not attach foreign objects to It is very important for the life of the fan that before servicing fan or working with the blades of the fan. it is kept free of dust and dirt build up.
-
Page 11: Troubleshooting
Installation Steps | PPFS 55 Instruction Manual | TROUBLESHOOTING All VES Ventilation Products are tested before they leave the factory, resulting in an extremely low rate of returns. However, due to shipping and installation procedures, occasionally a fan will need a minor adjustment to run satisfactorily. - Page 12 | PPFS 55 Instruction Manual | Table Of Contents ITEM NO. PART NUMBER DESCRIPTION QTY. POST MOUNT WELDMENT, 55", SMC EQUIPMENT PARTS: PC1082 FANS MOTOR, 1.5 HP, 230/460V, 3 PH, FAN ONLY MR2011-15 1725 RPM, 50/60HZ, RIGID BASE, SHORT SHAFTS, SMC FANS CAUTION: Read and follow all PC2540 BEARING SHAFT ASSY, 55"...
- Page 13 Installation Steps | PPFS 55 Instruction Manual | ITEM NO. PART NUMBER EQUIPMENT PARTS : ACTUATED SHUTTER LOUVE PC1260KL-S LOUV PC1260K-S PC1393-S ACTUA PC2612-S PC2627-S SHAFT HC1573-S PC2616-S PC2615-S HARDWARE PACK NOT SHOWN: HP148-HDWR PK, 55" PPFS SHTR MOUNTIN ITEM NO. PART NUMBER DESCRIPTION PROPRIETARY AND CONFIDENTIAL...
-
Page 14: Limited Warranty & Return Policy
LIMITED WARRANTY & RETURN POLICY: THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE HEREOF. ONE-YEAR LIMITED WARRANTY: PRODUCT SUITABILITY: VES Environmental Solutions, LLC. (VES) products are warranted to the Codes and regulations governing sales, construction, installation, original purchaser (“purchaser”... - Page 15 THIS PRODUCT IS PART OF AN ELITE VES SYSTEM VES-Artex understands the needs and concerns of the dairy, poultry and swine farmers, industrial facilities and greenhouses. VES-Artex is a forward thinking company with innovative products and designs. Our systems ensure the best ventilation and application comfort in the world. As our name outlines, we provide environmental solutions for a broad range of applications.
