DirekTronik EL2315 Quick Start Manual

This quick start guide describes how to install and use the Dual Rate SFP media converter. The converter introduced here provides one
channel media conversion solution.

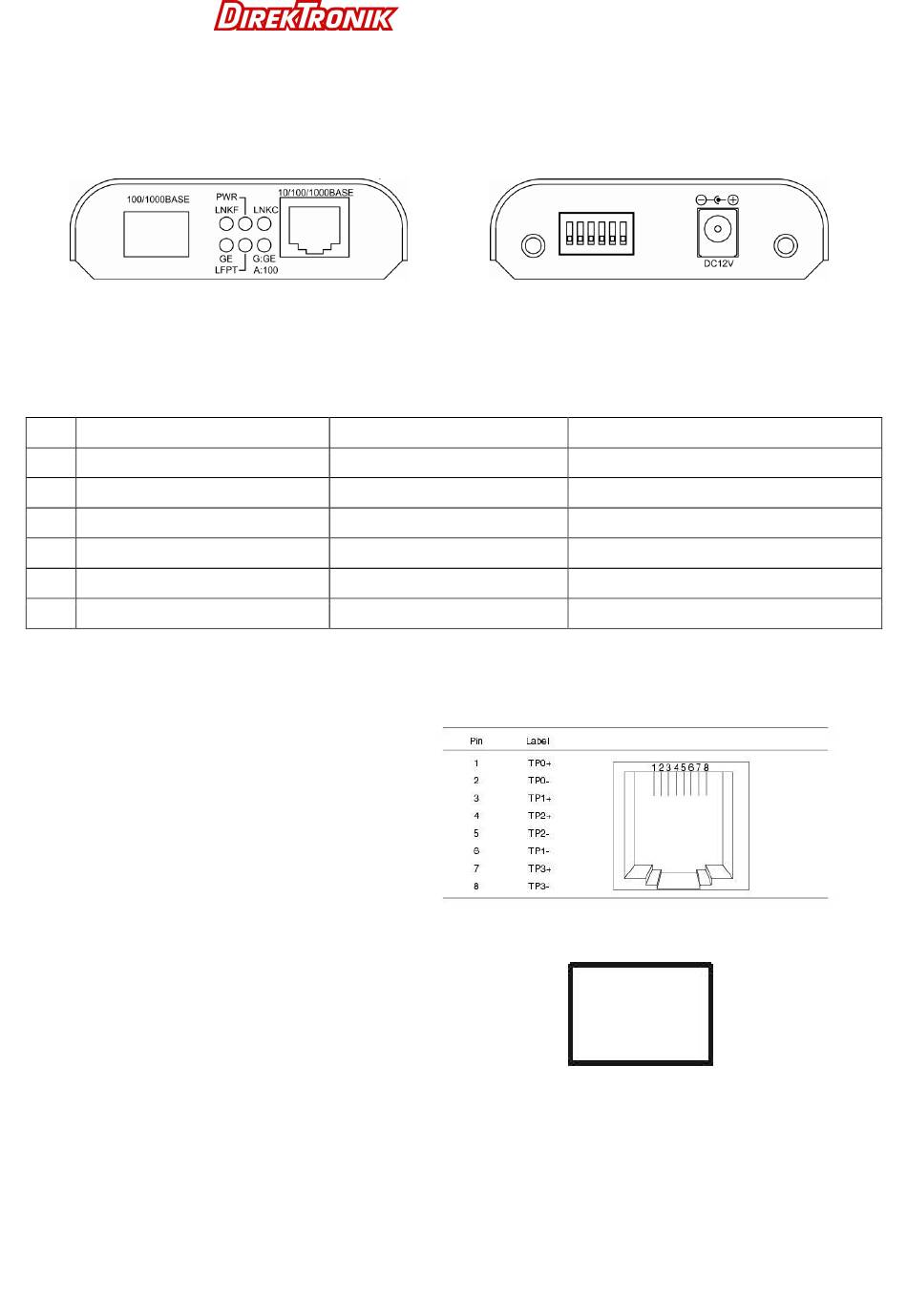

Physical Description
Product Overview
This Dual Rate SFP media converter is a plug-and-play device. Connect the supplied AC to DC power adaptor to the receptacle on the rear panel
of the Dual Rate SFP media converter, and then attach the plug into a standard AC outlet.
DIP Switch
No. Down
1 Disable LFPT
2 Enable Auto-Negotiation for TX port
3 TX port Force mode: Full-duplex
4 TX port Force mode: 100Mbps
5 SFP at 100Mbps
6 Function reserved
<Note> Power must be off/on after re-setting LFPT function.
The 10/100/1000Base-TX and SFP Connectors
The 10/100/1000Base-TX Connection
The following lists the pinouts of 10/100/1000Base-TX port.
The SFP Connection
The SFP socket for 100Base and 1000Base fiber optic
expansion.
EL2315 Dual Rate SFP Media Converter
Up
Enable LFPT
Enable Force mode for TX port
TX port Force mode: Half-duplex
TX port Force mode: 10Mbps
SFP at 1000Mbps
Function reserved
1
LFPT: Link-Fault-Pass-Through function
For SFP expansion
V2
