- Page 1 Best.nr: 20110042 H.265/264 1080P HDMI Encoder Operating Instruction...
- Page 2 Operating Instruction Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
-
Page 3: Table Of Contents
Operating Instruction Table of Contents 1. Package Contents..........................4 2. Specifications..........................4 3. Input Resolution List........................4 3.1. VESA Resolution List......................5 Encoder Mode:............................ 6 1. Features............................6 2. Wiring Diagram..........................6 3. Connecting............................7 4. Device Setting Description......................8 4.1. Change IP address from PC....................8 4.2. -
Page 4: Package Contents
Operating Instruction 1. Package Contents 1). 1x Encoder 2). 1x DC power supply 12V/1A 3). 2x Fixed Hangers 4). 1x Phoenix plugs for RS232 cable termination 5). 1x CD for control software & user manual 2. Specifications Operating Temperature 0 to +40 ℃（+23 to 149℉） Operating Humidity 5 to 95%RH(No Condensation) Max resolution... -
Page 5: Vesa Resolution List
（8BIT） 1080P √ 720P √ 24Hz （8BIT） 1080P √ 720P √ 25Hz （8BIT） 1080P √ 3.1. VESA Resolution List Resolution Support 800×600 √ 1024×768 √ 1280×768 √ 1280×1024 √ 1600×1200 √ 1680×1050 √ 1920×1080 √ 1280×720 √ 1360×768 √... -
Page 6: Encoder Mode
Operating Instruction Encoder Mode: 1. Features ● The output supports RTSP / HLS / RTMP (S) / RTP / UDP protocol ● Support a variety of video decoding: H.265 mainstream, H.264 basic, mainstream and advanced quality, MJPEG/JPEG basic quality ● Audio coding format supports AAC, AAC+, AAC++ ●... -
Page 7: Connecting

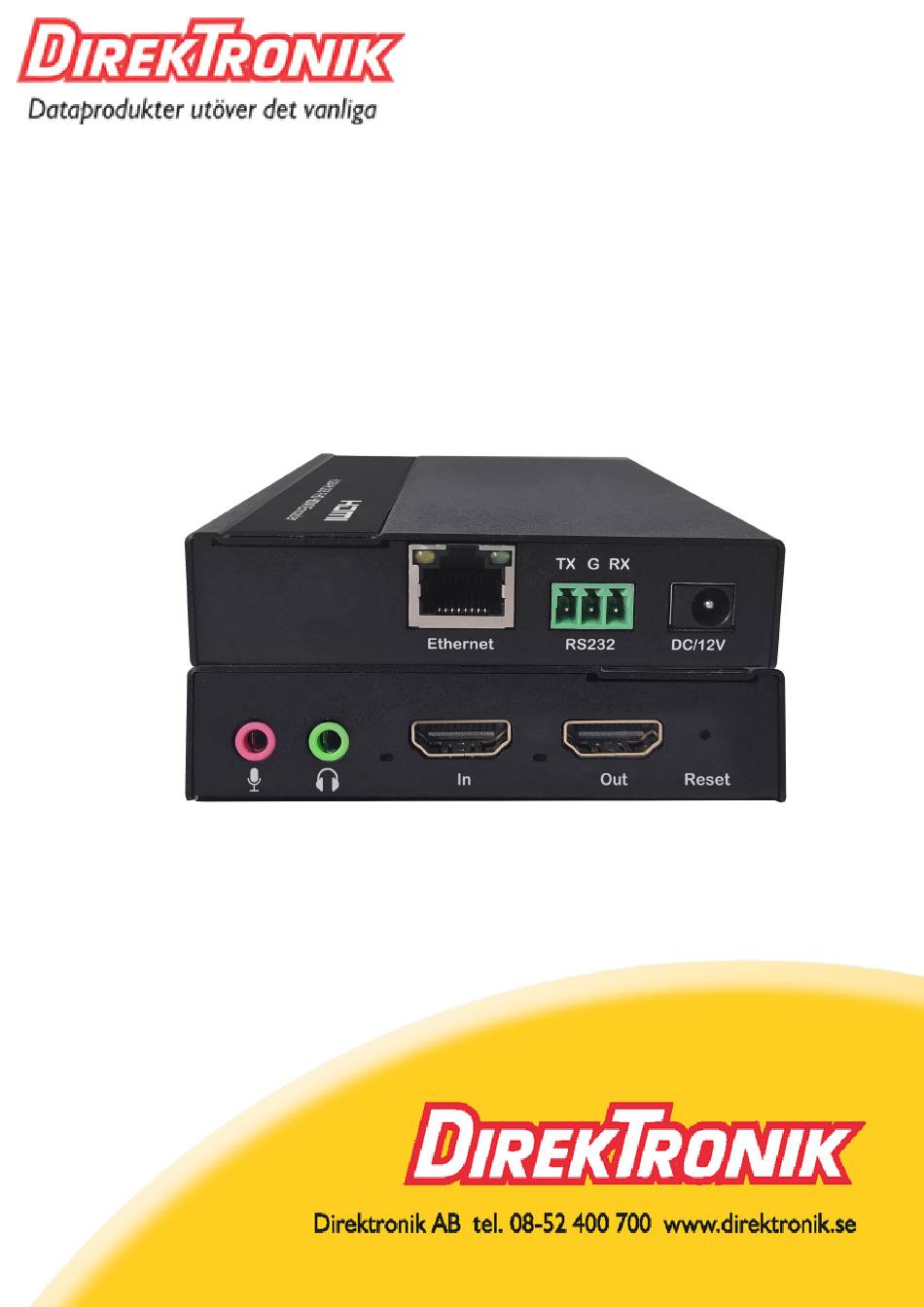

Operating Instruction 3. Connecting ① DC12/1A Power input port ② RS232 Port ③ Ethernet port ④ Audio Embedded port ⑤ Analog Audio Extraction port ⑥ HDMI Input Indicator ⑦ HDMI Input port ⑧ HDMI Output Indicator ⑨ HDMI Output port ⑩... -
Page 8: Device Setting Description
Operating Instruction 4. Device Setting Description 4.1. Change IP address from PC Before configuring the device through the website, it is necessary to configure the IP address from the computer configured with the device (mainly to ensure that the computer and the device were set in the same network segment). 1). -
Page 9: Status
Operating Instruction 4.3. Status Divided into five modes: "Status", "Network", "Main stream", "Sub stream" and "Audio stream" 4.4. Encoder 4.5. Main stream 1. Channel address can support RTSP / HLS / RTMP (S) / UDP / RTP protocol 2. The maximum support 1920*1080@60fps resolution decoding. Main stream default auto decoding 3. -
Page 10: Sub Stream
Operating Instruction 4. Enable RTSP by default ※ No need to restart the device after successful setting ※ If all four frames are decoded at the same time, the source supports only 1080P encoded frame rate/key frame interval 25FPS video stream ※HLS format video streams only support H.264 decoding ※... -
Page 11: Osd Setting
Operating Instruction will be played HDMI audio and the analog audio embedded simultaneously, Volume range 0 ~ 256; ※ Audio input is available for all streams Audio Coding Audio support AAC/AAC+ +/AC3/MP2/MP3, sampling rate 44.1/48khz, bit rate: 128 default Support Enable RTSP Audio stream transfer or modify audio stream transfer address ※... -
Page 12: System Setting
Operating Instruction 4.10. System Setting DHCP status: Enabled by default IP: Only can be set when DHCP disabled. The factory default IP is 192.168.1.168 Net mask: The factory default net mask is 255.255.255.0 Mac address: factory fixed, support modification, restore after reset Port Settings: →RTSP anonymous Access: Enable means that no account and password need to be input when receiving video stream;... - Page 13 Operating Instruction Upload firmware and configuration and backup: Time and date setting: Factory reset: Reboot: Schedule Restart: Language Setting:...
-
Page 14: Maintenance
Operating Instruction MAINTENANCE Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean this unit. PRODUCT SERVICE （1）Damage requiring service: The unit should be serviced by qualified service personnel if: (a) The DC power supply cord or AC adaptor has been damaged; (b) Objects or liquids have gotten into the unit;... - Page 15 Operating Instruction Service center or other Authorized Servicer, or damage that is attributable to acts of God. 2) THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LIMITED WARRANTY COVERAGE". THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRNTY.
