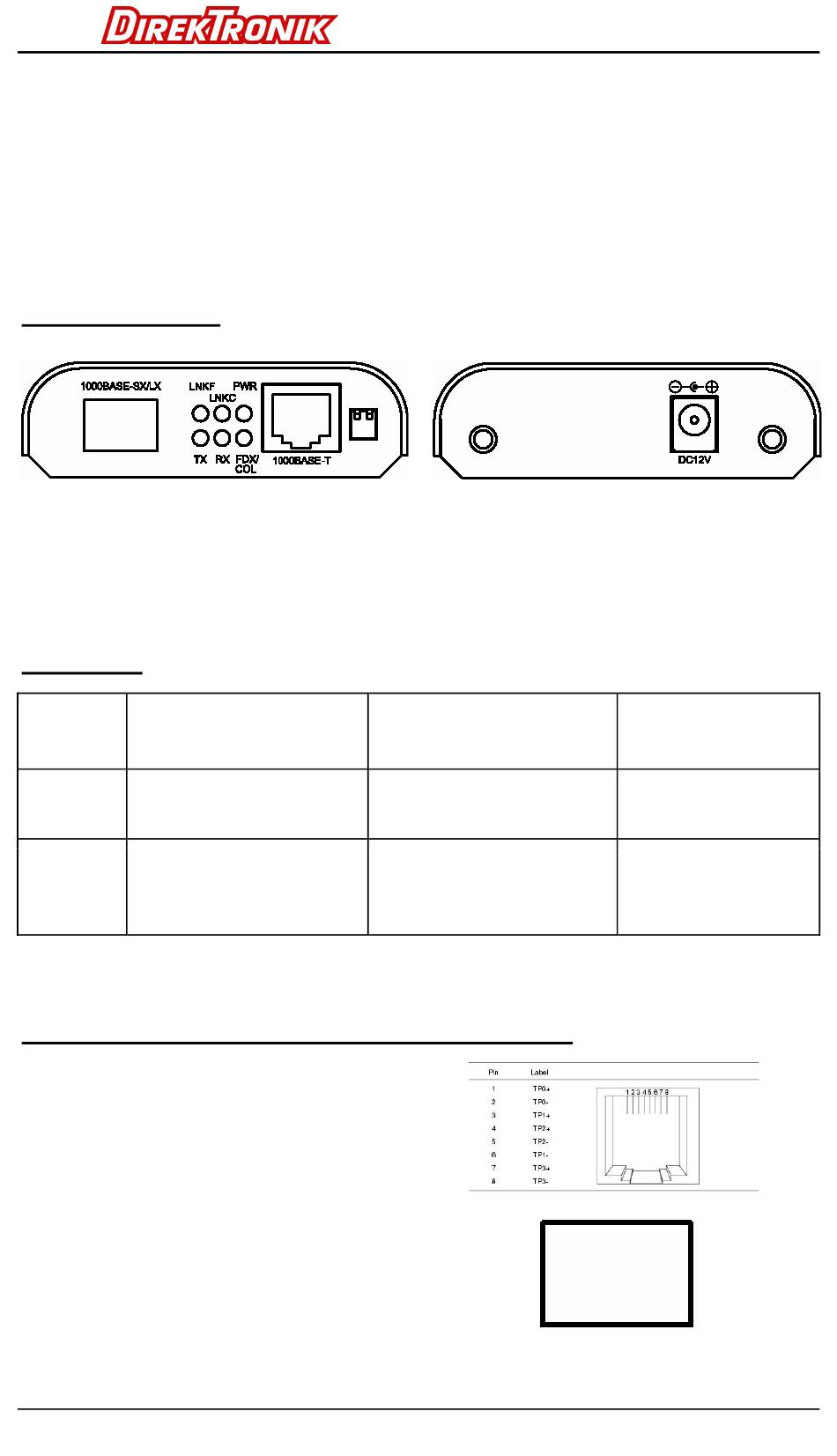

Quick Start Guide
This quick start guide describes how to install and use the Gigabit Ethernet media
converter. The converter introduced here provides one channel media conversion
solution.
Physical Description
Product Overview
This Gigabit Ethernet media converter is a plug-and-play device. Connect the supplied
AC to DC power adaptor to the receptacle on the rear panel of the Gigabit Ethernet
media converter, and then attach the plug into a standard AC outlet with a voltage range
from 100 to 240V AC.
DIP Switch
DIP
Up (Default Setting)
switch
Left-hand
The fiber port auto detects
side
duplex mode
Right-hand
Disable LFPT
side
<Note> Power must be on/off after re-setting LFPT function.
The 1000Base-T and 1000Base-SX/LX Connectors
The 1000Base-T Connections
The following lists the pinouts of
1000Base-T port.
The 1000Base-SX/LX Connections
The SFP socket for Gigabit fiber optic
expansion.
User's Manual
Gigabit Ethernet Media Converter
Down
Force the fiber port to full
duplex mode
Enable LFPT
LFPT:
link-fault-pass-through
function
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1000Base-T and is the answer not in the manual?

Questions and answers

Related Manuals for DirekTronik 1000Base-T

Summary of Contents for DirekTronik 1000Base-T

  • Page 1 Enable LFPT LFPT: side link-fault-pass-through function <Note> Power must be on/off after re-setting LFPT function. The 1000Base-T and 1000Base-SX/LX Connectors The 1000Base-T Connections The following lists the pinouts of 1000Base-T port. The 1000Base-SX/LX Connections The SFP socket for Gigabit fiber optic expansion.

  • Page 2: Functional Description

    Gigabit Ethernet Media Converter The Port Status LEDs LEDs State Indication Power Steady Power feeding in No power LNKC Steady TX port: A valid network connection established LNKC stands for LINK/Copper No connection LNKF Steady FX port: A valid network connection established LNKF stands for LINK/Fiber No connection FDX/COL...

  • Page 3: Fcc Statement

    1000Base-T to 1000Base-LX (WDM single-mode) with link-fault-pass-through function The Gigabit Ethernet Media Converter fully complies with IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX Gigabit Ethernet standards. In this manual, you will find: Product overview Features on the media converter Illustrative LED functions...

  • Page 4: Table Of Contents

    Gigabit Ethernet Media Converter Table of Contents ................1 UICK TART UIDE ............1 HYSICAL ESCRIPTION ............2 UNCTIONAL ESCRIPTION FCC S ...................3 TATEMENT ..................3 RADEMARKS ....................3 REFACE ................4 ABLE OF ONTENTS ..................5 NTRODUCTION ...............5 RODUCT VERVIEW ...............6 RODUCT EATURES .................7 ACKING .............8 HANNEL EDIA ONVERTER...

  • Page 5: Introduction

    19” chassis as shown below. Product Overview Figure 1: 1000Base-T to Gigabit SFP socket Media Converter with link-fault-pass-through function <NOTE> The chassis is to be ordered separately. User’s Manual...

  • Page 6: Product Features

    TX port There are two pins on the DIP switch of the 1000Base-T and 1000Base-SX/LX one-channel media converter: Toggle up the pin on the left-hand side to let the fiber port auto detect duplex mode.

  • Page 7: Packing List

    Gigabit Ethernet Media Converter Packing List When you unpack this product package, you will find the items listed below. Please inspect the contents, and report any apparent damage or missing items immediately to your authorized reseller. The Media Converter User’s Manual AC to DC Power Adaptor User’s Manual...

  • Page 8: One-Channel Media Converter

    For the TX port, it uses RJ-45 connector and supports auto MDIX for uplink purpose. Port Status LEDs The LED indicators give you instant feedback on status of the converter: Figure 2: 1000Base-T to Gigabit SFP socket Media Converter with link-fault-pass-through function LEDs State Indication Power...

  • Page 9: Installation

    Gigabit Ethernet Media Converter Installation This chapter gives step-by-step installation instructions for the Converter. Selecting a Site for the Equipment As with any electric device, you should place the equipment where it will not be subjected to extreme temperatures, humidity, or electromagnetic interference. Specifically, the site you select should meet the following requirements: The ambient temperature should be between 32 and 113 degrees Fahrenheit (0 to 45 degrees Celsius).

  • Page 10: Specifications

    Gigabit Ethernet Media Converter Specifications Applicable Standards IEEE 802.3ab 1000Base-T IEEE 802.3z 1000Base-SX/LX Fixed Ports 1000Base-T to 1000Base-SX/LX: 1 TX port, 1 Gigabit SFP socket Speed 2000Mbps for full-duplex Forwarding rate 1,488,100pps for 1000Mbps LED Indicators 1000T to 1000SX/LX: Power; TX; RX; FDX/COL; LNKF; LNKC Dimensions 80.3mm (W) ×...

  • Page 11: Ordering Information

    Gigabit Ethernet Media Converter Ordering Information 1000T to 1000SX/LX Media Converter Gigabit Ethernet Cable / Connector Distance Port One 1000Base-T 4-pairs Cat. 5 / RJ-45 100m Port Two Options 1000Base-SX MMF of 850nm (62.5/125µm) / SFP 220m 1000Base-SX MMF of 850nm (50/125µm) / SFP...
