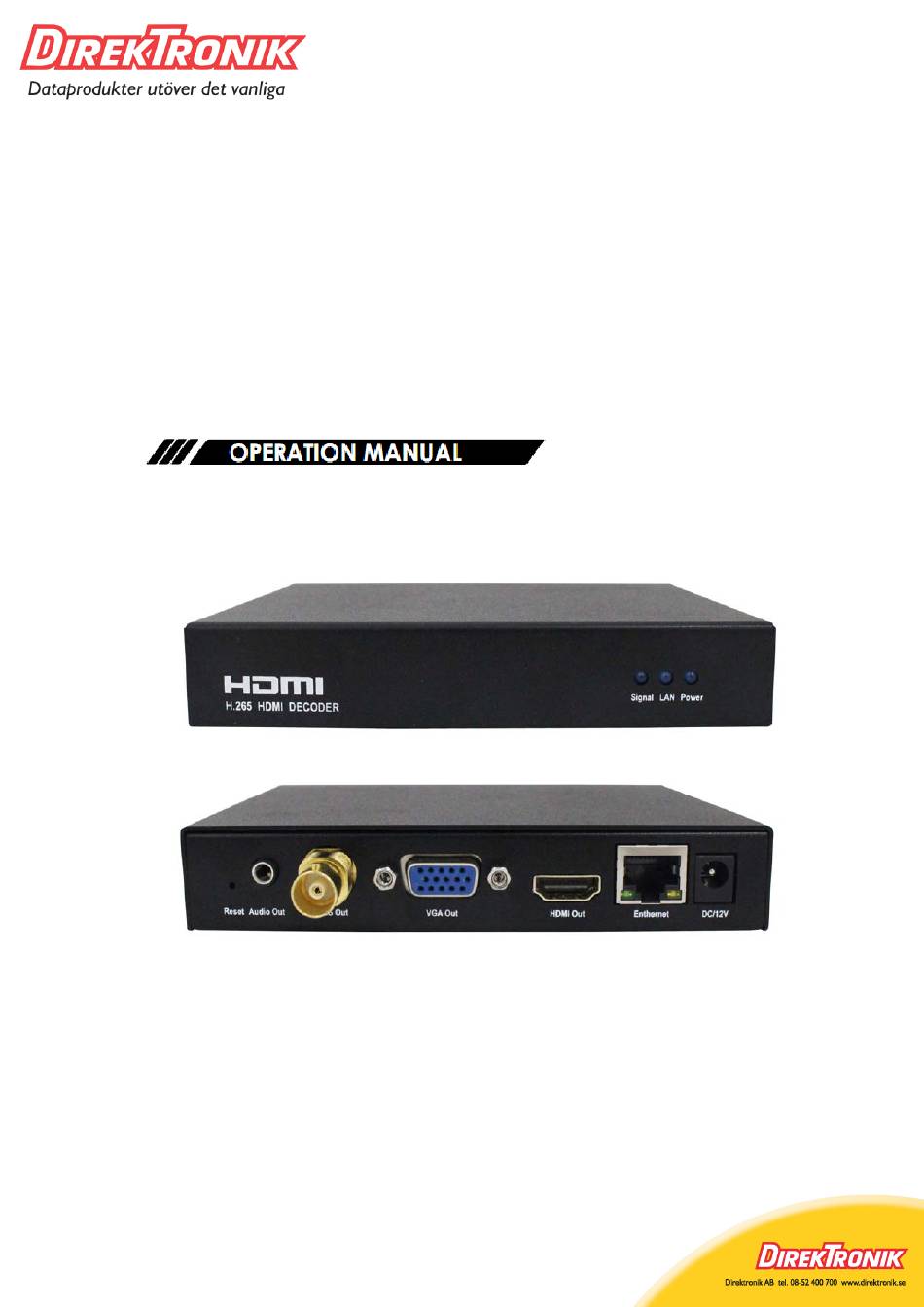

- Page 1 Best.nr: 25-0542 H.265 HD HDMI Decoder for IP TV...
-
Page 2: Safety Precautions
Operating Instruction Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. -
Page 3: Table Of Contents
Operating Instruction CONTENTS 1.INTRODUCTION................5 2.APPLICATIONS.................5 3. PACKAGE CONTENTS..............5 4. SYSTEM REQUIREMENTS............5 5. FEATURES..................6 6.SPECIFICATIONS................6 7. OPERATION CONTROLS AND FUNCTIONS......7 7.1 Front Panel ...................7 7.2 Rear Panel..................7 8. CONNECTION DIAGRAM..............8 9. SYSTEM SETTING................9 9.1 Change the IP Address..............9 9.2 Login of Configuration..............10 9.3 Check the Status................10 9.4. - Page 4 Operating Instruction 10. OSD SETTING.................13 11. CROP SETTING................14 12. SYSTEM UPDATE................15 13. RESET TO FACTORY DEFAULTYS...........15 14. MAINTENANCE................16 13. PRODUCT SERVICE..............16 15. WARRANTY..................16...
-
Page 5: Introduction
Operating Instruction 1. INTRODUCTION This high performance H.265 /H.264 decoder support RTSP, HTTP TS, HTTP FLV, RTMP, UDP and HTTP PTE etc streaming protocol decoding, which is ideal for decoding multiple types of video streams and is also compatible with multi-brand video encoders, It supports switch up to 4 channels decoding. -
Page 6: Features
Operating Instruction 5. FEATURES Support RTSP/HTTP TS/HTTP FLV/RTMP/UDP Input and HTTP PTE decoding protocols. Support H.265/H.264 Video decoding. Support HDMI /VGA/CVBS/3.5mm L/R Audio output. Support max 4 channels of video stream decoding. Support output video resolution setting. ... -
Page 7: Operation Controls And Functions
Operating Instruction 7. OPERATION CONTROLS AND FUNCTIONS 7.1 Front Panel ① Indicator of signal input ② Indicator of Lan input ③ Indicator of power input 7.2 Rear Panel ① Reset button ② Audio Output ③ CVBS Output ④ VGA output ⑤... -
Page 8: Connection Diagram
Operating Instruction 8. CONNECTION DIAGRAM... -
Page 9: System Setting
Operating Instruction 9.SYSTEM SETTING 9.1 Change the IP Address of PC Assign the PC (or laptop) IP address on the computer: “Control Panel”→ “Network Connections”→ “Local Area Connections Status”→ “Properties”→ “Internet Protocol (TCP/IP)”→Type the IP address with 192.168.1.XX (0-254) and Subnet mask with 255.255.255.0. After that press OK to save the configuration. -
Page 10: Login Of Configuration
Operating Instruction 9.2 Login for configuration Enter the unit IP 192.168.1.169 on browser, to open the web GUI. Login with default user name and pass word: admin. Like below, into the home page. 9.3 Check the Status The status display column is divided into two modules: “System Status” and “Channel 1-4 Play Status”. -
Page 11: Decoder Setting
Operating Instruction 9.4 Decoder Setting 9.4.1 Address Setting Click Address setting→Select decode wndnum from channel 1 to 4→Fill in stream address→Select Audio→Click Apply... -
Page 12: Network Setting
Operating Instruction 9.4.2 Network setting Click Network setting→Setting the parameters→Click apply Default DHCP closed, IP address: 192.168.1.169, subnet mask: 255.255.255.0, default gateway: 192.168.1.1 9.4.3 Password Setting Click Password setting→Setting the parameters→Click apply... -
Page 13: Output Setting
Operating Instruction 9.4.4 Output Setting Click Output setting→Setting the parameters→Click apply 10. OSD Setting Click OSD setting→Slecet status from region 1 to 4 →Setting the Parameters→Click apply... -
Page 14: Crop Setting
Operating Instruction 11.Crop Setting Click Crop Setting→Enable the decode channel 1→Select coordinates value→Click Apply... -
Page 15: System Update
Operating Instruction 12. System Update Click System update→Select Related files→Click apply. 13. Reset Factory Defaults Click Reset Device→Click Reset→Click Apply... -
Page 16: Maintenance
Operating Instruction MAINTENANCE Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean this unit. PRODUCT SERVICE 1) Damage requiring service: The unit should be serviced by qualified servicpersonnel if: (a)The DC power supply cord or AC adaptor has been damaged; (b)Objects or liquids have gotten into the unit;...
