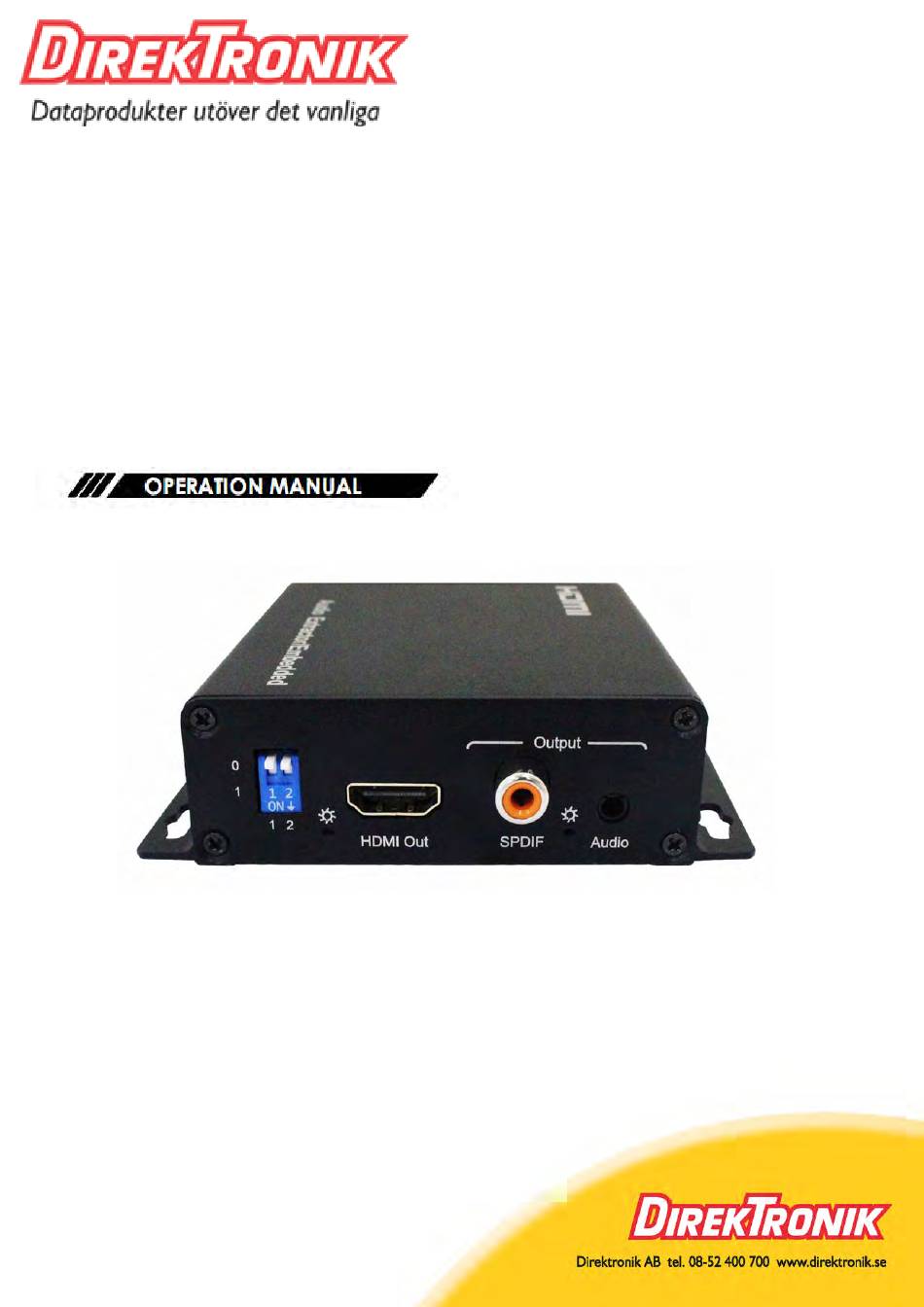

- Page 1 Best.nr: 20100547 HDMI2.0 Audio Inserter & Extractor, 4K@60Hz YUV4:4:4...
-
Page 2: Packing Contents
Operating Instructions Dear Customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. FEATURES Support audio embedding, AUTO, SPDIF5.1, Analog Audio PCM2.0 output ... - Page 3 Operating Instructions TABLE OF CONTENTS Specifications Panel Descriptions Connecting and Operating Application Diagram Maintenance Product service Warranty Specifications Operating Temperature Range -5 to +40℃(+23 to +104℉) Operating Humidity Range 5 to 90%RH (No Condensation) Input Video Signal 0.5-1.0 Volts P-P Input DDC Signal 5 volts p-p(TTL) 4Kx2K/1080P/1080i/720P/576P/576i/480P/480i...

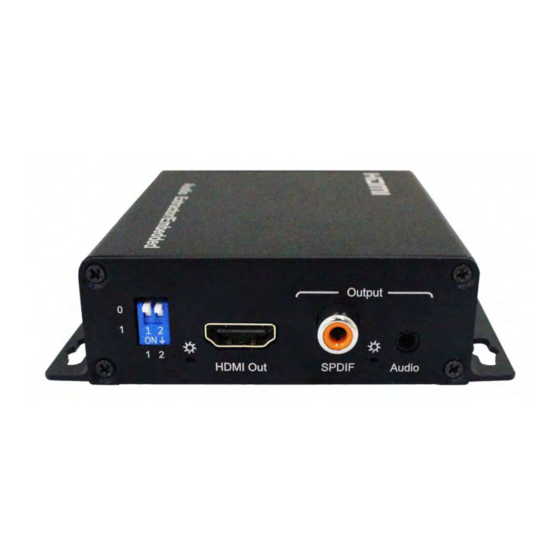

- Page 4 Operating Instructions PANEL DESCRIPTIONS Front Panel ① USB micro 5P port for upgrading the firmware. ④ HDMI input ② Audio Indicator ⑤ Power indicator ③ Audio input ⑥ DC5V Back Panel ① Audio configuration Configuration Audio Embedded PCM2.0 Audio Extraction 5.1 Audio Extraction SPDIF Audio output ④...
- Page 5 Operating Instructions Connecting and Operating 1) Connect the HDMI signal source (Such as PS3, STB etc) into HDMI input of 4K HDMI Audio Extractor & Embedded. 2) Connect the HDMI display device (such as: HD-LCD, HD-DLP) into HDMI output of 4K HDMI Audio Extractor & Embedded. 3) Connect Optical audio cable or RCA audio cable to Amplifier.
- Page 6 Operating Instructions MAINTENANCE Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean this unit. PRODUCT SERVICE 1) Damage requiring service: The unit should be serviced by qualified service personnel if: (a)The DC power supply cord or AC adaptor has been damaged; (b)Objects or liquids have gotten into the unit;...
- Page 7 Operating Instructions Mail-In Service When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the original carton. Include a letter detailing the complaint and provide a day time phone and/or email address where you can be reached. LIMITED WARRANTY LIMITS AND EXCLUSIONS 1) This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage.
