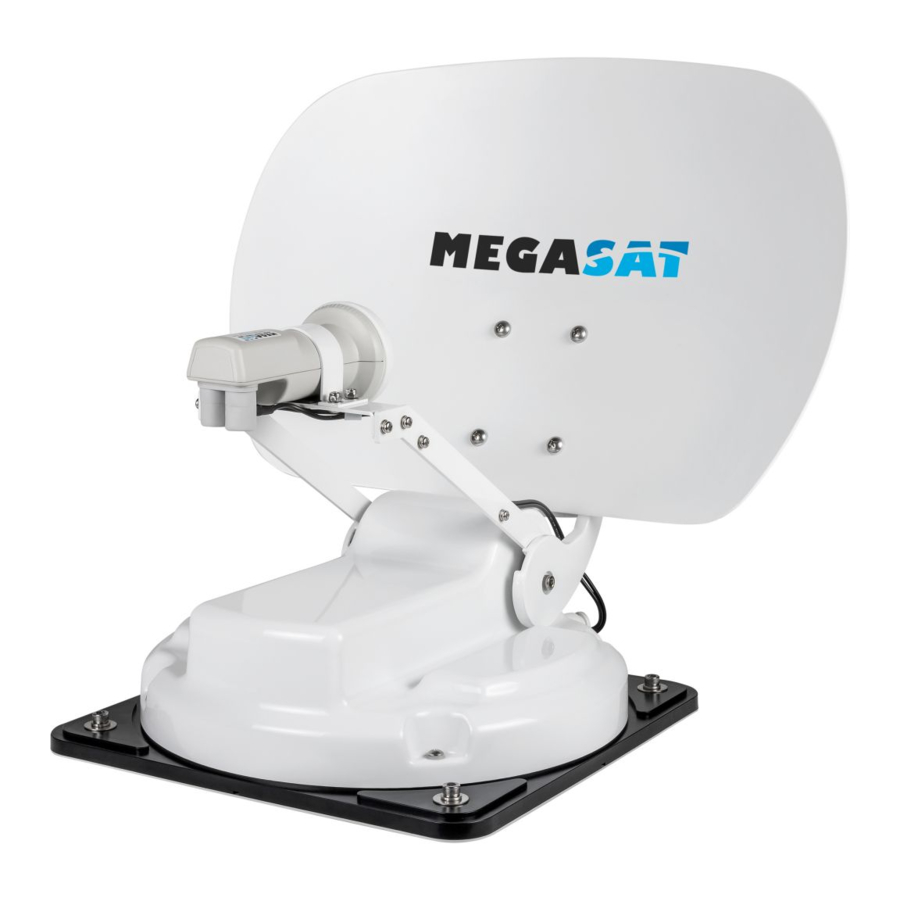

- Page 1 Machine Translated by Google Subscribe to DeepL Pro to translate larger Visit www.DeepL.com/pro for more info Caravanman Kompakt 3 User manual...
-
Page 2: Table Of Contents
Machine Translated by Google Content 1. Introduction 1.1 Safety information..................03 1.2 Scope of delivery....................03 1.3 System components...................04 2. Installation 2.1 Installation on the roof..................05 2.2 Instructions for gluing...................06 2.3 Internal installation...................07 2.4 Connection of components.... -
Page 3: Introduction
ÿ Do not let children play with films or other packaging materials, there is a risk danger. danger of suffocation. 1.2 Delivery ÿ 1x Caravanman Kompakt 3 ÿ Optional 1x control unit including power cable ÿ 1x coaxial accessories: cable (1 m) ÿ 1x coaxial Mobile set cable ÿ... -
Page 4: System Components
After successful adjustment, the device can turn off. Note: Caravanman Kompakt 3 Twin has an additional connection for a second TV or receiver. You can find the correct connection of the components in the wiring diagram in this user manual. -
Page 5: Installation
Machine Translated by Google 2. Installation 2.1 Installation on the roof We strongly recommend that the installation be carried out by your specialist dealer or specialist service! Also note that the height of the vehicle changes accordingly due to the antenna! Follow the individual points of the assembly instructions carefully! General information Provide a suitable workplace, a garage/hall is better than an outdoor area. - Page 6 Machine Translated by Google 2. Installation 5. Lightly roughen the drawn areas and the feet with sandpaper (120 grit) and clean the surface again with the cleaning agent and let the cleaning agent work for about 10 minutes. CAUTION: Do not touch the surfaces afterwards. 6.
- Page 7 ÿ Connecting the control unit to a TV or satellite receiver (1 m coaxial cable with F-plug from "RECEIVER" to satellite receiver) Note: Use the Caravanman Kompakt 3 Twin to connect the second coaxial cable from the antenna directly to the second TV or satellite receiver. ENGLISH...
-
Page 8: Connection Of Components
Machine Translated by Google 2. Installation 2.4 Connecting components Ignition plus After turning the key in the ignition, the antenna automatically moves to the inserted position. This function is guaranteed only if the control unit is switched on and cable 4 is connected to the negative pole and cable 5 to the positive of the vehicle ignition. - Page 9 Machine Translated by Google 2. Installation Television 2 Second connection only for Caravanman Kompakt 3 Twin. The coaxial cable is NOT included! Television 1 (-) (+) Control unit (+) (-) ENGLISH...
-
Page 10: Control Unit
Machine Translated by Google 2. Installation 2.5 Control unit Ready Current satellite Confirmation Satellite selection barbs regime Domestic Status LEDs position (retracts antenna) Connection for external Antenna connection power supply (optional) Power supply Connection to the TV / set (12V) top box Warning: Always connect the control unit using a 7 amp fuse cable with a thickness of at least 2.5 mm². - Page 11 Machine Translated by Google 2. Installing a car battery without a fuse. ENGLISH...
- Page 12 Machine Translated by Google 2. Installation 2.6 Satellite Broadcasting Direct Broadcast Service (DBS) satellites broadcast audio, video and data information from satellites located 22,000 miles in space. A receiving station, such as an antenna, should contain an antenna and a satellite receiver that receives the signals and processes them for use in consumer audio and video equipment.
- Page 13 Machine Translated by Google...
-
Page 14: Satellite Search Using The Control Unit 3.1 Designation Of
Machine Translated by Google 3. Satellite search using the control unit 3.1 Designation of relevant LEDs and buttons Search-LED Satellite LED Blinking during satellite search Astra 4 (4° East) Satellite LED Reception-LED Lights up when a satellite is found Hotbird (13° East) Satellite LED Error LED Lights up in the event of a fault... -
Page 15: Search
Machine Translated by Google 3. Satellite search using the control unit 3.2 Satellite search Turn on the control unit with the standby button. The LED blinks green during the search. The LED of the last used satellite flashes green. To change the satellite, you need to change it using the arrow keys. -
Page 16: Mobile Application For Antenna Control
Controller firmware updates can also be made in the future. The app is available for free in the App Store (iOS) or Google Play Store (Android). Look for the name "Megasat" in the relevant store . Note: Make sure the feature is enabled on your mobile device Bluetooth®... - Page 17 Machine Translated by Google 4. Mobile application for antenna control 3. Various options are now available in the main application interface: CARAVANMAN COMPACT 3 Antenna firmware update Change of satellites Bluetooth® Disconnecting the connection ENGLISH...
- Page 18 Machine Translated by Google 4. Mobile application for antenna control 4.2 Antenna Firmware Update 1. Click the button to open the update menu. CARAVANMAN COMPACT 3 2. The application will check if it is newer firmware versions currently available: data from the server... CARAVANMAN COMPACT 3 3.
- Page 19 Machine Translated by Google 4. Mobile application for antenna control 4.3 Change satellite 1. Click the button to open list of satellites. 2. Select the desired satellite. After approximately 3-5 seconds, the satellite will be searched for automatically. AS1 Astra 1 (19.2° East) AS2 Astra 2 (28.2°...
- Page 20 Machine Translated by Google 5. Problem solving No satellite signal Objects such as trees, bridges and large houses located in the angle of incidence of the satellite cause signal loss. If the satellite signal is lost due to adverse weather conditions, the current program of the TV or receiver will be interrupted (the image will be pixelated, frozen or disappear).
- Page 21 Machine Translated by Google 6. Einstellwerte für den Skew Skew-Einstellungswerte für europäische Hauptstädte Signals in vertikaler (rot) und horizontaler 0° (blau) Linie haben einen Versatz von genau 90° zueinander. Durch die unterschiedliche Position der Satelliten, abhängig von Ihrem Standort, ist es möglich, dass die Signale nicht genau vertikal und horizontal auf den +90°...
- Page 22 Machine Translated by Google Austria Vienna -3.4 +0.7 +4.5 +3.0 +10.2 +15.0 +32.9 +18.0 ENGLISH...
- Page 23 Machine Translated by Google...
-
Page 24: Footprint
Machine Translated by Google 7. Footprint Astra 1 Hotbird Note: Interference may occur in remote areas of the track. ENGLISH... - Page 25 Machine Translated by Google 8. Mounting dimensions Driving direction Maximum range rotation A turning point 31 cm 77 cm ENGLISH...
-
Page 26: Specifications
Machine Translated by Google 7. Specifications Off-Set-dish Antenna type 1 (Caravanman Kompakt 3) Number of users 2 (Caravanman Kompakt 3 Twin) Universal LNB LNB type Ku-Band Frequency band Frequency range 10.7 GHz to 12.75 GHz 33 dBi LNB amplification 49 dBW... - Page 27 Machine Translated by Google Compliance information Megasat Werke GmbH hereby declares that the following product complies with the essential requirements and other relevant provisions of Directives 2014/30/EU (EMC), 2014/35/EU (LVD) and 2014/53/EU (RED): Megasat Caravanman Kompakt 3 (Art-No. 1500192) Megasat Caravanman Kompakt 3 (Art-No.
- Page 28 Machine Translated by Google PRODUCT REGISTRATION By registering a Megasat product, you get access to our automatic email alerts. If your product requires new firmware, you will be notified by email. To register, please visit our homepage www.megasat.tv. You can find the form in the Product Registration Support section Version: 1.1 (December 2021)
