- Page 2 Parts Page TORQUE SETTING ITEM in.-lbs. (Nm) 55 - 65 (6.2 - 7.3) 16 - 20 (1.8 - 2.3) 60 - 72 (6.8 - 8.1) 30 - 35 (3.4 - 3.9)
- Page 3 ASSEMBLY FOR PLANETARY SPINDLE ( 1/4-20 UNC-2B ) PLANETARY SPINDLE BEARING KIT BEARING SPACER BEARING RETAINING RING RETAINING RING THROTTLE LEVER FOR Mirka 3,000 rpm LEVER SPRING PIN GRIP 65mm (2 1/2 in.) GRIP 70mm (2 3/4 in.) GRIP 75mm (3 in.) SPEED VALVE KIT VALVE SLEEVE...
- Page 4 Spare Parts Kits MPA0797 Muffler Kit MPA2226 Planetary Spindle Bearing Kit Code: 8993017311 Code: 8994222711 Scaled 50% MPA0798 Air Inlet Kit MPA0799 Endplate Bearing Kit MPA0994 Cylinder & O-ring Kit Code: 8993019811 Code: 8993009211 Code: 8993018811 Scaled 50% MPA0801 Rotor, Vanes & Key Kit MPA0800 Speed Valve Kit MPA0988 CV Swivel Fitting Kit Code: 8993019011...

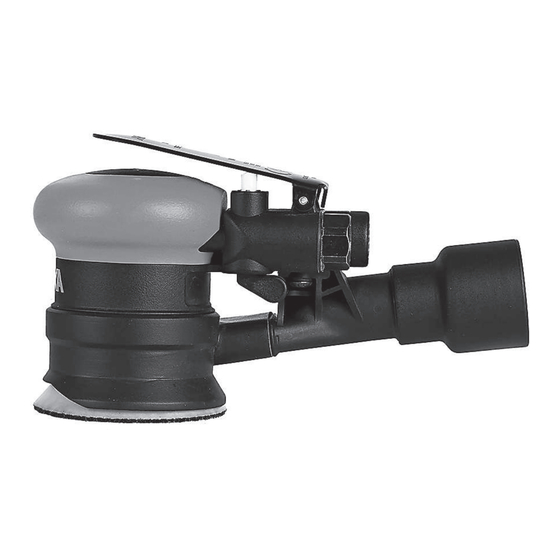

- Page 5 RPS 300CV 77 mm Polisher & Sander Declaration of conformity Mirka Ltd. FI-66850 Jeppo, Finland declare on our sole responsibility that the product 77 mm )3”( 3,000 rpm Rotary Polisher & Sander )see “Product Configuration/Specifications” table for particular model( to which this declaration relates is in conformity with the following standard)s( or other normative document)s(: EN ISO 15744:2008.
- Page 6 Putting the Tool into Service Use a clean lubricated air supply that will give a measured air pressure at the tool of 6.2 bar )90 psig( bar when the tool is run- ning with the lever fully depressed. It is recommended to use an approved 10 mm )3/8 in.( x 8 m )25 ft( maximum length airline.
- Page 7 Mirka Ltd. cannot be held responsible for the consequences of using declared values instead of actual exposure values for any individual risk assessment.
