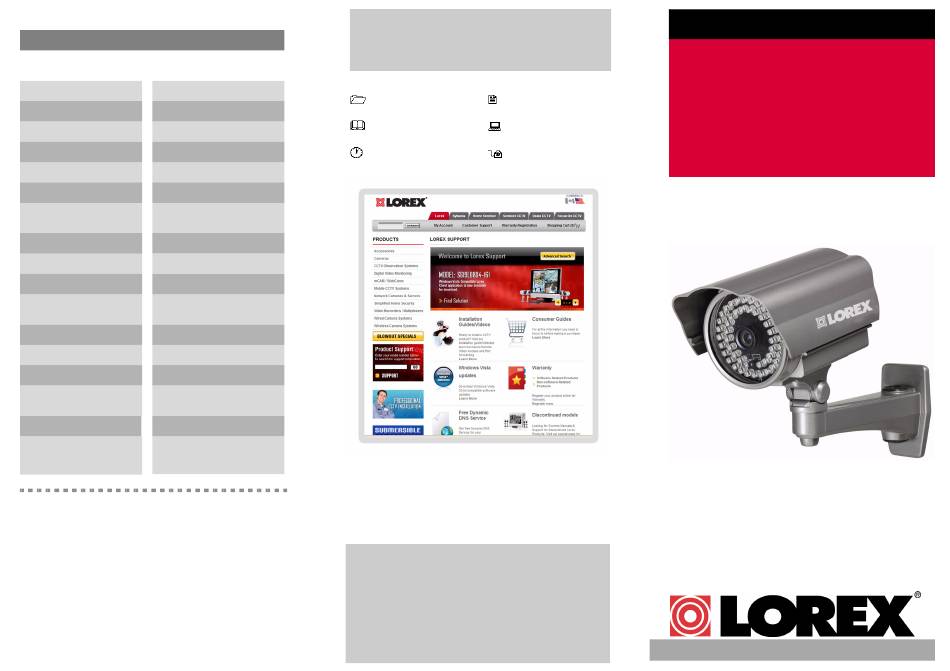

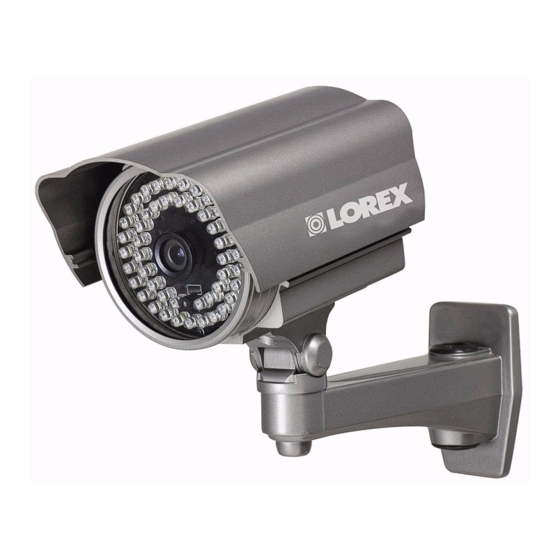

Lorex CVC6998HR Quick Start Manual

Camera Specifications

Specfications:
Image Sensor 1/4" Advanced Color
Video Format / Pixels NTSC: 656(H) x 492 (V)
Horizontal Resolution 480 TVL
Internal; 2:1 Interlace
Sync. & Scan. Systems
S/N Ratio > 48dB
Iris & Shutter Speed AES; 1/60 ~ 1/50,000 sec.
Minimum Illumination 0.6 LUX @ F1.2 (IR Off)
0 LUX (IR LEDs ON)
Video Output Comp. 1.0 Vpp @ 75ohm
Lens / Lens Mount 8.0mm F2.0/ Fixed
FOV (diagonal) 36 Degrees
Termination Video: BNC Female
Power: Barrel Female
IR / Night Vision Range 48 IR LED/850nm/150'(46m)
Power Requirement 12V DC ±10%
Power Consumption 400mA max
Operating Temp. 14°F ~ 122°F
(-10°C ~ 50°C)
Weight (with stand) 2.65 lbs / 1.20 kg
Dimensions 9.8" x 3.9" x 7.3"
LxWxH 250 mm x 100 mm x 186 mm
(with stand & sunshade)

Precautions

• Use a UL/CSA Approved, regulated 12V DC
Power Supply.
• Make sure to install the camera in an area that
can support the camera weight.
• There are no user serviceable parts inside the
camera. Please do not disassemble the camera.
• Do not clean the lens cover with an abbrasive
cleaning material - please use a soft cloth to clean
the lens cover.
