Integral LED ILEMPK010 Installation Instructions page 2

INSTALLATION GUIDE

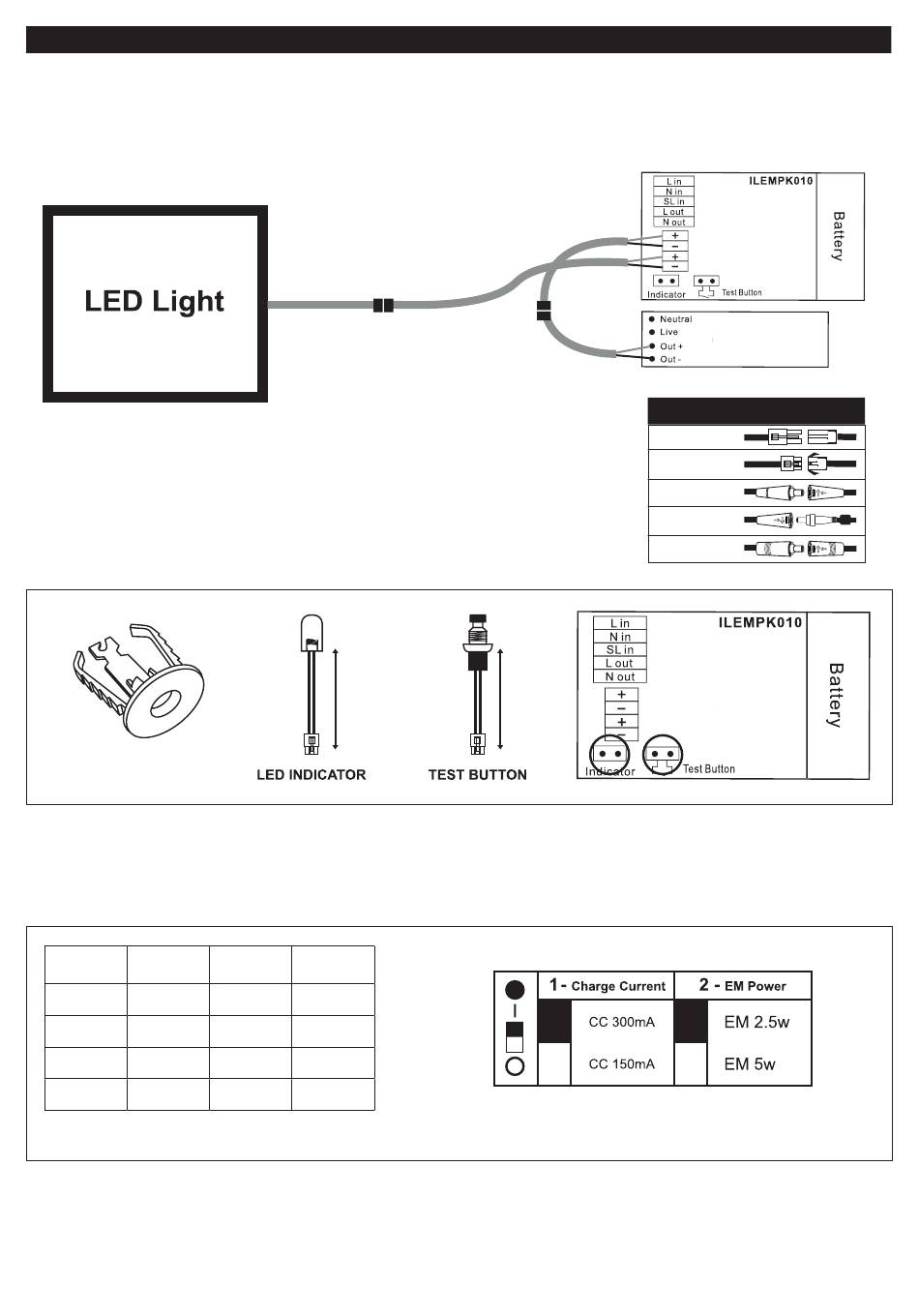

STEP 1 - Connect LED Light and LED Driver to EM converter.
Choose a suitable connector kit for edge-lit panels or downlights (see compatible cable)
and connect the LED light, LED Driver and EM converter as shown below.
STEP 2 - Connect LED charge indicator and test button.
An emergency LED indicator with mount and a test button are included in the kit.
Please connect them as indicated in the drawing below.
RECESSED MOUNTING
FOR CHARGE LED
STEP 3 - EM power and charge current selection
Position the 2 switches according to the emergency power and charge current desired.
Please use the table bellow for guidance.
Charge
EM power
current
2.5W 150mA
2.5W 300mA
5W 150mA
5W 300mA
Please follow the table above to select the desire EM light
duration and charge time.
* Please note that in accordance with BS 5266-1 9.1 three hour duration is recommended unless evacuation is immediate in a supply failure and re-occupation is delayed until the system has
fully recharged in which one hour duration may be used.
version 5
50cm
Charge EM Light
time duration
24hr 3hr
16hr 3hr
24hr 1.5hr
16hr 1.5hr
Warranty/technical and contact information are all available at www.integral-led.com
Red
Black
Red
Black
Red
Black
LED Driver
LED Driver
LED Driver
50cm
LED Driver
LED
LED
.
*
Note: For 3hr emergency light duration and shorter charging time
please put switches 1 and 2 in the up position.
LED Driver
LED Driver
LED Driver
LED Driver
LED
LED
LED Driver
CONNECTOR KIT
ILEMAK015
ILEMAK012
ILEMAK013
ILEMAK016
ILEMAK025
