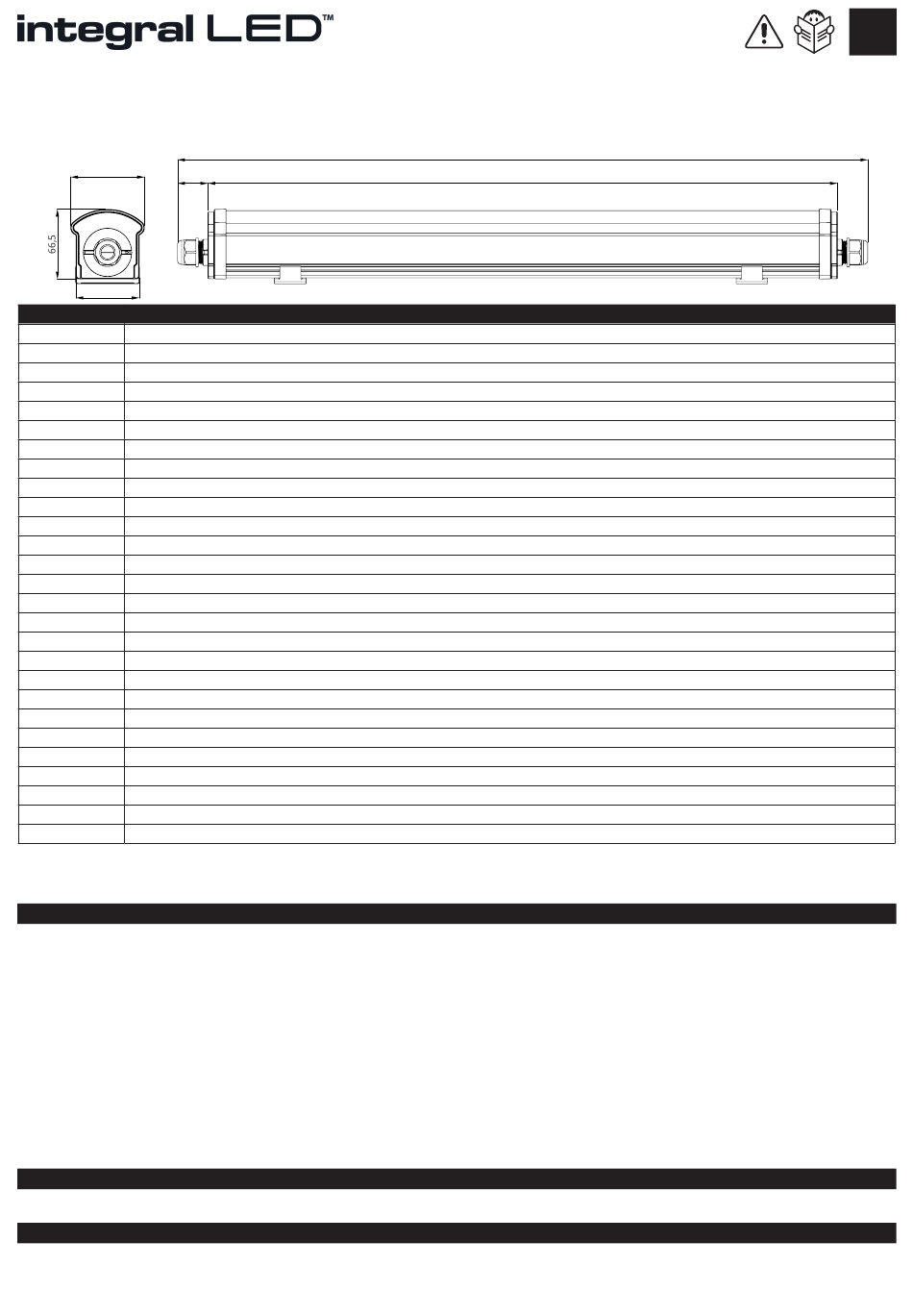

Integral LED ILBTX001 Installation Instruction

70,5
29
6
8
60,5
Product code
ILBTX001
ILBTX002
ILBTX003
ILBTX004
ILBTX005
ILBTX006
ILBTX007
ILBTX008
ILBTX009
ILBTX021
ILBTX022
ILBTX023
ILBTX024
ILBTX025
ILBTX026
ILBTX027
ILBTX028
ILBTX029
ILBTX041
ILBTX042
ILBTX043
ILBTX061
ILBTX062
ILBTX063
ILBTX081
ILBTX082
ILBTX083
Thank you for purchasing an INTEGRAL LED product. When installed correctly this unit will provide years of service – with no lamp
changes required. For support or warranty information please see integral-led.com. Always turn off circuit power at the distribution
unit before installation and maintenance. Please ensure that the power cannot be connected inadvertently.
Important Details – Please read prior to installation
Ensure the AC/Mains power is NOT connected and cannot be unexpectedly reconnected during installation.
1. This product must be installed by a qualified electrician in accordance with instructions provided and in compliance with recognised
electrical and safety regulations relevant to the country it is being installed.
2. This product is suitable for installation on surfaces with normal flammability e.g. wood, masonry. It is not suitable for use on highly
flammable surfaces or in flammable atmosphere.
3. This product must be securely fixed to the mounting surface using the fixings clips, screws and wall plugs supplied.
The screws and wall plugs are suitable for "masonry" only. Other fixings are not supplied and must be purchased.
4. Please use the cable gland supplied in the box if the LED batten is required to be linked.
5. Connect the power lead to a suitable junction box to maintained IP rating.
6. Recommended cable H05RN-F 3x1.00mm².
7. Please use the protective cover on any unused connector.
8. Maximum no of units in series is 10 using recommended cable.
9. This product is not suitable for dimming.
IMPORTANT! This product is a Class II device. However an earth connection is required.
Warranty
This unit carries a 5 year warranty from the date of purchase, providing that it has been installed correctly and not modified in any way. Should a
fault occur please contact the original place of purchase.
Important Notes
Operating and storage of luminaire must be within rated temperature and humidity guidelines. Operation must be within rated input voltage.
• Keep away from strong electromagnetic radiation sources and protect from lightning strike.
• Should the unit malfunction, return to distributor or reseller. No user serviceable parts inside. Risk of electric shock, do not disassemble or
INSTALLATION INSTRUCTION
Integral LED Toughshell+ IP66 batten
5 Year Warranty
4FT 20W 3000LM 4000K 120° 150lm/W Non-Dimmable
5FT 30W 4500LM 4000K 120° 150lm/W Non-Dimmable
6FT 35W 5250LM 4000K 120° 150lm/W Non-Dimmable
4FT EM3HR 20W 3000LM 4000K 120° 150lm/W Non-Dimmable
5FT EM3HR 30W 4500LM 4000K 120° 150lm/W Non-Dimmable
6FT EM3HR 35W 5250LM 4000K 120° 150lm/W Non-Dimmable
4FT MW 20W 3000LM 4000K 120° 150LM/W Non-Dimmable
5FT MW 30W 4500LM 4000K 120° 150LM/W Non-Dimmable
6FT MW 35W 5250LM 4000K 120° 150LM/W Non-Dimmable
4FT 38W 5700LM 4000K 120° 150LM/W Non-Dimmable
5FT 53W 7950LM 4000K 120° 150LM/W Non-Dimmable
6FT 60W 9000LM 4000K 120° 150LM/W Non-Dimmable
4FT EM3HR 38W 5700LM 4000K 120° 150LM/W Non-Dimmable
5FT EM3HR 53W 7950LM 4000K 120° 150LM/W Non-Dimmable
6FT EM3HR 60W 9000LM 4000K 120° 150LM/W Non-Dimmable
4FT MW 38W 5700LM 4000K 120° 150LM/W Non-Dimmable
5FT MW 53W 7950LM 4000K 120° 150LM/W Non-Dimmable
6FT MW 60W 9000LM 4000K 120° 150LM/W Non-Dimmable
4FT 20W 3000LM 3000K to 5700K 120° 150LM/W Non-Dimmable
5FT 30W 4500LM 3000K to 5700K 120° 150LM/W Non-Dimmable
6FT 35W 5250LM 3000K to 5700K 120° 150LM/W Non-Dimmable
4FT 38W 5700LM 3000K to 5700K 120° 150LM/W Non-Dimmable
5FT 53W 7950LM 3000K to 5700K 120° 150LM/W Non-Dimmable
6FT 60W 9000LM 3000K to 5700K 120° 150LM/W Non-Dimmable
4FT 26W/32W/38W - 3900LM/4800LM/5700LM 4000K 120° 150LM/W Non-Dimmable
5FT 43W/49W/53W - 6450LM/7350LM/7950LM 4000K 120° 150LM/W Non-Dimmable
6FT 48W/54W/60W - 7200LM/8100LM/9000LM 4000K 120° 150LM/W Non-Dimmable
658/1258/1558/1858
600/1200/1500/1800
Description
EN
