Integral LED ILDEA030 Installation Instruction

Thank you for purchasing an INTEGRAL LED product. When installed correctly this unit will
provide years of service. For support or warranty information please see integral-led.com.
Important Details – Please read prior to installation
1. I nstallation must be completed by a qualified electrician in accordance with all recognised local and national
electricalandconstructionregulations.
2.EnsurethatthepowerisOFFduringinstallationandthatpowercannotbeunexpectedlyreconnected.
3.Thelightfittingisdesignedtooperatewitha220-240V50Hz/60Hzelectricitysupply.
4.DoNOTusetheluminaireifdamaged
5.Whereapplicable,considerationshouldbetakentoensureallfixingsareofsuitablesizefortheluminairetobe
installed.
6. T his luminaire is rated at IP54, suitable for residential outdoor areas such as the garden, porch, garage and
driveway.  NOT suitable for water immersion.  When installing the product ensure the supplied grommets and
glandsareusedtoprotecttheIPrating.
7.Donotcoverthelightsource.
8.Toavoiddamage,DONOTlift,carryorlettheluminairehangbyanypartofthewiring.
9.ThisproductisClassI–Earthconnectionrequired.
10. F ailuretocomplywiththerecommendationsandinstructionsprovidedhereinmaycausedamagetotheluminaire
orpresentariskofinjuryordeath(e.g.shortcircuit,fire,burnsorelectricshock).
11. A nymodificationstotheluminaire,incorrectinstallationorunfitpositioningmaybedangeroustousersandmay
causethewarrantytobecomevoid.

Installation Instructions

12.EnsurethatthepowerisOFFduringinstallationandthatpowercannotbeunexpectedlyreconnected.
13.FollowthestepsaslaidoutinFigures1to8
14. U se suitable tools and fixings to mount the luminaire safely and securely to the surface.  Depending on the
substratealternatefixingstotheonessuppliedmayberequired.
15.Avoidanydamagetoanywiring.
16. O ncethelightfittingbaseissecurelymounted,connectthemainssupplytotheconnector.Pleasepayattentiontothepolarity.
L=Live(Brown),N=Neutral(Blue),E=Earth(Green/Yellow).TheluminaireisaCLASSIdevice–anEARTHconnectionisMANDATORY.
NEUTRAL = BLUE LIVE = BROWN
INSTALLATION INSTRUCTION

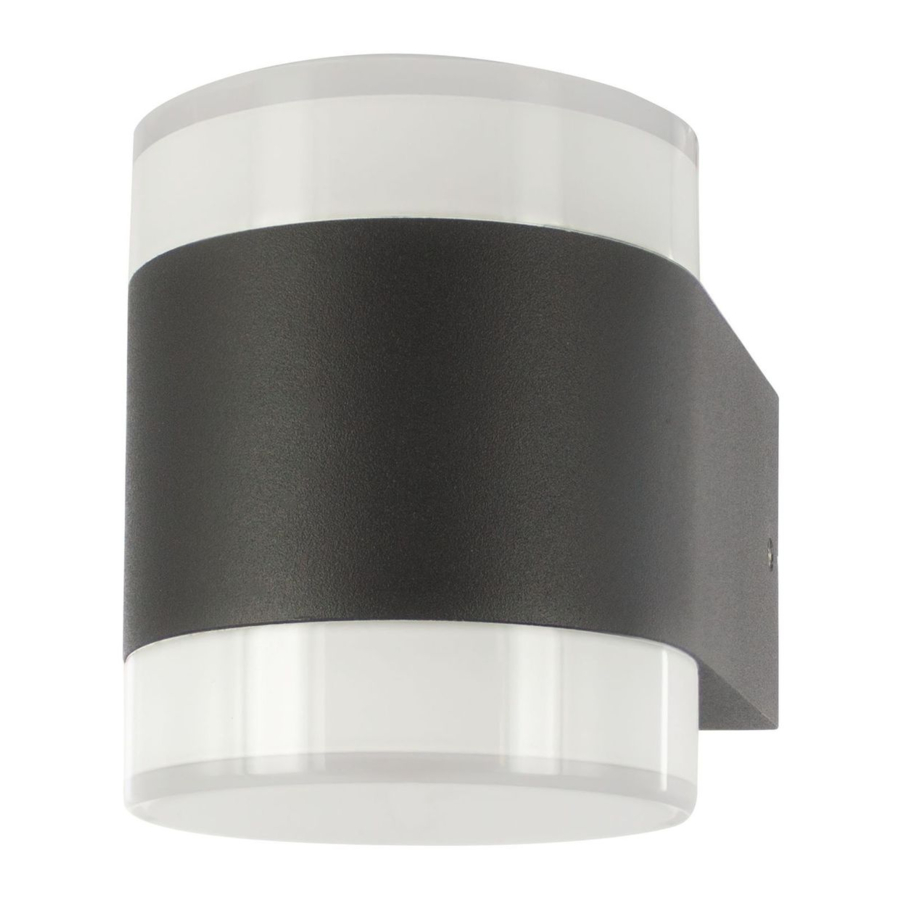

LumiDisc Wall Light
Product Code 6 Digit Code
ILDEA030 47-89-91
GREEN/YELLOW = EARTH
Wattage Lumens Output
8.4W 350LM
EN
