DO NOT CONNECT THE LED STRIP DIRECTLY TO A MAINS POWER SUPPLY. THE LED STRIP MUST ONLY BE
CONNECTED TO A SUITABLE 24V LED DRIVER. SWITCH OFF THE MAINS POWER BEFORE INSTALLING THE LED STRIP
IMPORTANT NOTICE
• A qualified electrician should install this product in accordance with this guide
• All electrical work must be completed in accordance with all applicable regulations and laws in the country in which it is installed.
(including IET wiring regulations for the UK)
• Switch OFF the power at the mains before installing or cutting the strip. Do NOT power the strip whilst in its packaging reel.
• The LED strip must only be installed in sheltered areas (indoor or outdoor). The unit is protected against water jets and dust.
Not suitable for water immersion.
• When turned ON, avoid staring directly at the LED strip.
• Observe the operating temperature -25° C to +60° C.
• This product is electrical Class III. A Class III appliance is designed to be supplied from a Safety Extra Low Voltage (SELV).
• Observe the correct polarity for 24V connections, Positive (+ RED) and Negative (– BLACK)
• Safely route and secure all wires so they cannot be damaged.
• Do NOT twist or heavily press down on the LED strip.
CHOOSING A 24V LED DRIVER
• This product is a 24V DC supply LED strip and requires a 24V DC CV Constant voltage LED driver to be specified for operation. LED
drivers are sold separately and are available in various wattages.
• The driver's specification required will depend on the total power requirement of the connected strip(s). The power output of the
driver (wattage rating) must be at least 20% higher than the total required wattage of the LED strip(s) being powered.
For example, this 5M strip is 18W/metre – the total power requirement is 90W (5 X18W). The power rating of the driver should
be a least 20% above 90W, a minimum of 108W (90W X 1.20). So a 150W driver will be suitable for 5M.
• Ensure the LED driver specification and the IP rating is correct for your application

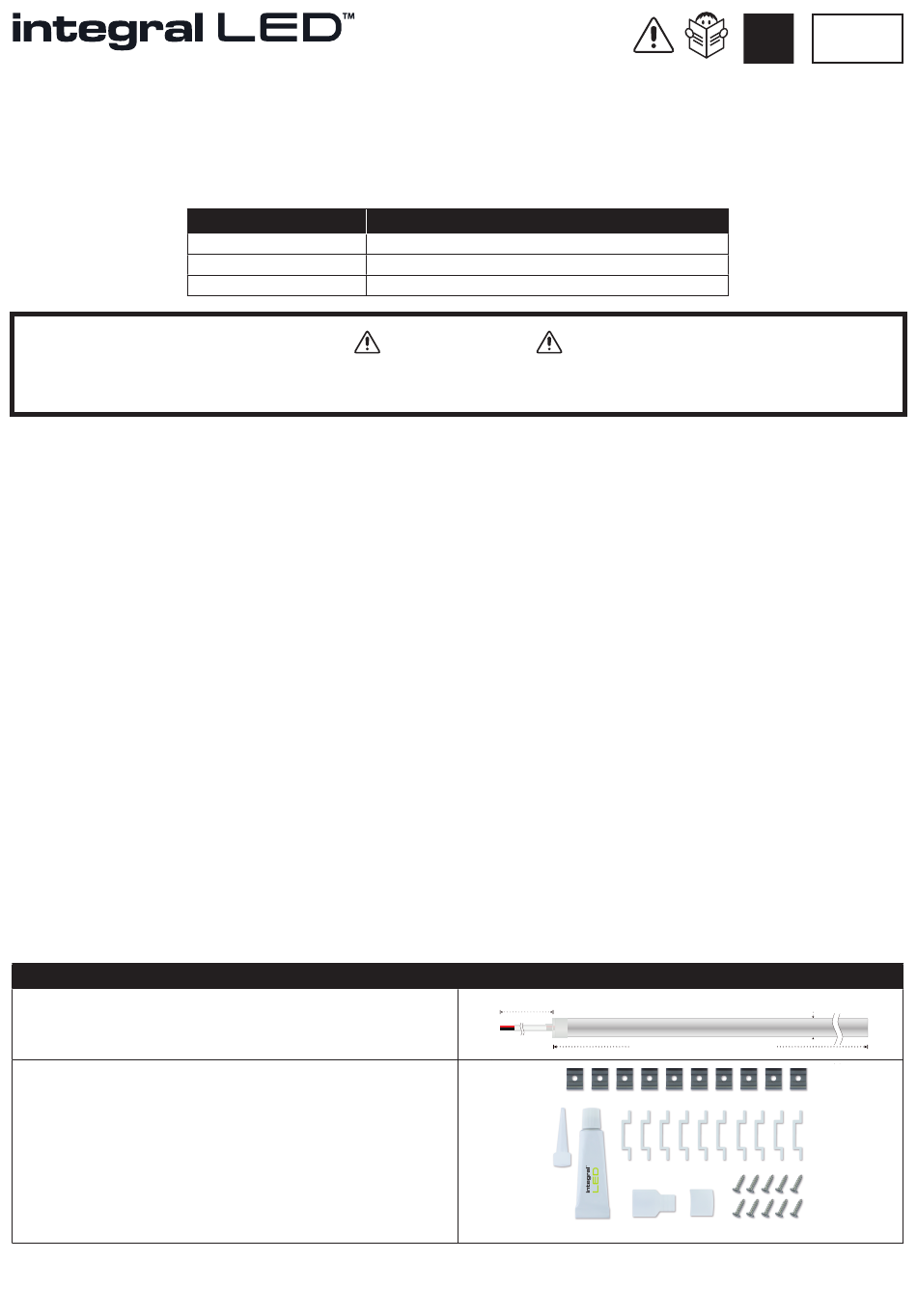

IN THE BOX
1 x 5M ±5cm IP65 INTEGRAL Spotless Neon Flex on reel
pre-fitted with an appropriate connector at both ends to
connect to a suitable power supply.
Accessories for IP65 Spotless Neon Flex LED strip
10 x Metal mounting clips + 10 screws
10 x Plastic mounting clips (alternative or additional fixing method)
1 x sealed end cap + 1 end cap with cable entry + 1 tube of silicone
(to make a corner using the end of the strip, which is also pre-fitted
with a connector wire. A cut length can also be terminated using the
sealed end cap. Depending on your installation, you can purchase
optional or additional accessories such as an IP65 kit
INSTALLATION INSTRUCTION
Spotless Neon Flex LED Strip IP65
3 Year Warranty
Product code
ILSTWHIB082E
ILSTWHIB083E
ILSTAB130
WARNING
6-Digit code
46-69-46
56-50-10
10-51-25
In the box
350mm
EN
13mm Wide
5030mm Total Length (Strip and end caps)
7mm (0.27") High
IP65
