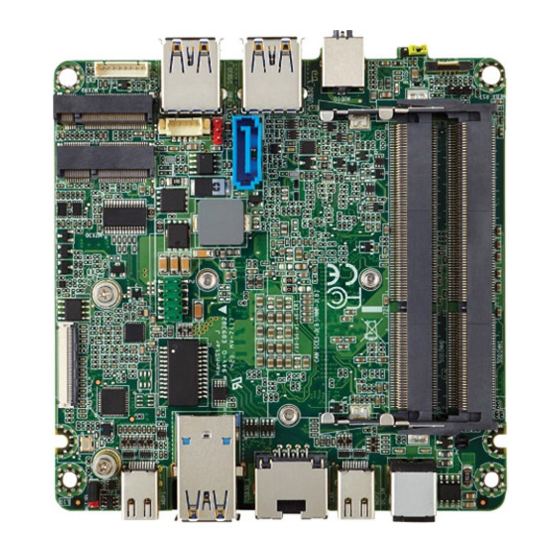

Intel® NUC Board NUC5i5MYBE
Technical Product Specification
May 2017
Order Number: H67541-008
Intel® NUC Board NUC5i5MYBE may contain design defects or errors known as errata that may cause the product to deviate from published
specifications. Current characterized errata, if any, are documented in Intel NUC Board NUC5i5MYBE Specification Update.
