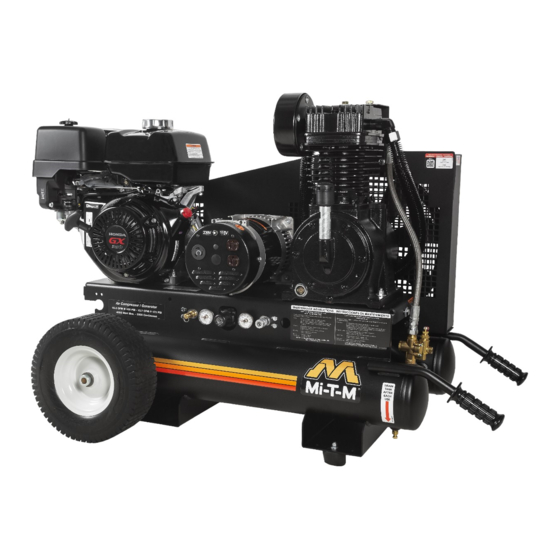

- Page 1 AIR COMPRESSOR/GENERATOR OPERATOR’S MANUAL PARTS LIST CAUTION RISK OF INJURY! READ ENTIRE MANUAL BEFORE OPERATING! THIS MANUAL IS AN IMPORTANT PART OF THE AIR COMPRESSOR/GENERATOR AND MUST REMAIN WITH THIS UNIT! ©Copyright 2005, Mi-T-M Corporation® 37-0945-E/F/S-012023 Operator’s Manual...
- Page 2 INTRODUCTION THANK YOU for purchasing a Mi-T-M product. The SERIAL NUMBER is located in the Specification or Identification Numbers section. Accurately record all the READ THIS MANUAL carefully to learn how to operate numbers to help in tracing the machine should it be stolen.
-
Page 3: Table Of Contents
CONTENTS Page Safety ................ 5 Safety Signs ............14 Controls ..............15 Installation .............. 16 Operation ..............20 Troubleshooting ............. 23 Maintenance ............25 Storage ..............29 Specifications ............30 Warranty ..............31 ALL INFORMATION, ILLUSTRATIONS AND SPECIFICATIONS IN THIS MANUAL ARE BASED ON THE LATEST INFORMATION AVAILABLE AT THE TIME OF PUBLICATION. - Page 4 CONTENTS Operator’s Manual...
-
Page 5: Safety
SAFETY RECOGNIZE SAFETY INFORMATION This is the safety alert symbol. When you see this symbol on your machine or in this manual, be alert to the potential for personal injury. Follow recommended precautions and safe operating practices. UNDERSTAND SIGNAL WORDS A signal word--DANGER, WARNING or CAUTION--is used with the safety-alert symbol. - Page 6 CARBON MONOXIDE - POISONOUS GAS Use unit outdoors, away from open windows, vents, or doors. Unit exhaust contains carbon monoxide - a poisonous gas that can kill you. You CAN NOT smell or see this gas. Never use the unit in enclosed or partially-enclosed spaces. The unit can produce high levels of carbon monoxide very quickly.
- Page 7 SAFETY WARNING WHEN REFUELING Injury or death may occur as a result of improper fueling. Do not smoke while filling engine fuel tank. Always refuel slowly to avoid the possibility of spilled fuel which may cause a risk of fire. Gasoline is extremely flammable and its vapors can explode if ignited.
- Page 8 ELECTRICAL HAZARDS This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. DANGER - IMPROPER CONNECTION OF THE EQUIPMENT- GROUNDING CONDUCTOR CAN RESULT IN A RISK OF ELECTROCUTION.
- Page 9 RISK OF FIRE OR EXPLOSION Serious injury or death may occur from normal sparks in the engine igni- tion system or engine exhaust/muffler. Always operate the unit in a well ventilated area free of flammable vapors, combustible dust, gases or other combustible materials.
- Page 10 RISK OF BREATHING Serious injury or death could occur from inhaling compressed air. The air stream may contain carbon monoxide, toxic vapors or solid particles. Never inhale air from the unit either directly or from a breathing device connected to the unit. Serious injury or death may occur from inhaling engine exhaust.
- Page 11 IMPORTANT SAFETY INSTRUCTIONS WARNING: TO REDUCE THE RISK OF INJURY, READ THIS OPERATOR’S MANUAL COMPLETELY BEFORE USING. WHEN USING THIS PRODUCT, THE FOLLOWING BASIC PRECAUTIONS SHOULD ALWAYS BE FOLLOWED: 1. Risk from Negligence: Risk of injury from negligent use. Never allow children or adolescents to operate this unit! Stay alert-watch what you are doing.
- Page 12 WEAR PROTECTIVE CLOTHING Wear close fitting clothing and safety equipment appropriate to the job. Wear a suitable hearing protective device such as earmuffs or earplugs to protect against objectionable or uncomfortable loud noises. Operating equipment safely requires the full attention of the operator. Do not wear radio or music headphones while operating machine.
-
Page 13: Safety Signs
SAFETY SIGNS MAINTENANCE INSTRUCTIONS INSTRUCCIONES DE MANTENIMIENTO WARNING/ADVERTENCIA REFER TO INSTRUCTION MANUAL FOR LEA LAS INSTRUCCIONES PARA INSTRUCCIONES RIESGO DE QUEMAR RISK OF BURNS DETAILED INSTRUCTIONS. PARTICULARES. El amortiguador y las areas Muffler and adjacent If unit is operated in an excessively dirty or dusty area, increase Si la unidad está... -
Page 14: Controls
CONTROLS CONTROLS (8 GALLON) A -- Generator F -- Engine B -- Pump G -- Beltguard C -- Oil Sight Glass H -- Tank Drain Valve D -- Handle I -- Pressure Gauge E -- Fuel Tank Operator’s Manual... - Page 15 CONTROLS CONTROLS (30 GALLON) A -- Generator F -- Engine B -- Pump G -- Beltguard C -- Oil Sight Glass H -- Tank Drain Valve D -- Handle I -- Pressure Gauge E -- Fuel Tank Operator’s Manual...
-
Page 16: Installation
INSTALLATION INSTALLATION Read safety warnings before setting-up the unit. Ensure the oil level in the unit's pump is adequate. If low, add SAE-30W non- detergent oil. LOCATION: In order to avoid damaging the unit, do not incline the unit transversely or longitudinally more than 10°. - Page 17 2. Use an extension cord with a 3 hole receptacle and a 3 prong plug at the opposite ends to ensure continuity of the ground protection from the unit to appliance. Mi-T-M strongly recommend that all applicable federal, state and local regu- lations relating to grounding specifications be checked and followed. LINE TRANSFER SWITCH: If this unit is used for standby service, it must have a transfer switch between the utility power service and the unit.
- Page 18 INSTALLATION ENGINE Review "Risk of Fire or Explosion" before fueling. Read the engine manual accompanying this unit for correct engine start-up maintenance procedures. Read and understand the safety labels located on the unit. WARNING: RISK OF EXPLOSION OR FIRE CAUSING SERIOUS INJURY OR DEATH! DO NOT SMOKE WHILE FUELING! DO NOT FILL FUEL TANK WHILE THE UNIT IS RUNNING OR HOT.
- Page 19 INSTALLATION HIGH ALTITUDE At high altitude, the standard carburetor air/fuel mixture will be too rich. Performance will decrease, and fuel consumption will increase. A very rich mixture will also foul the spark plug on gasoline engines and cause hard starting. Operation at an altitude that differs from that at which this engine was certified, for extended periods of time, may increase emissions.
-
Page 20: Operation
OPERATION PRE-OPERATION: Check the engine oil level before starting. (See engine manual.) Fill the fuel tank according to the engine manual instruction. Pump oil level should be checked before each use. Check the oil level indi- cator on the pump crankcase. Make certain the oil is in the center of the oil sight glass. - Page 21 OPERATING THE UNIT CABLE SIZE: Equipment damage can result from low voltage. Therefore, to prevent exces- sive voltage drop between the unit and the equipment, the cable should be of adequate gauge for the length used. The cable selection chart gives the maximum cable lengths for various gauges of wire which can adequately carry the loads shown.
-
Page 22: Troubleshooting
Tighten bolts on compressor head to proper torque or replace gaskets. Air blowing from Air Intake Defective inlet (reed) valve. Contact your Mi-T-M customer service center. Filter. Moisture in discharge air. Condensation in air tank caused by Run the unit a minimum of one hour high level of atmospheric humidity or to prevent condensation buildup. - Page 23 Oil leaks. Tighten bolts on compressor to proper torque or re- place gaskets. Worn piston rings or scored Contact your Mi-T-M Customer service center. cylinder Oil has milky appearance Water in oil due to condensation. Change oil and move air compressor to a less humid environment.
-
Page 24: Maintenance
•• The engine oil must be changed after the first 5 hours of operation and every 50 hours or 3 months, whichever comes first. ••• Service more frequently under dusty conditions. Every 2 years, an Authorized Mi-T-M Service Technician should check the safety valve, intake valves and delivery valves. Operator’s Manual... - Page 25 MAINTENANCE ENGINE: The engine for this unit is governed to operate at speeds close to 3600 RPM (60Hz) throughout the operating load range. WARNING: DO NOT TAMPER WITH THE GOVERNOR MECHANISM, CHANGE THE SETTING EXPERIMENTALLY, OR PUSH THE THROTTLE OPEN IN AN ATTEMPT TO GENERATE MORE ELECTRICAL CURRENT;...
- Page 26 MAINTENANCE CLEANING AND GAPPING SPARK PLUG (GASOLINE ENGINES ONLY): If the plug is contaminated with carbon, remove it using a plug cleaner or wire brush. Spark Plug Gap Check the spark plug gap and reset it if necessary. The spark plug gaps are (See recommendations) listed below.
-
Page 27: Storage
STORAGE STORING UNIT SHORT TERM (1-6 MONTHS): 1. Add fuel conditioner & stabilizer at the specified concentration. 2. Run the unit for two (2) minutes to ensure the mixed fuel is in the entire fuel system. Close the fuel valve and run the unit until it stops. 3. -
Page 28: Specifications
SPECIFICATIONS ITEM SPECIFICATION *AG2-PH13-08M1 *AG2-PK14-08M1 *AG2-PM14-08M1 *AG2-PV14-08M1 *AG2-SH13-08M1 *AG2-SK14-08M1 *AG2-SM14-08M1 *AG2-SV14-08M1 **AG2-SH13-30M **AG2-SK14-30M **AG2-SM14-30M **AG2-SV14-30M Unit ***AG2-SH13-B ***AG2-SK14-B ***AG2-SM14-B ***AG2-SV14-B Engine Honda Kohler Mi-T-M Vanguard Oil (oz) 37 oz 44 oz 32 oz 32 oz Watts w/o Comp 3500 Watts w/ Comp... -
Page 29: Warranty
STATEMENT OF WARRANTY Mi-T-M warrants all parts, (except those referred to below), of your new unit to be free from defects in materials and workmanship during the following periods: For Two (2) years from the date of original purchase: Compressor Pump...
