U.S. Patent No.: 6,810,537, 7,089,607, 7,178,179
ASME/ANSI A112.19.8M—1987 LISTED
Notice to Installers:
Read and follow these instructions. Give these instructions to
the facility owner. Follow all codes and regulations that apply to
the design, installation and use of suction outlet fittings.
MDX0803
004-027-8754-00
295 East Corporate Place • Suite 100 • Chandler, AZ 85225
T oll Free: 1.800 . 621.5886 • Phone: 480.893.7607 • Fax: 480.753.3397
paramount@1Paramount.com • www.1Paramount.com

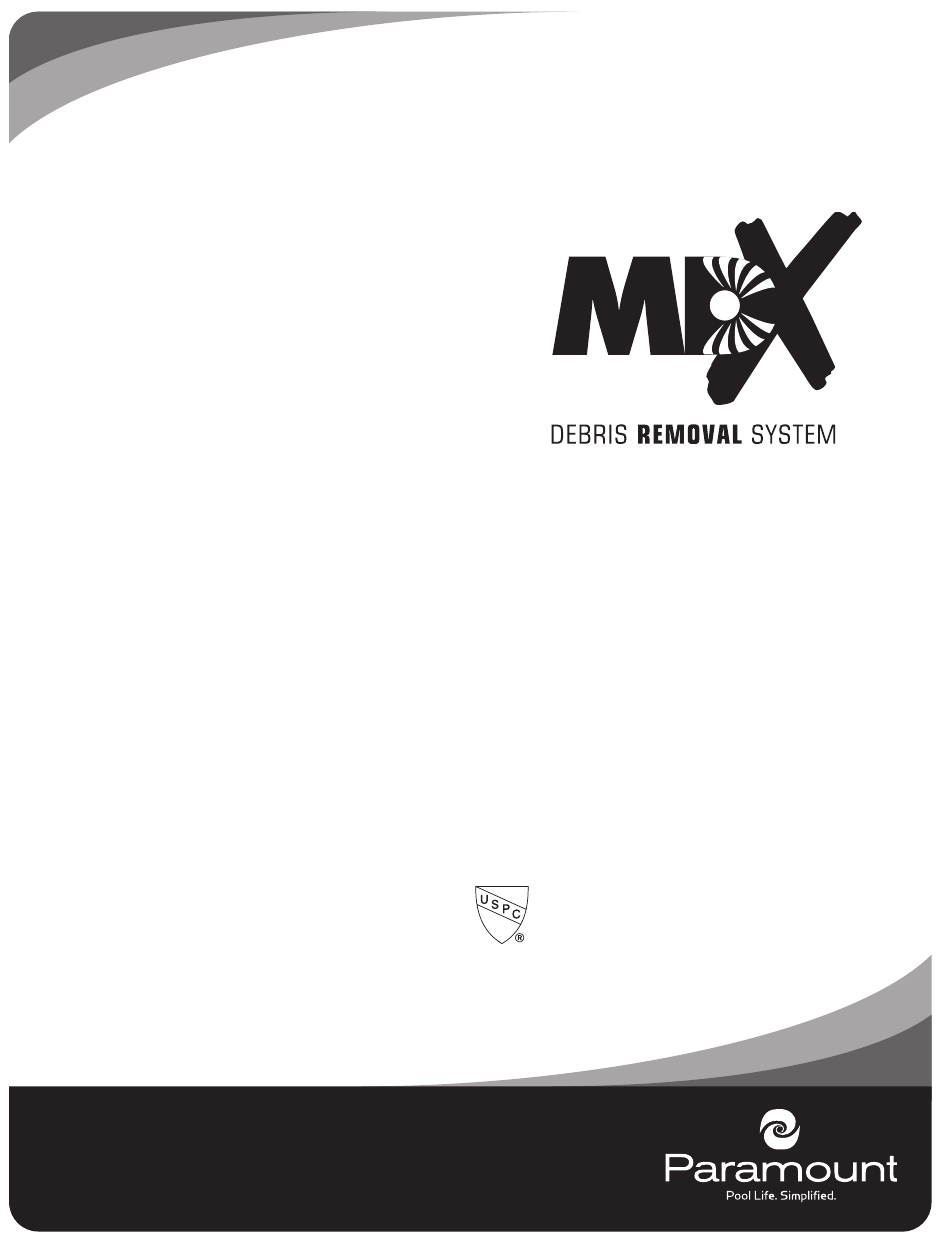

MDX DEBRIS REMOVAL SYSTEM MANUAL:
2/07
FOR THE STATE OF FLORIDA
MDX Installation Manual . . . . . . . . . . . . . . . . . . . . . . Page 1
MDX 1-Piece Sump Installation Manual. . . . . . . . Page 8
