- Page 1 S9110-32X 100G Data Center Switch Hardware Installation Guide R1.1...
-
Page 2: Table Of Contents
12 Cable Connections ......................22 Connecting the USB Cable ....................22 Connecting the OOB Management Cables ................22 Connecting the Management Cables .................. 23 Connecting the Transceivers ....................23 13 Cautions and Regulatory Compliance Statements .............. 24 S9110-32X Hardware Installation Guide | i... -
Page 3: Overview

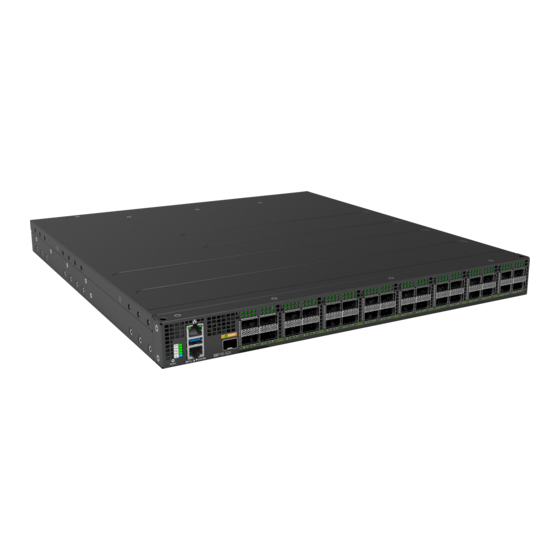

1RU form factor that helps reduce infrastructure and administrative costs. The S9110-32X is the epitome of future networking with a powerful 4-core processor and 32 high-speed 100G interfaces. It comes with redundant, hot swappable components for convenience, increased availability, reliability and lower costs of maintenance. -
Page 4: Preparation
PC with terminal emulation software. Refer to the "Initial System Setup" section for details. • Baud rate: 115200 bps • Data bits: 8 • Parity: None • Stop bits: 1 • Flow control: None S9110-32X Hardware Installation Guide | 2... -
Page 5: Installation Environment Requirements
Space Clearance: The S9110-32X width is 17.32 inches (44.0cm) and shipped with a rack mount brackets suitable for 19 inch (43.8cm) wide racks. The depth of the S9110-32X chassis is 18.9 inches (48cm) without the field replaceable units (FRUs) and comes with adjustable mounting rails suitable for rack depths of 22 inches (55.9cm) to 33 inches (83.8cm). -
Page 6: Preparation Check List
• Cooling: The S9110-32X has two options for airflow direction. There is a back-to-front option (Figure 3. Left) and a front-to-back option (Figure 3. Right). Make sure the equipment on the same rack have the same airflow direction. Back-to-Front Airflow Front-to-Back Airflow Figure 3. -
Page 7: Package Contents
Mounting Rail) Power Cord 1.43lb (650g)/2pcs 72.05” (1830mm) 2 pcs (AC Version only) 0.72lb (325g)/pcs USB 3.0 cable 7.87” (200mm) 1 pcs 0.038lb (17.2g)/pcs RJ45 to DB9 Female 95.98” (2438mm) 1 pcs 0.23lb (105g)/pcs Cable S9110-32X Hardware Installation Guide | 5... -
Page 8: Component Physical Information
AC power cord (AC version only) 0.72lbs (325g) RJ45 to DB9 female cable 0.23lbs (105g) S9110-32X (W x D x H) 17.32” x 18.9” x 1.72” (440 x 480 x 43.8mm) Dimension PSU (W x D x H) 1.99” x 10.35” x 1.57” (50.5 x 263 x 40.2mm) Fan module (W x D x H) 1.71”... -
Page 9: Identifying Your System
4 Identifying Your System S9110-32X System Overview Figure 5. S9110-32X Hardware Installation Guide | 7... -
Page 10: Dc Version Psu Overview
The DC power supply units are the same size for both back-to-front airflow and front-to-back airflow. Therefore, only the dimensions for front-to-back airflow PSU will be provided in the figure below. (Front-to-Back Airflow PSU) Figure 7. S9110-32X Hardware Installation Guide | 8... -
Page 11: Ac Version Psu Overview
The AC power supply units are the same size for both back-to-front airflow and front-to-back airflow. Therefore, only the dimensions for front-to-back airflow PSU will be provided in the figure below. (Front-to-Back Airflow PSU) Figure 9. S9110-32X Hardware Installation Guide | 9... -
Page 12: Fan Overview
The picture on the bottom is for the fans with front-to-back airflow, identified with a red handle. (Back-to-Front Airflow Fans) (Front-to-Back Airflow Fans) Figure 10. Port Overview Port ID Form Factor Maximum Support Distance Support Speed 0 ~ 31 QSFP28 49.7mi (80km) 40/100G Figure 11. S9110-32X Hardware Installation Guide | 10... -
Page 13: Rack Mounting
(See Figure 11). For a 4 post rack, first secure the adjustable mounting rail to the back of the router using the M4.0*L6.5mm screws provided in the package. Then secure the adjustable mounting rail to the rack posts. (See Figure 12). Figure 13. Figure 14. S9110-32X Hardware Installation Guide | 11... -
Page 14: Installing Fan Modules
4. Carefully slide the new fan module into the fan bay and gently push until it is flush with the case. 5. Secure the captive screw on the fan module to lock the fan in place. Figure 17. S9110-32X Hardware Installation Guide | 12... -
Page 15: Installing Power Supply Units
2. While holding down the release tab, grip the PSU's handle and firmly pull it out of the power bay. DC Version: AC Version: Figure 19. 3. Align the new PSU with the power bay, ensuring the PSU’s power connector is in the correct position. S9110-32X Hardware Installation Guide | 13... - Page 16 5. An audible click will be heard when the PSU is installed correctly. The PSU will not go in all the way if it is in the wrong direction. Illustrations are for reference purposes only. Actual PSU position may differ. DC Version: AC Version: Figure 20. S9110-32X Hardware Installation Guide | 14...
-
Page 17: Grounding The Router
3. Insert the exposed grounding wire all the way into the hole of the grounding lug (provided with package contents). 4. Using a crimping tool, firmly secure the grounding wire to the grounding lug. Figure 21. S9110-32X Hardware Installation Guide | 15... - Page 18 Figure 22. 6. Using 2 M4 screws and 4 washers (provided with the package contents), firmly lock the grounding lug to either of the designated grounding locations on the router. Figure 23. S9110-32X Hardware Installation Guide | 16...
-
Page 19: Connecting Power
Also, please ensure that both PSUs have been properly installed before powering up the equipment, as the S9110-32X is designed to support 1 + 1 power redundancy. 2. Attach the power cable. -
Page 20: Ac Version
Also, please ensure that both PSUs have been properly installed before powering up the equipment, as the S9110-32X is designed to support 1 + 1 power redundancy. 2. Attach the power cable. -
Page 21: Verifying System Operation
PSU0 working normal Blinking Amber PSU0 fail (PSU0 needs service) PSU1 No power Solid Green PSU1 working normal Blinking Amber PSU1 fail (PSU1 needs service) No Power Blinking Blue Beacon feature is enabled on the switch S9110-32X Hardware Installation Guide | 19... -
Page 22: Psu Fru Led
Fan is abnormal, service is required Management Port LED LED Condition Equipment Status Left LED No power Solid Green 1G link-up Blinking Green 1G TX/RX activity Right LED No power Solid Amber 10M/100M link-up Blinking Amber 10M/100M TX/RX activity S9110-32X Hardware Installation Guide | 20... -
Page 23: Initial System Setup
After the connection is established, a prompt for the username and password displays. Enter the username and password to access the CLI. The username and password should be provided by the Network Operating System (NOS) vendor. S9110-32X Hardware Installation Guide | 21... -
Page 24: Cable Connections
Connect the USB 3.0 A Type plug (male connector) into the USB port (female connector) located on the front panel of the router. Figure 28. Connecting the OOB Management Cables Connect the OOB management cable by locating the RJ45 OOB port marked a symbol. Figure 29. S9110-32X Hardware Installation Guide | 22... -
Page 25: Connecting The Management Cables
3. Place the bail (wire handle) in the unlocked position and align the transceiver with the port. 4. Slide the transceiver into the port and use gentle pressure to secure it in place. An audible click can be heard when the transceiver is secured in the port. S9110-32X Hardware Installation Guide | 23... -
Page 26: Cautions And Regulatory Compliance Statements
The equipment and its modules should only be repaired, maintained or replaced by skilled personnel. Instructed person is a term applied to persons who have been instructed and trained by a skilled person, or who is supervised by a skilled person. S9110-32X Hardware Installation Guide | 24... - Page 27 www.ufispace.com...
