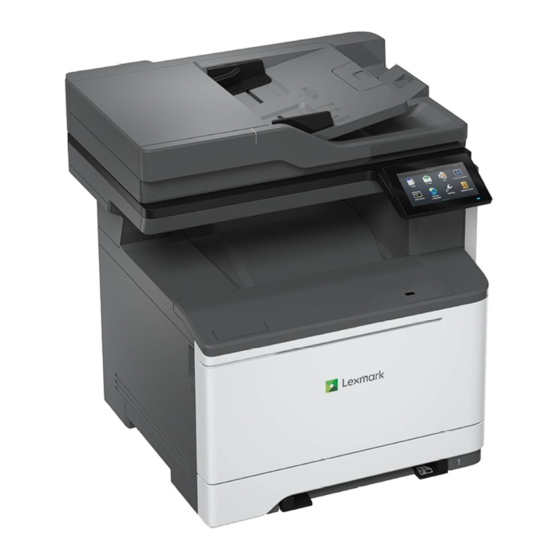

Lexmark XC2335 Quick Reference
Hide thumbs Also See for XC2335:

Advertisement

Quick Links

Quick Reference
Copy
Making copies
1
Load an original document into the ADF tray or on the scanner
glass.
Note: To avoid a cropped image, make sure that the original
document and output have the same paper size.
2
From the home screen, touch Copy, and then specify the
number of copies.
If necessary, adjust the copy settings.
3
Copy the document.
Note: To make a quick copy, from the home screen, touch
Copying on both sides of the paper
1
Load an original document into the ADF tray or on the scanner
glass.
2
From the home screen, touch Copy > Settings > Sides.
3
Touch 1 sided to 2 sided or 2 sided to 2 sided.
4
Copy the document.
Copying multiple pages onto a single
sheet
1
Load an original document into the ADF tray or on the scanner
glass.
2
From the home screen, touch Copy > Settings > Pages per
Side.
3
Enable the setting, and then select the number per side and
page orientation.
4
Copy the document.
E-mail
Configuring the e‑mail SMTP settings
Configure the Simple Mail Transfer Protocol (SMTP) settings to
send a scanned document through e-mail. The settings vary with
each e ‑ mail service provider.
Before you begin, make sure that the printer is connected to a
network and that the network is connected to the Internet.
Using the Embedded Web Server
1
Open a web browser, and then type the printer IP address in
the address field.
Notes:
View the printer IP address on the printer home screen.
The IP address appears as four sets of numbers
separated by periods, such as 123.123.123.123.
If you are using a proxy server, then temporarily disable
it to load the web page correctly.
.
Click Settings > E ‑ mail.
2
From the E ‑ mail Setup section, configure the settings.
3
Notes:
For more information on the password, see the list of
e ‑ mail service
providers.
For e ‑ mail service providers that are not on the list,
contact your provider and ask for the settings.
4
Click Save.
Using the Settings menu in the printer
From the home screen, touch Settings > E ‑ mail > E ‑ mail Setup.
1
2
Configure the settings.
Notes:
For more information on the password, see the list of
e ‑ mail service
providers.
For e ‑ mail service providers that are not on the list,
contact your provider and ask for the settings.
E‑mail service providers
AOL Mail
Comcast Mail
1
Gmail
iCloud Mail
Mail.com
NetEase Mail (mail.126.com)
NetEase Mail (mail.163.com)
NetEase Mail (mail.yeah.net)
Outlook Live or Microsoft 365
QQ Mail
Sina Mail
Sohu Mail
Yahoo! Mail
Zoho Mail
Notes:
If you encounter errors using the settings provided, then
contact your e ‑ mail service provider.
For e ‑ mail service providers that are not on the list, contact
your provider.
AOL Mail
Setting
Value
Primary SMTP
smtp.aol.com
Gateway
Primary SMTP
587
Gateway Port
Use SSL/TLS
Required
Require Trusted
Disabled
Certificate
Reply Address
Your e‑mail address
SMTP Server
Login / Plain
Authentication
Device‑Initiated E‑mail
Use Device SMTP Credentials
Device UserID
Your e‑mail address
Device Password
App password
Note: To create an app password,
go to the
AOL Account Security
page, log in to your account, and
then click Generate app password.
