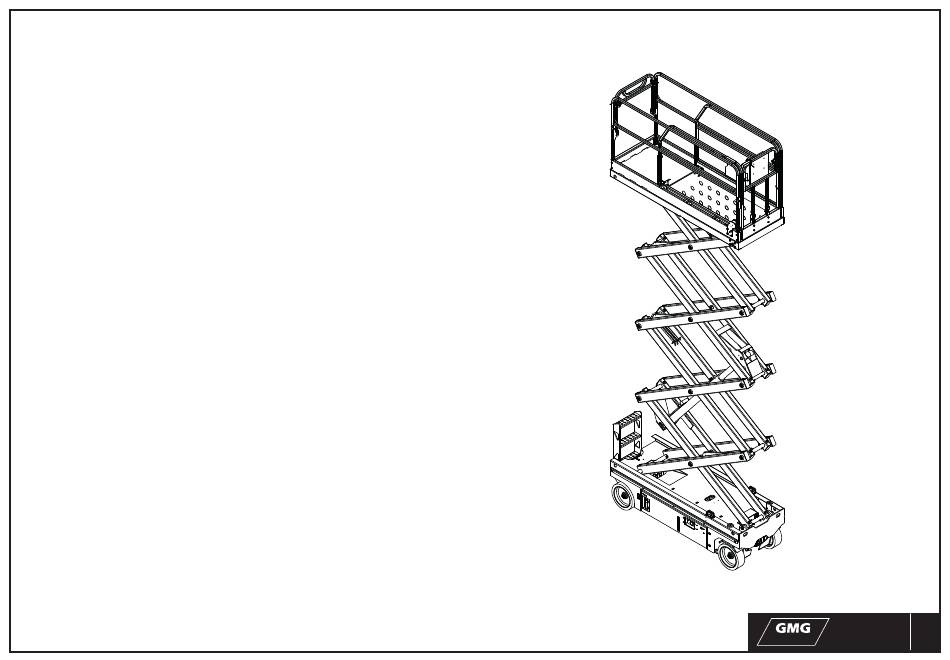

TechnIcal TRaInInG GMG elecTRIc POWeReD ScISSORS
GMG T
- 1930eD....4646eD
ech Manual
DeceMBeR 2018
OVERVIEW COMP. + EZCAL - MENU STRUCTURE ......................................................................... 2
INPUTS FROM LOWER CONTROLS ............................................................................................... 3
INPUTS / OUTPUTS UPPER CONTROLS ........................................................................................4
OUTPUTS FROM TS200 ................................................................................................................ 5
SAMPLE MENU STRUCTURE ADJUSTMENT - 1930ED ....................................................................6
ADJUSTMENT VALUES - RANGE GMG (CE / EU) ............................................................................ 7
MENU STRUCTURE SETUPS ..........................................................................................................8
ELECTRIC SCHEMATIC .................................................................................................................9
HIGH AMP CABLE ROUTING ...................................................................................................... 10
SEPEX DC DRIVE MOTORS .......................................................................................................... 11
FIELD CURRENT ..........................................................................................................................12
HYDRAULIC SCHEMATIC ............................................................................................................13
1
1930ED....4646ED
Global Machinery Group, Inc.
DEC 2018
Advertisement
Table of Contents
Related Manuals for GMG 1930ED Series
Summary of Contents for GMG 1930ED Series
-
Page 1: Table Of Contents
INPUTS / OUTPUTS UPPER CONTROLS ..................4 OUTPUTS FROM TS200 ........................ 5 SAMPLE MENU STRUCTURE ADJUSTMENT - 1930ED ..............6 ADJUSTMENT VALUES - RANGE GMG (CE / EU) ................7 MENU STRUCTURE SETUPS ......................8 ELECTRIC SCHEMATIC .........................9 HIGH AMP CABLE ROUTING ...................... 10 SEPEX DC DRIVE MOTORS ...................... - Page 2 CAN high - data line CAN low - data line SETUPS CAN high - data line CAN low - data line H-BRIDGE Field current controller CANbus interface with TS200 module GMG - SUPPORT 1930ED..4646ED Global Machinery Group, Inc. DEC 2018...
-
Page 3: Inputs From Lower Controls
Key switch input Set to upper controls P12-4 ON or OFF Lift / lower switch Up from lower controls P12-5 ON or OFF Lift / lower switch Down from lower controls GMG - SUPPORT 1930ED..4646ED Global Machinery Group, Inc. DEC 2018... -
Page 4: Inputs / Outputs Upper Controls
DESCRIPTION via can to TS200 Active when tilt alarm is on M1-4 ON or OFF Display (Display shows: LL) Active when overload M1-5 ON or OFF Display (Display shows: OL) GMG - SUPPORT 1930ED..4646ED Global Machinery Group, Inc. DEC 2018... -
Page 5: Outputs From Ts200
Hydr valve - steer Provides 24V to steer left valve vP9-9 Hydr valve - lower Provides 24V to lowering valve (cylinder) lP12-6 Alarm Provides negative supply to alarm (ground) GMG - SUPPORT 1930ED..4646ED Global Machinery Group, Inc. DEC 2018... -
Page 6: Sample Menu Structure Adjustment - 1930Ed
SAMPLE MENU STRUCTURE ADJUSTMENT - 1930ED ADJUSTMENTS MENU GMG 1930-ED CE DRIVE DRIVE/ELEVATED LIFT GROUNDMODE TILT OVERLOAD ALARMS HEIGHTS UP MIN TRIP@ DRIVE Xtrip ELEVATION@ OVERLOAD#2 120% 0=NO ARMGUARD TILT#2 3.0(°) 4 - 10% 3 - 8% 10 - 30%... -
Page 7: Adjustment Values - Range Gmg (Ce / Eu)
ADJUSTMENT VALUES - RANGE GMG (CE / EU) 1930ED 2632ED 2646ED 3346ED 4046ED 4646ED 1930ED 2632ED 2646ED 3346ED 4046ED 4646ED GROUNDMODE DECEL 0.0s 0.0s 0.0s 0.0s 0.0s 0.0s DRIVE MIN TILT Xtrip 3.0’ 3.0’ 1.5’ 1.5’ 1.5’ 1.0’ DRIVE FWD MAX TILT Ytrip 1.5’... -
Page 8: Menu Structure Setups
FIELD MINrev (A) P12-2 FIELD MIDrev (A) P9-8 FIELD MAXrev (A) P15-9 FIELD TILT (A) FIELD RAMPTILT P15-9 M1-4/5 WINDOW LIFTJOY CLIMIT (A) J3-12 BLIMIT (A) CASTER STEER SCALEfwd (%) GMG - SUPPORT SCALErev (%) 1930ED..4646ED Global Machinery Group, Inc. DEC 2018... -
Page 9: Electric Schematic
P12- 8 O UT PU T SUPPL Y FOR EX TE RNAL PL AT F OR M D O N W S W PCAN1 CO M M CANBUS HIGH Not on the GMG 4646ED CO M M CANBUS LOW PCAN2 ALARM P12- 9... -
Page 10: High Amp Cable Routing
DC DUAL MOTOR CONTROLLER TS200 ever di erences are being moni- with integrated Input / output logic tored, system goes to a shut-down. system. Powered by P9-4 GMG - SUPPORT 1930ED..4646ED Global Machinery Group, Inc. DEC 2018... -
Page 11: Sepex Dc Drive Motors
Current (I) being measured by the Half Bridge module, current / amps lowing thru the field winding. FieldI target Software routines determine target for the Field current (I). The field current (FieldI) is constantly compensated to match up the field current targer (FieldI targer). GMG - SUPPORT 1930ED..4646ED Global Machinery Group, Inc. DEC 2018... -
Page 12: Field Current
RAMP TILT situation. Start up Continues driving Driving on minor slope, Driving on intense slope / ramp, Flat surface (0 degrees) above 2 - 3 degrees above 6 degrees GMG - SUPPORT 1930ED..4646ED Global Machinery Group, Inc. DEC 2018... -
Page 13: Hydraulic Schematic
HYDRAULIC SCHEMATIC 2nd lift cylinder Lift cylinder Down valve Steer cylinder Steer valve Steer Steer relief ori ce Lift valve Down ori ce Relief valve Hydraulic pump GMG - SUPPORT 1930ED..4646ED Global Machinery Group, Inc. DEC 2018...
