Summary of Contents for GMG 1930ED

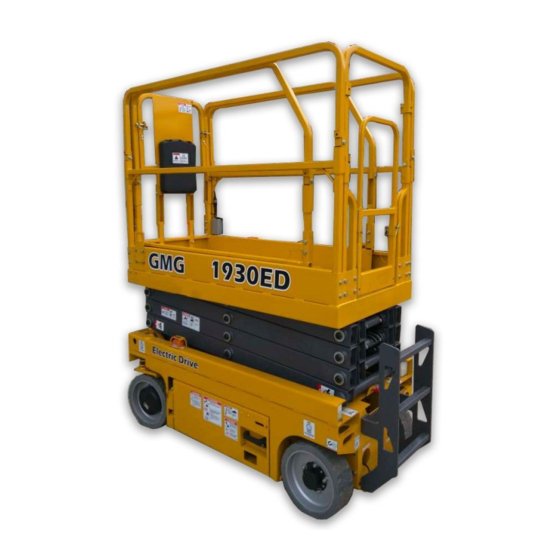

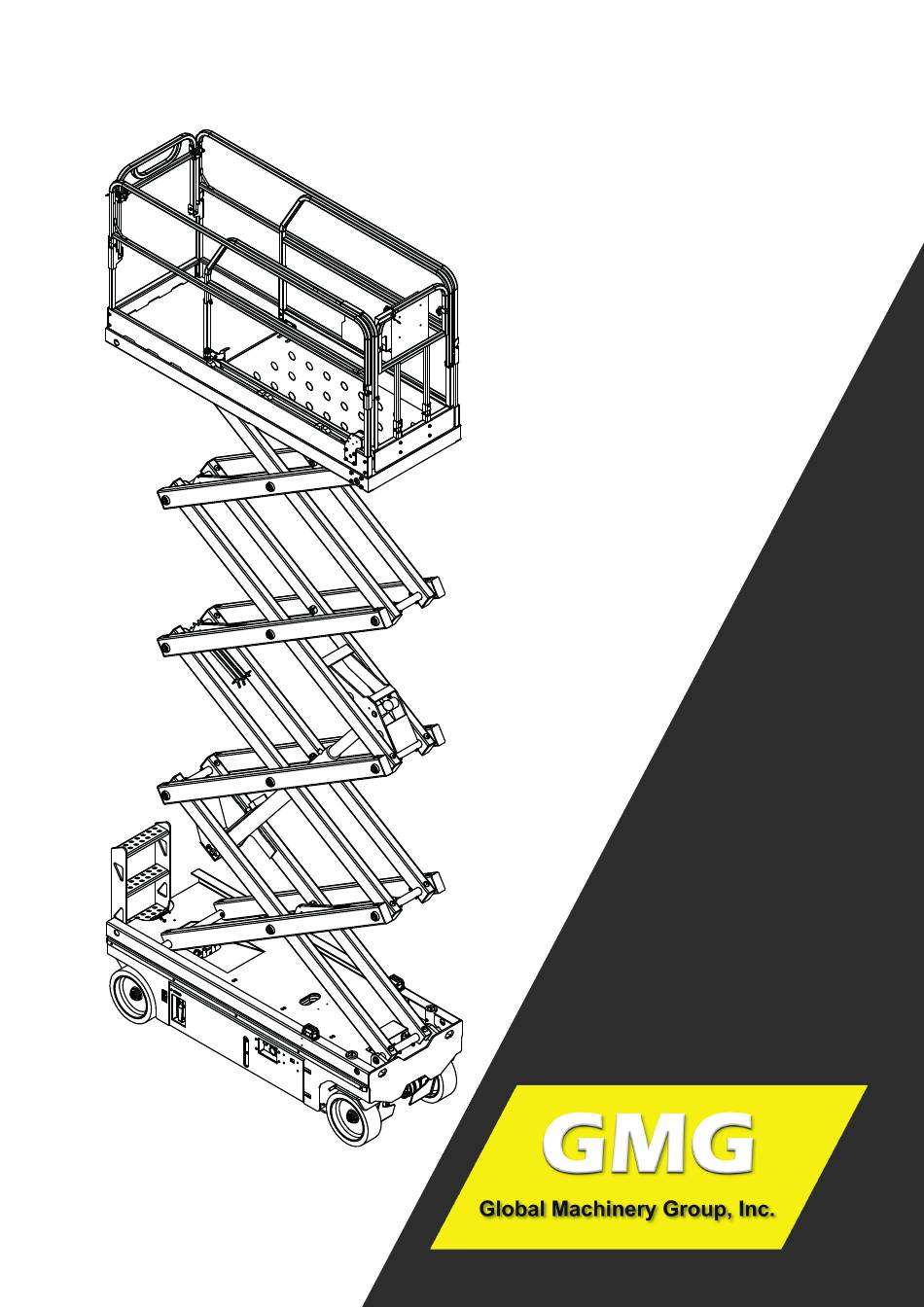

  • Page 1 OPERATOR’S MANUAL 1930ED 2632ED 2646ED 3346ED 4046ED 4646ED...
  • Page 2 GMG 1930ED - 4646ED Operator’s manual ........................4 .......................... 7 ........................... 9 ......................9 ........................10 ......................10 ........................11 ........................12 ....................... 12 ....................13 ....................13 ....................13 ......................13 ................ 13 ........................13 ..................... 15 ......................15 ....................... 16 ........................
  • Page 3 Content ......................29 ......................29 ......................29 ..................30 ..................30 ......................30 ..........................31 ..........................32 ..................... 33 ......................... 34 ......................34 ................ 35 ......................35 ................36 ......................36 ....................... 37 ........................39 ......................40 ......................40 ..................40 .........................

  • Page 4: Specifications

    GMG 1930ED - 4646ED Operator’s manual PECIFICATIONS 1930ED 2632ED 2646ED EIGHTS Working Height 7,80 m 10,00 m 10,00 m Platform Height 5,80 m 8,00 m 8,00 m Stowed: Guardrails up 2,16 m 2,29 m 2,25 m Guardrails folded 1,79 m...
  • Page 5 Specifications PECIFICATIONS 3346ED 4046ED 4646ED EIGHTS Working Height 12,00 m 13,90 m 15,90 m Platform Height 10,00 m 11,89 m 13,90 m Stowed: Guardrails up 2,44 m 2,55 m 2,69 m Guardrails folded 1,76 m 1,88 m 2,00 m Platform floor 1,31 m 1,34 m 1,60 m...
  • Page 6 GMG 1930ED - 4646ED Operator’s manual Operator’s Manual - 1930----4646ED March 2019 #940400-3-EN...
  • Page 7 This Operator’s Manual has been designed to provide you, the owner, user or operator, with the instructions and operating procedures essential to properly and safely operate your GMG Aerial Work Platform for positioning personnel, along with their necessary tools and materials, to overhead work locations.
  • Page 8 GMG 1930ED - 4646ED Operator’s manual Operator’s Manual - 1930----4646ED March 2019 #940400-3-EN...

  • Page 9: Safety Alert Symbols

    For your safety and the safety of those around you, you must operate your machine as instructed in this manual. GMG designs aerial work platforms to safely and reliably position personnel, along with their necessary tools and materials, at overhead work locations. The owner/user/operator of the machine should not accept responsibility for the operation of the machine unless properly trained.

  • Page 10: Fall Protection

    GMG 1930ED - 4646ED Operator’s manual ROTECTION Operators must comply with employer, job site and governmental rules regarding the use of personal protective equipment. If required by your employer or job site, use personal fall protection equipment (PFPE) when operating this machine.

  • Page 11: Tip - Over Hazards

    NEVER replace any part of the machine with items of different weight or specification. 13307 NEVER modify or alter the work platform without written permission from GMG. DO NOT ELEVATE IN NEVER place ladders or scaffolds in the platform or against any part of the WINDY CONDITIONS machine.

  • Page 12: Fall Hazards

    GMG 1930ED - 4646ED Operator’s manual AZARDS DO NOT sit, stand or climb on the platform guard rails. Maintain a firm footing on the platform floor at all times. DO NOT exit the platform when elevated Keep the platform floor clear of debris.

  • Page 13: Additional Safety Hazards

    Safety DDITIONAL AFETY AZARDS 2.7.1 E XPLOSION AND AZARDS DO NOT operate the machine in hazardous locations or locations where potentially flammable or explosive gases or particles may be present. 2.7.2 D AMAGED ACHINE AZARDS Conduct a thorough prestart inspection of the machine and test all functions before each work shift to check for damage, malfunction and unauthorized modification.
  • Page 14 GMG 1930ED - 4646ED Operator’s manual Operator’s Manual - 1930----4646ED March 2019 #940400-3-EN...
  • Page 15 Gate Maintenance lock Maintenance lock Lift Cylinder Forklift Pocket Chassis Emergency Lowering Lower Control Charging Station Location 1930ED Battery Power / Lower Tie-Down / Charging Forklift Pocket Charger Emergency Stop Lift Points Location 2632ED, 3346ED, 4046ED, 4646ED Page 15 of 52...
  • Page 16 GMG 1930ED - 4646ED Operator’s manual 3.2.A LATFORM ONTROLS TYPE Be aware of the machine’s position and of your surroundings before activating any control function. Control Description Function Enable Switch Squeeze to enable DRIVE, STEER and LIFT functions from the Control Handle.
  • Page 17 Controls & components 3.2.B LATFORM ONTROLS TYPE Be aware of the machine’s position and of your surroundings before activating any control function. Control Description Function Enable Switch Squeeze to enable DRIVE, STEER and LIFT functions from the Control Handle. Steer Switch / thumb rocker Using your thumb, press and hold the rocker switch to steer Left or Right.
  • Page 18 GMG 1930ED - 4646ED Operator’s manual 3.2.C LATFORM ONTROLS TYPE Be aware of the machine’s position and of your surroundings before activating any control function. Control Description Function Enable Switch Squeeze to enable DRIVE, STEER and LIFT functions from the Control Handle.

  • Page 19: Lower Controls

    Controls & components OWER ONTROLS HOURS Be aware of the machine’s position and of your surroundings before activating any control function. Control Description Emergency Stop Press the EMERGENCY STOP at any time to stop all machine functions. Turn switch clockwise to reset. Platform Lift/Lower Switch With the Key Switch in the LOWER position, move this switch up to lift the platform or down to lower the platform...
  • Page 20 GMG 1930ED - 4646ED Operator’s manual Operator’s Manual - 1930----4646ED March 2019 #940400-3-EN...

  • Page 21: Workplace Inspection

    Workplace Inspection ORKPLACE NSPECTION DO NOT operate this machine until you have read and understood this manual, have performed the Workplace Inspection, Pre-Start Inspection and Routine Maintenance, and have completed all the test operations detailed in the Operating Instructions section. Inspect the workplace and determine whether the workplace is suitable for safe machine operation.
  • Page 22 GMG 1930ED - 4646ED Operator’s manual Operator’s Manual - 1930----4646ED March 2019 #940400-3-EN...
  • Page 23 Operating Instructions & Function Tests & F PERATING NSTRUCTIONS UNCTION ESTS DO NOT operate this machine until you have read and understood this manual, have performed the Workplace Inspection, Prestart Inspection and Routine Maintenance, and have completed all the test operations detailed in the Operating Instructions section.

  • Page 24: Test Emergency Stop

    GMG 1930ED - 4646ED Operator’s manual 5.1.4 T UNCTIONS Check the area above and around the machine for obstructions and electrical power lines before operating the machine. A buzzer with different sound frequency is controlled by the central system. The descent alarm sounds at 80 beeps per minute.
  • Page 25 Operating Instructions & Function Tests 5.2.A T UNCTION NABLE AND UNCTIONS Check the area above and around the machine for obstructions and electrical power lines before operating the machine. Control handle forward Control handle reverse Toggle this switch to the UP position for Lift function. Slowly move the CONTROL HANDLE forward and following reverse - not holding the Enable switch on the control handle.
  • Page 26 GMG 1930ED - 4646ED Operator’s manual 5.3.A T EST THE TEERING Toggle this switch to the DOWN position for Drive function. Press and hold the FUNCTION ENABLE SWITCH on the control handle. Depress the THUMB ROCKER SWITCH on top of the control handle in the direction identified by the green left arrow on the control panel.
  • Page 27 Operating Instructions & Function Tests 5.5.A T IMITED RIVE PEED Toggle this switch to the UP position for Lift function. Press the FUNCTION ENABLE SWITCH. Raise the platform approximately 2 m from the ground. Toggle this switch to the DOWN position for Drive function. Press and hold the FUNCTION ENABLE SWITCH on the control handle.
  • Page 28 GMG 1930ED - 4646ED Operator’s manual Operator’s Manual - 1930----4646ED March 2019 #940400-3-EN...

  • Page 29: Emergency Stop

    Operating Instructions PERATING NSTRUCTIONS Check the area above and around the machine for obstructions and electrical power lines before operating the machine. EMERGENCY STOP • Push in the EMERGENCY STOP to the OFF position at the lower controls or the platform controls to stop all machine functions.
  • Page 30 GMG 1930ED - 4646ED Operator’s manual PERATION FROM OWER ONTROLS Check the area above and around the machine for obstructions and electrical power lines before operating the machine. Drive and steer functions are not available from the LOWER CONTROLS. Turn the KEY SWITCH to LOWER CONTROLS.
  • Page 31 Operating Instructions 6.4.1.C T OSITION LATFORM Activate the Lifting-functions by pressing the LIFT-FUNCTION BUTTON. Press and hold the FUNCTION ENABLE SWITCH on the CONTROL HANDLE. Pull the CONTROL HANDLE forward/reverse to raise the platform. Push the CONTROL HANDLE forward/reverse to lower the platform 6.4.2.A T TEER Toggle this switch to the DOWN position for Drive function.
  • Page 32 GMG 1930ED - 4646ED Operator’s manual 6.4.3.A RIVE Toggle this switch to the DOWN position for Drive function. Press and hold the FUNCTION ENABLE SWITCH on the CONTROL HANDLE. • Increase speed: Slowly move the control handle off center. •...
  • Page 33 Operating Instructions 6.4.4.A T EDUCE RIVE PEED The drive controls can operate in two different drive speed modes. When the Drive Speed Switch is in the DOWN position and set to the Turtle icon, slow drive speed mode is active. When the Drive Speed Switch is in the UP position and set to the Rabbit icon, fast drive speed mode is active.
  • Page 34 GMG 1930ED - 4646ED Operator’s manual 6.5.1.A T ILT READING Front side upper control box - type A If the red light lit’s up (left), the internal tilt sensors are detecting a TILT situation. Further movements are being disabled, with the exception of lower the platform.

  • Page 35: Driving O N A Slope

    Operating Instructions 6.5.1.C T ILT READING If the DIAGNOSTIC DISPLAYS read out the message TLT the internal tilt sensors are detecting a TILT situation. Further movements are being disabled, with the exception of lower the platform. Lower the platform directly when the TLT message is given. Position the machine of firm level ground. 6.5.2.C O VERLOAD INDICATION If any of the DIAGNOSTIC DISPLAYS read out the message OL, the platform is overloaded.
  • Page 36 GMG 1930ED - 4646ED Operator’s manual 6.7 T O EXTEND AND RETRACT THE DECK EXTENSION 1 Press the Platform Lock Pin Foot Pedal on the extension deck. Platform Lock Pin Foot Pedal 2 Push the platform extension guardrail to extend the platform to the desired position.

  • Page 37: Battery Charging

    Charge the battery in a well-ventilated area. Use proper AC input voltage for charging as indicated on the machine. Use only GMG authorized batteries and chargers. IMPORTANT — Be sure to disconnect the charger from the outlet before attempting to operate the unit.
  • Page 38 GMG 1930ED - 4646ED Operator’s manual Operator’s Manual - 1930----4646ED March 2019 #940400-3-EN...

  • Page 39: Maintenance

    Maintenance AINTENANCE DO NOT operate this machine until you have read and understood this manual, have performed the Workplace Inspection, Pre-Start Inspection and Routine Maintenance, and have completed all the test operations detailed in the Operating Instructions section. The operator must conduct a Pre-Start Inspection of the machine and test all functions before each work shift to check for damage, malfunction and unauthorized modification.

  • Page 40: Routine Maintenance

    GMG 1930ED - 4646ED Operator’s manual OUTINE AINTENANCE NEVER perform work or inspection on the machine with the platform elevated without first blocking the scissor assembly with the Maintenance Lock. IMPORTANT —The operator may perform only maintenance items on the Pre-Start Inspection Checklist.

  • Page 41: Specification

    Maintenance 9.4 L UBRICATION Operator may perform routine maintenance only. Lubrication listed as Scheduled Maintenance must be performed by a qualified service technician. FULL 13327 9.4.1 L UBRICATION ITEM SPECIFICATION FREQUENCY Hydraulic Mobile Fluid DTE 10, DTE 13M or Routine Maintenance Reservoir AW32.
  • Page 42 GMG 1930ED - 4646ED Operator’s manual AINTENANCE DEATH OR SERIOUS INJURY HAZARD! NEVER perform work or inspection on the machine with the platform elevated without first blocking the scissor assembly with the Maintenance Lock. On machines equipped with two Maintenance Locks, BOTH must be set to safely work on or inspect the machine.
  • Page 43 Inspections 10. I NSPECTIONS 10.1 START INSPECTION The operator conduct a Pre-Start Inspection of the machine before each work shift. DO NOT use a damaged or mal- functioning machine. Initial Description Be sure that the operator’s manual is complete, legible and in the storage container located in the platform.

  • Page 44: Frequent Inspection Checklist

    GMG 1930ED - 4646ED Operator’s manual 10.2 F REQUENT NSPECTION HECKLIST This checklist must be used at 3-month intervals or every 150 hours of ma- chine use, whichever occurs first. Failure to do so could result in death or serious injury.

  • Page 45: Annual Inspection

    Inspections 10.3 A NNUAL NSPECTION EPORT Annual Inspection Report Date Serial Number Global Machinery Group, Inc. Model Number 3428 Bullock Lane, San Luis Obispo, CA 93401 USA Date Of Last Inspection 800-301-0499 • 805-303-2066 • Fax: 805-293-6211 Date Placed In Service Customer Dealer Street...
  • Page 46 GMG 1930ED - 4646ED Operator’s manual Operator’s Manual - 1930----4646ED March 2019 #940400-3-EN...

  • Page 47: Afety Information

    GMG machinery. Truck drivers are responsible for loading and securing machines, and should be properly trained and authorized to operate GMG machinery. Drivers are also responsible for selecting the correct and appropriate trailer according to government regulations and company policy.

  • Page 48: Transport Vehicle

    GMG 1930ED - 4646ED Operator’s manual 11.2.1 D RIVING OR INCHING ONTO OR OFF OF A RANSPORT EHICLE Always attach the machine to a winch when loading or unloading from a truck or trailer by driving. Read and understand all safety, control, and operating information found on the machine and in this manual before operating the machine.

  • Page 49: Lifting Instructions

    Transport And Lifting Instructions 11.3 L IFTING NSTRUCTIONS Only qualified riggers shall rig and lift the machine. Ensure that the crane, loading surfaces, spreader bars, cables, chains and straps are of sufficient capacity to withstand the machine weight. See the serial plate for the machine weight.
  • Page 50 GMG 1930ED - 4646ED Operator’s manual Notes Operator’s Manual - 1930----4646ED March 2019 #940400-3-EN...
  • Page 51 Notes Page 51 of 52...
  • Page 52 Global Machinery Group Global Machinery Group, Inc. GMG EU office 3428 Bullock Lane Leemidden 21 San Luis Obispo, CA 93401 USA 2678ME DE LIER Tel USA: +1.805.303.2066 The Netherlands Toll Free (USA/Canada): 800.303.0499 Tel.: +31 174 52 59 90 www.goGMG.com...
