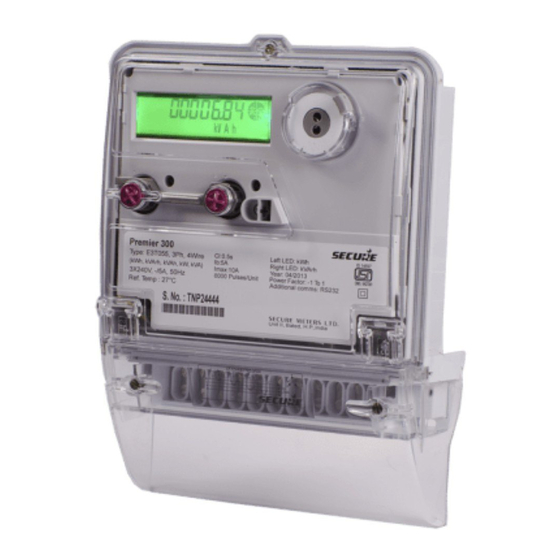

METER TRACKSO CONNECTION MANUAL FOR SECURE PREMIER 300 METER

Brand:

Secure

Models:

Premier 300 with Modbus RJ11-RS485 Output

Note: Documentation is only valid for Meter model having RS485 Modbus communication facility.

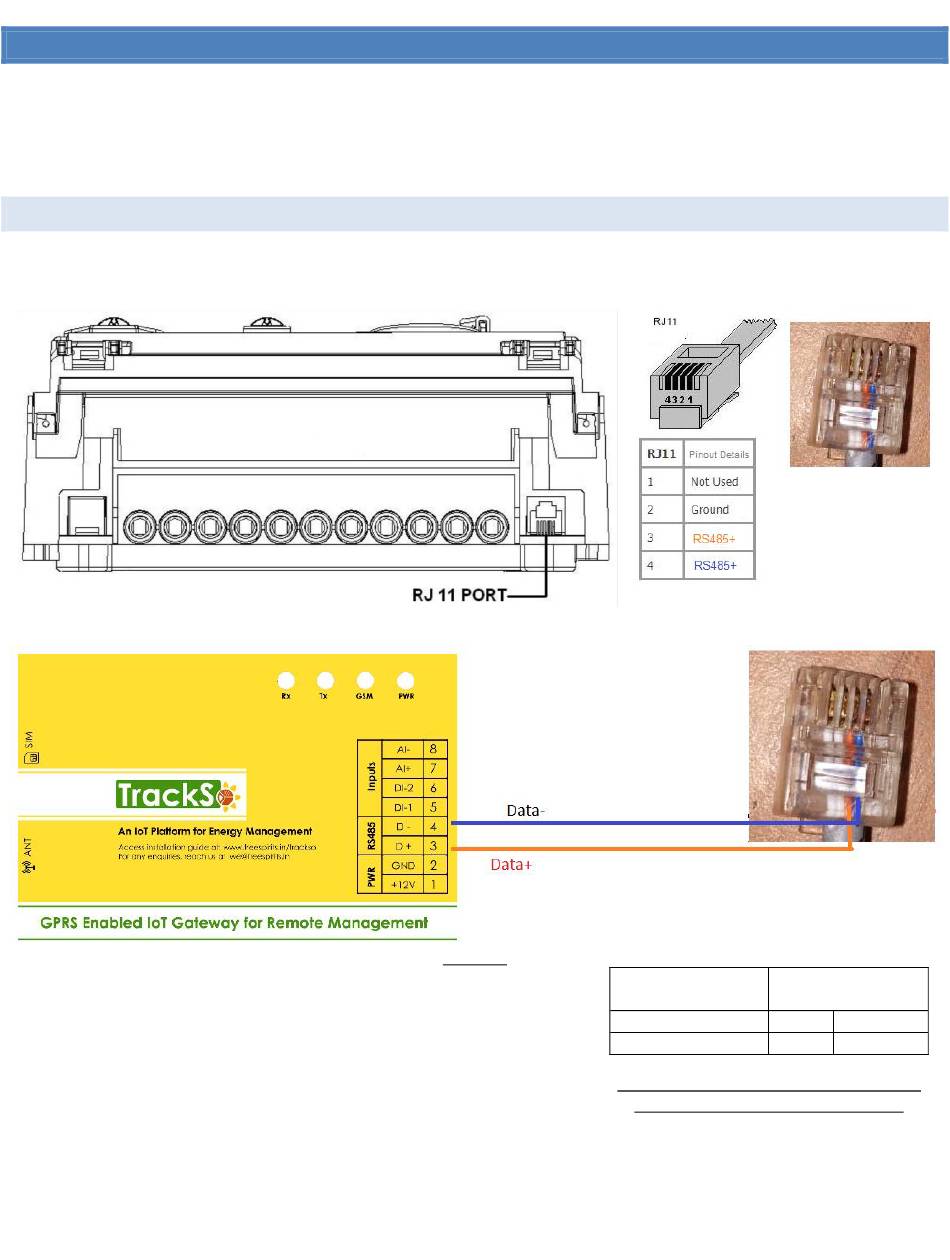

CONNECTION DIAGRAM

On the bottom side of the, Secure

following figure.

1. Create Connecting wire with RJ11 output with 4 wires.

2. Connect the cables to RJ11 socket at the bottom of the meter

Premier 300

has an RJ11 socket which acts a RS-485 communication output as shown in the

Figure S1

Table ST1 – Secure Premier 300 RJ11-RS485

Secure Pin No. &

TrackSo Pin No. &

Assignment

RJ11 – Pin 3

RJ11 – Pin 4

connections with TrackSo IoT Gateway

D+

D-

Need help?

Do you have a question about the Premier 300 and is the answer not in the manual?

Page 1 METER TRACKSO CONNECTION MANUAL FOR SECURE PREMIER 300 METER Brand: Secure Models: Premier 300 with Modbus RJ11-RS485 Output Note: Documentation is only valid for Meter model having RS485 Modbus communication facility. CONNECTION DIAGRAM Premier 300 On the bottom side of the, Secure has an RJ11 socket which acts a RS-485 communication output as shown in the following figure.
Page 2 CONFIGURATION AT THE METER END SETTING BAUD RATE, DEVICE ID As per the local Secure representative the Device Id (Modbus Id) as well as baud rates remains fixed and cannot be modified. No documentation is available in public domain or on manufacture website which confirm if Id and baud rate can be changed.
