Secure Premier 300 User Manual

Interoperable three-phase dlms meter
Hide thumbs Also See for Premier 300:

Advertisement

Table of Contents

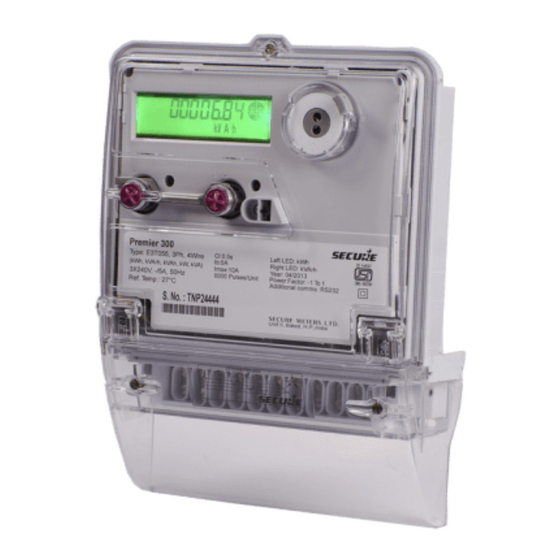

Premier 300
Interoperable Three-phase DLMS Meter
User Manual
BGX501-747-R04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Premier 300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Secure Premier 300

Summary of Contents for Secure Premier 300

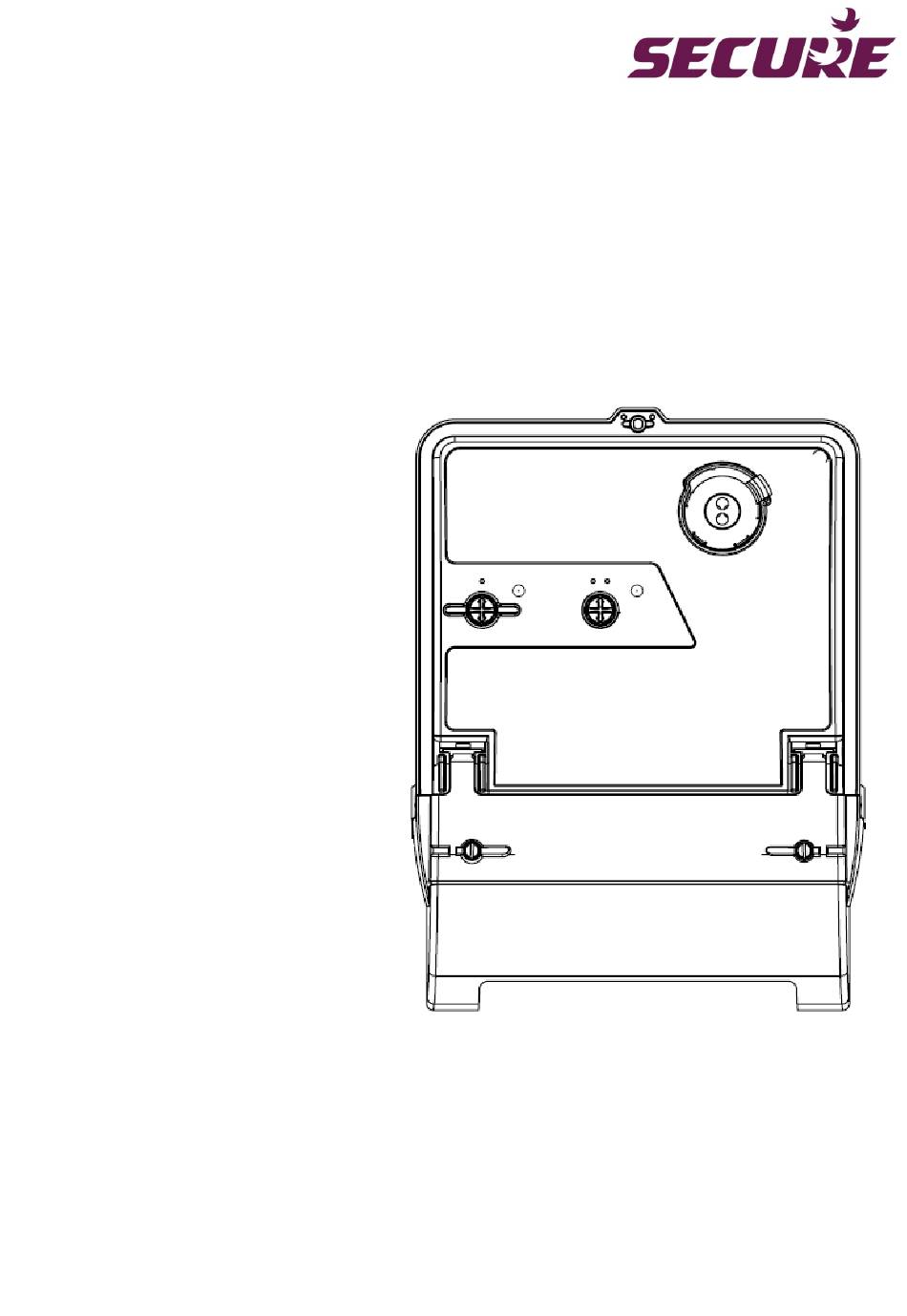

  • Page 1 Premier 300 Interoperable Three-phase DLMS Meter User Manual BGX501-747-R04...
  • Page 2 Copyright © 2010-2012, Secure International Holdings Pte. Ltd. All rights reserved. E&OE. Premier 300® is a registered trade name of Secure Meters Ltd. Other product names are trade names or registered trademarks of their respective owners. Page 2 of 41...

  • Page 3: Table Of Contents

    9.1.1 Push-Button Mode ........................20     9.1.2 Auto mode ............................ 20     Premier 300 physical dimensions ....................... 21     Connection Diagrams ..........................21 10  Premier 300 Installation ....................... 23      10.1 Preparing for Installation ..........................23  ...
  • Page 4 Meter readings – Events session ....................38     13.1.5 Load survey / Interval data ......................38     13.2 Security ................................ 38     13.3 Sub-active (SA) Mode ..........................39 14  Notes ............................. 40  Page 4 of 41 BGX501-747-R04, Premier 300 User Manual PUBLIC...

  • Page 5: 1  Important

    10. The meter is intended to be installed in a mechanical environment ‘M1’, with shock and vibrations of low significance. 2 Disclaimer Secure Meters Ltd. assumes no responsibility for damage arising from misuse of our products such as, but not limited to, the following: 1. Incomplete or incorrect installation or maintenance 2.
  • Page 6 7. Handling by inebriated, intoxicated or mentally unbalanced persons Page 6 of 41 BGX501-747-R04, Premier 300 User Manual PUBLIC...

  • Page 7: 3  Precautions And Safety Practices

    7. The meter contains a battery that must be disposed of in a suitable manner at the end of its life. 8. Secure Meters recommends carrying out regular installation checks, especially when the product is installed at locations posing higher risk of degradation or corrosion – such as under direct, strong sunlight, areas with high ambient temperature and little ventilation, areas near heat sources like a furnace, areas near sea or a water body, areas where the meter is regularly exposed to chemical fumes, etc.

  • Page 8: 4  Deliverables

    4 Deliverables At the time of purchase you will be provided with the below listed items: S.No. Item Premier 300 Meter Accessories (as per order) Table 1: Premier 300 Deliverable List Page 8 of 41 BGX501-747-R04, Premier 300 User Manual PUBLIC...

  • Page 9: 5  Common Acronyms Used

    Light Emitting Diode Maximum demand Neutral Disturbance Non Volatile Memory Phase-Neutral Real Time Clock STOD Seasonal Time Of Day Time Of Day DLMS Device Language Message Specification Table 2: Common Acronyms PUBLIC BGX501-747-R04, Premier 300 User Manual Page 9 of 41...

  • Page 10: 6  Introduction

    6 Introduction Premier 300 is a DLMS (Indian standard) compliant, CT operated meter with CT/VT and LTCT variants that offer numerous features, which make it ideal for industrial and commercial metering. It belongs to the latest cost optimised product range and provides easy integration with diverse communication entities thus making it truly interoperable.

  • Page 11: 7  General Specifications

    7 General Specifications The general specifications for Premier 300 are summarised below: Specification Description Dimensions (mm) 191 (L) x 256 (W) x 82 (H) mm approx Weight 1.6 kg approximately Mounting Type Projection type Front Cover Fire-retardant polycarbonate (PC-FR) Base...

  • Page 12: 8  External Features

    The front cover, made of the same material, is fastened to the base with screws. A sealing arrangement is provided to prevent tampering. Push Buttons: Two push buttons, namely left and right buttons, allow interactions with Premier 300. These buttons are used for various user operations such as display navigation, page mode selection, MD reset, etc.There is provision of sealing left push button.
  • Page 13 Sealing screw for ETBC: This screw facilitates the necessary sealing arrangement after the installation of the meter in the field. LEDs: Premier 300 has two metrological LEDs: while the left LED indicates the rate of consumption of active energy, the right LED can be configured to indicate several different energies.

  • Page 14: 9  Using The Display

    9 Using the Display Premier 300 is equipped with a large multi-segment alpha-numeric LCD display and two buttons for the essential user interface. Display parameters for Premier 300 are configurable through BCS. Figure 2: All segment check for the LCD Display of Premier 300 The LCD screen has various sections and annunciators for displaying specific bits of information such as current status of the meter, parameter values, user messages etc.
  • Page 15 Table 4: Segment / Annunciators details for Premier 300 LCD The table below shows an indicative list of supported Premier 300 displays. There may be more supported displays. General Displays...
  • Page 16 Cumulative programming count LED pulse rate display Primary Current Primary Voltage (For LT meters it will be zero) Secondary Current Secondary Voltage PT Ratio CT Ratio Connection check Physical Device ID Page 16 of 41 BGX501-747-R04, Premier 300 User Manual PUBLIC...
  • Page 17 Reactive net energy(Imp-Exp) Total Active Import energy Total Active Export energy Apparent while Active Import energy Apparent while Active Export energy Reactive Import while Active Export Reactive Import while Active Import PUBLIC BGX501-747-R04, Premier 300 User Manual Page 17 of 41...
  • Page 18 Date of universal apparent maximum demand - Time of universal apparent maximum demand - history 1 history 1 Cumulative active maximum demand Cumulative apparent maximum demand Universal active maximum demand - history 1-6 MD reset date Page 18 of 41 BGX501-747-R04, Premier 300 User Manual PUBLIC...
  • Page 19 Date of last restored tamper Time of last restored tamper Date of last cover open tamper Time of last cover open tamper Table 5: Some supported displays in Premier 300. PUBLIC BGX501-747-R04, Premier 300 User Manual Page 19 of 41...

  • Page 20: 9.1 Push-Button Details

    Display Sequence. The buttons provided on the meter can be used to scroll through this sequence. Premier 300 supports Page Mode display view. Multiple pages can be selected. While a long push (button press > 5 seconds) allows page navigation, a short push allows scrolling through the available displays in a page.
