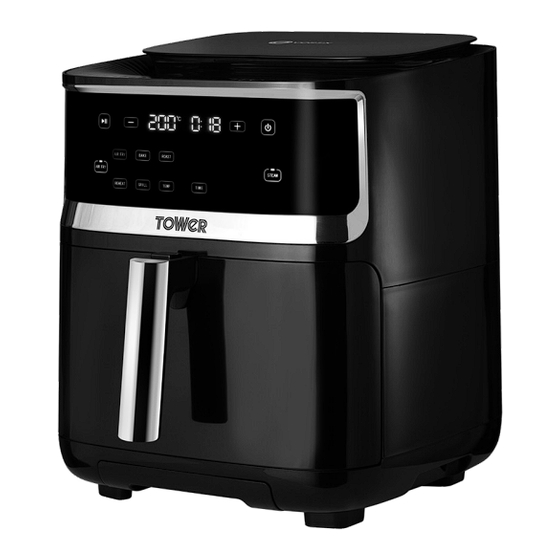

Tower Hobbies T17101 User Manual

7 in 1 air fryer with steamer
Hide thumbs Also See for T17101:
Table of Contents

Advertisement

Quick Links

Download this manual
MODEL: T17101
7 LITRE
7 IN 1 AIR FRYER WITH STEAMER
USER MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T17101 and is the answer not in the manual?

Questions and answers

Related Manuals for Tower Hobbies T17101

Summary of Contents for Tower Hobbies T17101

  • Page 1 MODEL: T17101 7 LITRE 7 IN 1 AIR FRYER WITH STEAMER USER MANUAL...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS THIS BOX CONTAINS SPECIFICATIONS IMPORTANT SAFETY INFORMATION • General safety • Plug and cord • Wiring safety GETTING TO KNOW YOUR AIR FRYER • Control panel and display • Structure of your appliance BEFORE FIRST USE • Preparing for use •...

  • Page 3: This Box Contains

    THIS BOX CONTAINS Instruction Manual 7L Digital Steam Air Fryer Removable Grill Plate SPECIFICATIONS RATED VOLTAGE AC 220 - 240V~ FREQUENCY 50/60Hz POWER CONSUMPTION 1700W CAPACITY 7 Litre TEMPERATURE RANGE 80°C - 200°C TIME RANGE 1-60 minutes DIMENSIONS (MM) H: 387 x W 319 : x D: 427mm WEIGHT 7.2Kg...

  • Page 4: Important Safety Information

    IMPORTANT SAFETY INFORMATION Please read these safety NOTES carefully • Cleaning and user maintenance should BEFORE using your Tower appliance. not be undertaken by children without supervision. These warnings have been provided in the interest of safety. Basic safety precautions •...

  • Page 5: Plug And Cord

    WHILST AIR FRYING PLUG AND CORD • Please ensure that the appliance is used • Check that the voltage of the main on a stable, level, and heat resistant circuit corresponds with the rating of the surface. appliance before operating. •...

  • Page 6: Wiring Safety

    WIRING SAFETY FOR UK USE ONLY • The plug must be fitted with a fuse of the same rating already fitted and Earth Fuse (Green/Yellow) conforming to BS 1362 and be ASTA approved. Neutral Live • If in doubt consult a qualified electrician (Blue) (Brown) who will be pleased to do this for you.

  • Page 7: Getting To Know Your Air Fryer

    GETTING TO KNOW YOUR AIR FRYER CONTROL PANEL AND DISPLAY 6. Function Indicators Start/Pause Key Steam Function Control Panel Time/Temperature - Key LED Display 8. Time Selection Key Time/Temperature + Key 9. Temperature Selection Key 5. Power ON/OFF Key 10. Air Frying Function Control Panel AIR FRYING MODE STEAM MODE Air Fry –...

  • Page 8: Structure Of Your Appliance

    STRUCTURE OF YOUR APPLIANCE Screen Water Tank Excess Steam Collector Pot Air outlet Drawer Air inlet Cool Touch Handle Water Drip Tray...

  • Page 9: Before First Use

    BEFORE FIRST USE PREPARING FOR USE TURNING THE APPLIANCE ON 1. Remove your appliance from the 1. Plug the unit into a mains socket. There packaging. will be a sound prompt and the will illuminate and begin to flash to 2.

  • Page 10: Using Your Air Fryer

    USING YOUR AIR FRYER SELECTING A COOKING MODE STEAM MODE AND PROGRAM NOTE: Ensure the water tank is filled before attempting to use Steam mode. If Steam 1. This unit is equipped with two cooking mode is selected when the water tank has modes: air fry and steam.

  • Page 11: Combo Cook

    FILLING THE WATER TANK COMBO COOK FUNCTION 1. To use any of the steam programs, begin This unit Is equipped with a unique Combo Cook function, accessible from by filling the water tank located at the top of the unit. To do this, firmly grip the the Steam mode function selection panel.

  • Page 12: Setting The Temperature/Time

    3. Once the correct time for each cooking SETTING THE TEMPERATURE mode is set, touch the key to start This unit is equipped with adjustable the cooking process. The unit will temperature settings, from 80 to 200 automatically begin to operate at the degrees Celsius.

  • Page 13: Weights & Measures Table

    WEIGHTS AND MEASURES FOOD ALLERGIES Check these charts for basic imperial IMPORTANT: Some of the recipes to metric conversions of weights. contained in this document may contain nuts and/or other allergens. Please be careful when making any of our sample METRIC IMPERIAL US CUPS...

  • Page 14: Air Fry Mode Settings Table

    AIR FRY MODE SUGGESTED TIME/TEMPS Time Temp Extra information Shake (mins) (°C) POTATO & FRIES Thin Frozen Fries 18-25 Thick Frozen Fries 20-25 Potato Gratin 20-25 MEAT & POULTRY Steak 12-18 Pork Chops 12-18 Hamburger 10-20 Sausage Roll 13-15 Drumsticks 25-30 Chicken Breast 18-25...

  • Page 15: Steam Mode Settings Table

    STEAM MODE SUGGESTED TIME/TEMPS Time Temp Extra information Shake (mins) (°C) STEAM SETTINGS Fresh Shrimp 13-15 Fish 13-15 Rice 30-35 Broccoli 13-15 Corn 25-30 Ribs 30-35 Chicken Breast...

  • Page 16: Accessories/Spare Parts

    ACCESSORIES/SPARE PARTS Spare part replacements and accessories are available to purchase via: +44 (0) 333 220 6066 www.towerhousewares.co.uk PART NO DESCRIPTION IMAGE T1710101 Drawer T1710102 Crisper Grill Plate T1710103 Water Tank (Valve not included) T1710104 Water Tank Valve T1710105 Water Drip Tray T1710106 Excess Steam Collector Pot...

  • Page 17: Cleaning And Care

    CLEANING AND CARE THE SELF CLEANING FUNCTION WARNING! Do not immerse the appliance in water or any other liquid. • This unit is equipped with a self- cleaning function, which helps ensure NOTE: Clean the appliance after every use. the unit remains clean and in optimal GENERAL CLEANING functioning condition.
  • Page 18 EMPTYING THE WATER TANK EMPTYING THE WATER DRIP TRAY NOTE: Ensure the water tank is emptied after every use, or whenever the unit will • This unit is equipped with a drip tray, not be used for prolonged periods of time. which collects water when using the steam function.

  • Page 19: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION The air fryer Plug the appliance into an The appliance is not plugged in. does not work. earthed wall socket. key has not been Touch the key. touched. The drawer is open and the Close the drawer to automatically selected function is paused.
  • Page 20 PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION The appliance Smoking will be normal. is smoking. The ingredients have a high oil Follow the suggested settings content. or food manufacturer’s recommendations. White smoke is caused by grease heating up inside the fryer. The appliance contains grease from previous use.
  • Page 21 Ensure a sufficient amount of Not enough water in the water water has been added to the tank. water tank before attempting to steam cook with the unit. Too much water has been Refrain from pumping water pumped into the cooking into the cooking drawer while drawer, resulting in steam cooking, or from creating...

  • Page 22: Disposal Of The Unit / Customer Support

    DISPOSAL OF THE UNIT Appliances bearing the symbol shown The WEEE directive, introduced in August here may not be disposed of in domestic 2006, states that all electrical items must rubbish. You are required to dispose of old be recycled, rather than taken to landfill. electrical and electronic appliances like Please arrange to take this appliance to this separately.

  • Page 23: Recipes

    HOMEMADE FRIES 15 MINS 20 MINS INGREDIENTS METHOD 2 large potatoes 1. Peel the potatoes and cut into 1 cm thick such as Maris Piper chips. 1 tbsp sunflower oil 2. Place the chips into a pan and cover with cold water, bring to the boil then simmer Salt and black pepper for 10 minutes.
  • Page 24 STEAMED VEGETABLES WITH GARLIC BUTTER 10 MINS 10 MINS INGREDIENTS METHOD 1 head broccoli 1. Remove the stems from the broccoli, Wash (florets only) the vegetables as needed and chop them to the desired size. Add florets, 1 cup of 1 cup carrots carrots and 1 cup of sugar snap peas into the air fryer steamer.
  • Page 25 HONEY LIME CHICKEN WINGS 5 MINS 30 MINS INGREDIENTS METHOD 12 chicken wings 1. Place all the ingredients inside a large mixing bowl or zip-locked sealing bag. 2 tbsp soy sauce 2. Mix them well and marinate in the 2 tbsp honey refrigerator for at least 4 hours (preferably overnight.
  • Page 26 LEMON GARLIC SALMON 15 MINS 30 MINS INGREDIENTS METHOD 4 skin-on salmon fillets 1. Melt the butter and mix in the remaining ingredients to create a butter sauce. 4 tbsp butter 2. Evenly coat the fish in the sauce, 1 clove garlic, minced making sure the whole fish is covered, then place it on a baking tray 1 tsp salt...
  • Page 27 MOLTEN CHOCOLATE LAVA CAKE 10 MINS 25 MINS INGREDIENTS METHOD 100g dark chocolate chips 1. Met the chocolate and butter, continuously stirring to avoid burning the chocolate. 100g unsalted butter 2. Stir the flour into the mixture, mix it in 1 ½...
  • Page 28 We hope you enjoy your appliance for many years... This product is guaranteed for 12 months days of purchase. If you do not register from the date of original purchase. the product with us within the 28 day period, your product is guaranteed for If any defect arises due to faulty 1 year only.
