Summary of Contents for Eurocave Wine Art
- Page 1 Mode d’emploi User manual Bedienungsanleitung Modo de empleo...
- Page 2 Révélateur de saveurs. - The flavour enhancer. Aromen intensivierung. - Revelador de sabores. Appareil de mise Das Gerät, das Ihren à température de Wein auf Degustations- dégustation du vin temperatur bringt und in et de préservation des dem Sie offene Flaschen bouteilles ouvertes aufbewahren können El aparato para...
-
Page 3: Table Of Contents
Contents I - Description 2 - Safety recommendations p.5-6 3 - Protecting the environment and power saving 4 - Installing your appliance p.8-9 • General points • The two keys to enjoying wine at its best 5 - Commissioning your appliance p.9-12 •... -
Page 4: I - Description

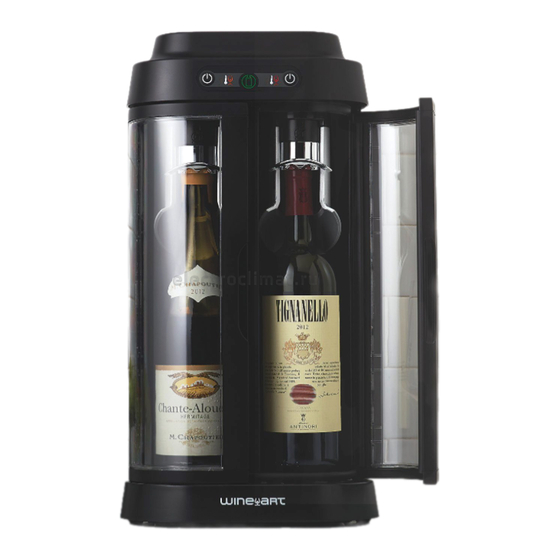

Description 1- Vacuum sealing and serving temperature 7- Red indicator light = red wine mode function elements 8- Yellow indicator light = white/rosé wine 2- Doors mode 3- Temperate compartments 9- Condensate collection tray 4- Control panel 10- External mains transformer 5- Compartment temperature control and 11- Ventilation inlets on either side and at on/off switch: red wine or white/rosé... -
Page 5: Safety Recommendations
Safety Recommendations Carefully read these operating instructions before using your appliance and store them for future reference. Using your appliance for purposes other than those specified in the operating instructions could damage it. - Never use your appliance for anything other than its specific purpose, as described in these operating instructions. -
Page 6: Protecting The Environment And Power Saving
Safety Recommendations The manufacturer cannot be held responsible for any damage caused by improper use or incorrect handling of the appliance and the warranty shall not apply in such cases. - This appliance is not designed to be used by persons (including children) with reduced physical, sensory or mental abilities, or by persons without experience or knowledge, except where they first receive instructions regarding use of the appliance or are supervised by somebody responsible for their safety. -
Page 7: Installing Your Appliance
With Wine Art, your opened wine retains all of its flavours for up to 10 days. Please note: Wine Art holds standard 75 cl wine bottles (292 - 336 mm in height). If your wine bottle is slightly smaller, you can increase the height of the bottle (for example by placing a coaster beneath it). -
Page 8: Commissioning Your Appliance
Wine must be protected from any contact with oxygen in order to preserve its tasting qualities. The Wine Art oxygen extraction system preserves your wine by drawing oxygen from the bottle, protecting the wine from oxidation. - Page 9 Commissioning your Appliance Precautions before use II – The control panel - The keys are used for turning the compartments on and off and bringing wine to the correct temperature. They function independently (see III). - The red temperature indicator lights indicate that the compartment is in red wine mode and the yellow indicator lights indicate that the compartment is in rosé/white wine mode.
- Page 10 Commissioning your Appliance that it is correctly aligned inside the compartment. - Close the door. - Press the key (located above the compartment in use) as many times as required, until the indicator light turns red for a bottle of red wine or yellow for a bottle of white/rosé...
- Page 11 Commissioning your Appliance The air vacuum system status light lets you know that your wine is being stored in the best conditions when it stops flashing (green indicator light permanently on). If the air vacuum system indicator light is red, refer to chapter 7. - Vacuum sealing a bottle repetitively can have an impact on the duration of preservation of wine.
-
Page 12: Everyday Maintenance
Everyday Maintenance Whenever carrying out maintenance, first unplug the appliance and refer to chapter V. Clean the inside and outside of the appliance using a soft damp cloth. Always use gentle cleaning products and never pour water onto the product. As part of normal operation, and according to weather conditions (temperature/ humidity), the appliance, by producing cold, may produce natural condensation. -
Page 13: Operating Anomalies
Operating Anomalies The air vacuum system red status light is flashing red. > Air vacuum system fault alarm. - the bottle may be incorrectly positioned: align the bottle correctly inside the compartment then restart the white/rosé wine or red wine mode by pressing the button. - Page 14 Operating Anomalies - the ventilation inlets are blocked (by an object or wall). It is necessary to create sufficient space around the appliance and ensure that the ventilation inlets are not blocked. (Min. 5 cm) The air vacuum plunger remains in the upper position. >...
-
Page 15: Technical Specifications
Technical Specifications - Size : Unpackaged Height (mm) Width (mm) Depth (mm) Weight (kg) 5,48 - Red wine serving temperature: 16/18°C - Rosé and white wine serving temperature: 8/10°C - External mains transformer AC 100-240V (according to the country) - 50/60Hz - 2.5 A - Class II - Power input: 70 W - Operating ambient temperature: 18°C - 30°C (at 30°C, the maximum ambient... - Page 16 Notes -16-...
