Mode d'emploi - Gamme Classic / Collection
User Manual - Classic / Collection Range
Gebrauchsanweisung - Reihe Classic / Collection
Modo de empleo - Gama Classic / Collection
Gebruiksaanwijzing - Aanbod Classic / Collection
Istruzioni per l'uso - Gamma Classic / Collection
N 83V2-0511.indd 1
23/06/11 11:50 AM
Advertisement
Table of Contents
Related Manuals for Eurocave V083
Summary of Contents for Eurocave V083

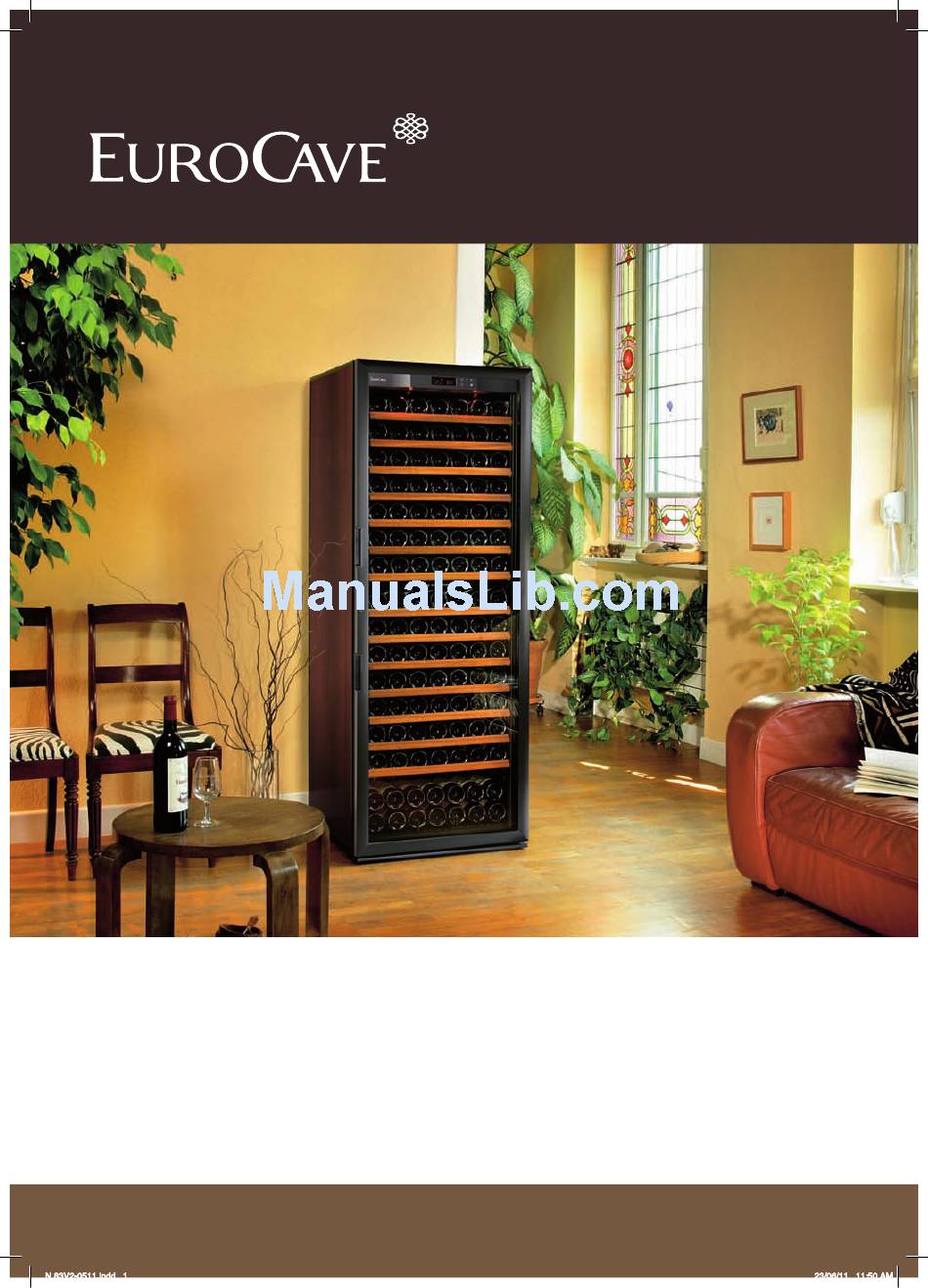

- Page 1 Mode d’emploi - Gamme Classic / Collection User Manual - Classic / Collection Range Gebrauchsanweisung - Reihe Classic / Collection Modo de empleo - Gama Classic / Collection Gebruiksaanwijzing - Aanbod Classic / Collection Istruzioni per l’uso - Gamma Classic / Collection N 83V2-0511.indd 1 23/06/11 11:50 AM...
- Page 2 Des solutions adaptées à tous vos besoins - Solutions to meet all your needs All Ihren Bedürfnissen angepaßt Lösungen - Soluciones adaptadas a todas sus necesidades rmoires à Abinets einklimAsChränke rmArios pArA inos Sowine Gamme 92 Classic Compact Première La Petite S013 Cuir - Leather - Leder - Cuero Collection Elite...
- Page 3 A constant flow of fresh, filtered air is essential for preventing bad odours and the development of mould. All of these essential criteria are met in the EuroCave wine cabinet that you have just purchased. Thank you for placing your confidence in us.
-
Page 4: Table Of Contents
6 - Layout - Storage 7 - Commissioning your wine cabinet I - Connecting II-A - Description (I-temperature model V083 - V183 - V283) III-A – Temperature setting II-B - Description (2-temperature model D183 - D283) III-B – Temperature setting II-C - Description (3-temperature model E183 - E283) III-C –... -
Page 5: Description Of Your Wine Cabinet
1 - d escription of your Wine caBinet Cabinet body 2 adjustable feet for levelling Control panel Lower hinge Lighting (2 LEDs) Product identification label Breather hole + active charcoal filter Location of the sensors in 2 and multi-temperature cabinets Door catch Location of the sensor in 3-temperature cabinets Sliding shelf... -
Page 6: Important Safety Recommendations
Contact your usual EuroCave retailer to change the power cable if it is damaged. It must be replaced by a EuroCave original manufacturer’s part. -
Page 7: Installing Your Wine Cabinet
(laundry room, utility room, bathroom...), • have a flat, stable floor, • be supplied with power (standard outlet, 16A, earthed with circuit If there is a problem contact your EuroCave retailer. breaker, 30 mA* (* not applicable to some countries). Precautions • •... -
Page 8: I - Reversible Door
5 - i nstallating your Wine caBinet I. Reversible door Upper hinge Lower hinge Caps Door pin Caps Door pin cap Torx screw Torx screw Door catch Allows you to change the direction in which your door opens. Proceed as follows (instructions for changing a right-hand door into a left-hand door): Turn the door through 180°. -
Page 9: Layout - Storage
6 - l ayout torage Your EuroCave wine cabinet was designed to be adaptable. In terms of storage capacity, it adapts to your needs: equipment can be changed or added to if your requirements change. Different types of storage Universal storage shelf... - Page 10 Changing the position of a sliding shelf • Remove all the bottles from the sliding shelf. • Remove the sliding shelf by sliding it towards you whilst lifting the front section. • Remove the slide guides from the walls, marking off the right guide and the left guide. •...
-
Page 11: Commissioning Your Wine Cabinet
Check your type of wine cabinet Press the keys at the same time. 1I-A. Description (1-temperature model V083 - V183 - V283) The tactile keys are very sensitive. There is no need to apply force, a light touch is sufficient to register the command. -
Page 12: Ii-B - Description (2-Temperature Model D183 - D283)
7 - c ommissioning your Wine caBinet II-B. Description (2-temperature model D183 - D283) The tactile keys are very sensitive. There is no need to apply force, a light touch is sufficient to register the command. Remember to remove your finger from the panel between presses. -
Page 13: Ii-C - Description (3-Temperature Model E183 - E283)
7 - c ommissioning your Wine caBinet II-C. Description (3-temperature model E183 - E283) The tactile keys are very sensitive. There is no need to apply force, a light touch is sufficient to register the command. Remember to remove your finger from the panel between presses. -
Page 14: Ii-D. Description (Multi-Temperature Model S083 - S183 - S283)
7 - c ommissioning your Wine caBinet II-D. Description (multi-temperature model S083 - S183 - S283) The tactile keys are very sensitive. There is no need to apply force, a light touch is sufficient to register the command. Remember to remove your finger from the panel between presses. -
Page 15: Relative Humidity Level Display
7 - c ommissioning your Wine caBinet IV. Relative humidity level display Your wine cabinet can measure humidity (only for 1 and 2-temperature If you want to increase the relative humidity inside your cabinet, pour the models), allowing you to see the relative humidity level inside your equivalent of one glass of water into the channel of the tray located on the appliance. -
Page 16: Everyday Maintenance
Replace the charcoal filter (see chapter 5). pictogram is displayed Temperature sensor Contact your EuroCave retailer. pictogram is displayed fault alarm If your appliance does not seem to be operating correctly, contact your EuroCave retailer. N 83V2-0511.indd 32 23/06/11 11:52 AM... -
Page 17: Technical Features
Glass door Opaque Glass door Min T° °C Max T° °C (Kg) (Kg) 1 temperature V083 + covering 970 V183 + covering 1462 V283 + covering 1762 2 temperatures D183 + covering 1462 D283 + covering 1762 3 temperatures E183 + covering...
