FRAME INSTALLATION

The drawer fronts are packed separately. Do not unpack them until the room is clear of hazards.

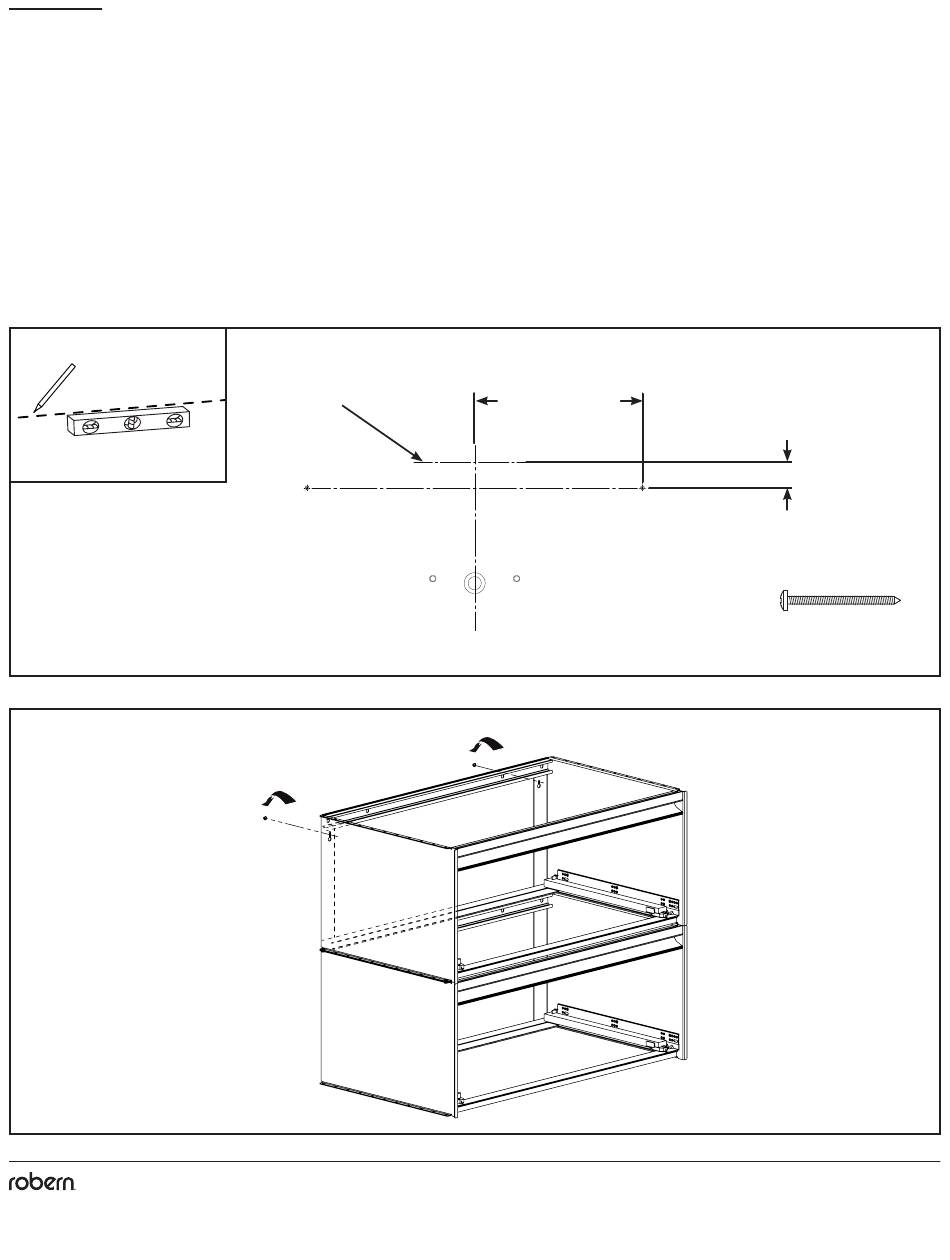

1. Mark the height for the vanity frame install on the finished wall and install two of the #10 x 2" (SS674) at the locations shown in
Figure 1. Do not install tight to the wall, leave 1/8" behind the head.
2. Place the vanity frame on the screws using the top left and right keyholes. See Figure 2. The keyhole on the left allows for up and
down adjustment.
WARNING: THESE SCREWS ARE NOT THE FINAL SUPPORT FOR THE VANITY! SEE NEXT PAGE FOR FINAL BOLT UP.
1
2
© 2016 Robern, Inc. 701 N. Wilson Ave. Bristol, PA 19007 U.S.A.
800.877.2376 www.robern.com
Installation instructions
Recommended vanity height
34-1/2"
(876 mm)
24" = 10"
(254 mm)
30" = 13"
(330 mm)
36" = 16"
(406 mm)
C L
5
2-1/2"
(64 mm)
[SS674]
(2) #10 x 2" Screw
Part no. 209-1275 rev. 04/19/23
Curated Cartesian H4 - 2 Drawer
