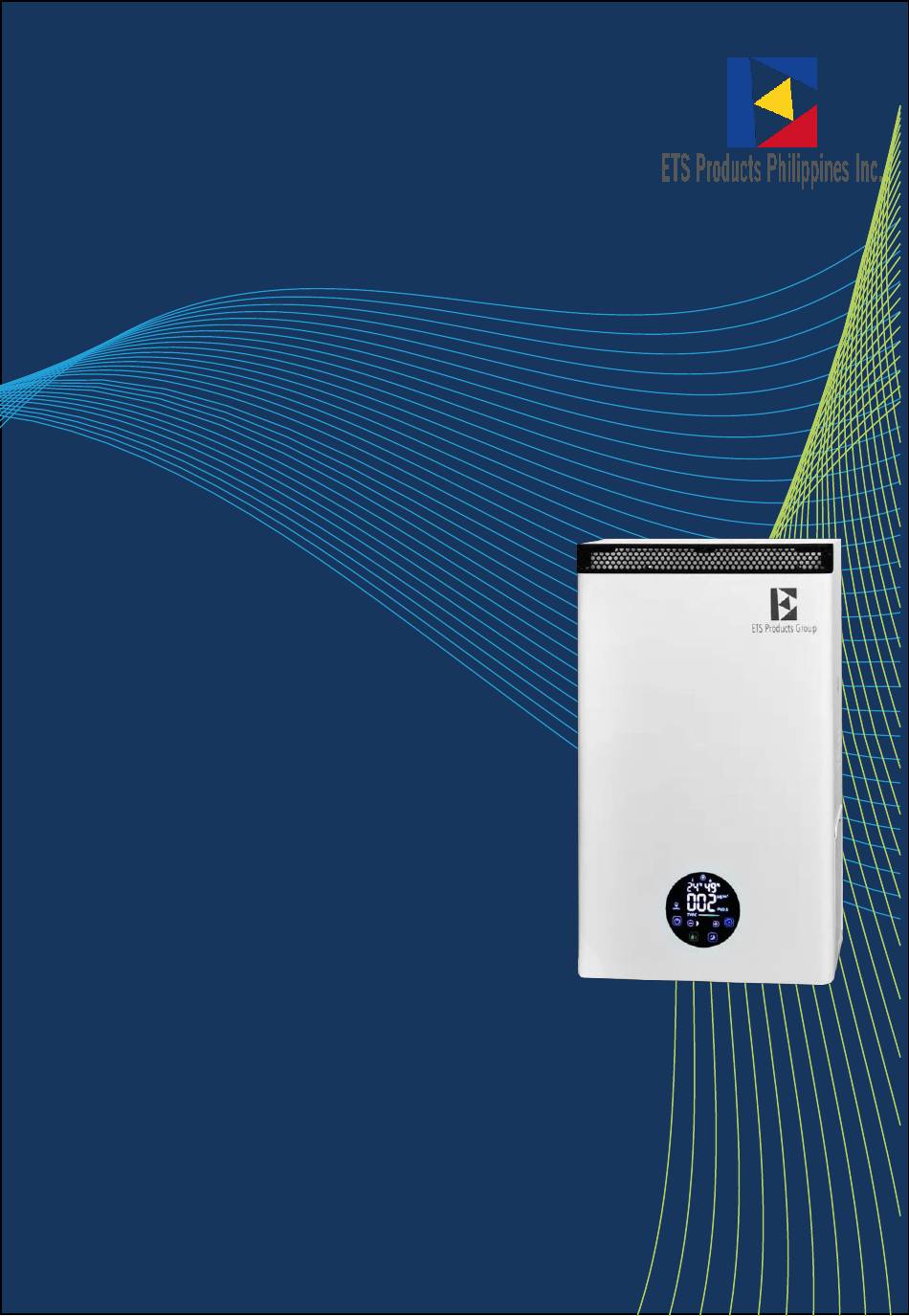

AP-30W
Operating instructions
Thank you for buying our air cleaner. Each
system is carefully manufactured and
subjected to a test run to ensure safety and
reliability. Please read the instructions
carefully before initial use and save them for
future reference.
www.ets-products.ph

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP-30W and is the answer not in the manual?

Questions and answers

Related Manuals for ETS AP-30W

Summary of Contents for ETS AP-30W

  • Page 1 AP-30W Operating instructions Thank you for buying our air cleaner. Each system is carefully manufactured and subjected to a test run to ensure safety and reliability. Please read the instructions carefully before initial use and save them for future reference.

  • Page 2: Table Of Contents

    AP-30W Table of contents Scope of delivery Specifications Areas of application System overview Wall mounting Remote control Control and display field Tuya app control Maintenance and cleaning Filter replacement Safety instructions Contact TuyaSmart App Control; available in Apple App Store &...

  • Page 3: Scope Of Delivery

    AP-30W Scope of delivery Air cleaner: Power cable: Operating instructions: Remote control: Mounting plate: Mounting dowels: Specifications Air volume (CADR): 200 m³/h Mains voltage*: 220 V / 240 V Frequency*: 50/60 Hz Power: 60 W Dimensions (mm): 520 x 310 x 140...

  • Page 4: Areas Of Application

    HEPA H13 filter, an activated carbon filter, a titanium dioxide photo catalyst filter, a UV sterilization lamp with a 254-nm wavelength, and a plasma generator. ETS air cleaning systems are used to effectively remove toxins, viruses, bacteria, pathogens, dust, allergens, and odors from the ambient air.

  • Page 5: System Overview

    AP-30W System overview 1 Maintenance panel 8 PM2.5-Sensor 2 TiO2 photocatalyst 9 Fan 3 Prefilter 10 Plasma generator 4 HEPA H13 filters and activated carbon filter 11 Primary housing 5 UV-C lamp 12 Air cleaner rear wall 6 TVOC 13 Wall-mounting plate...

  • Page 6: Wall Mounting

    AP-30W Wall mounting Before fixing the mounting plate to the wall, ensure that there are no pipes or electrical cables in the wall. 1. Leave more than 40 cm free to the right of the plate. Leave more than 20 cm free above and to the left of the plate.

  • Page 7: Remote Control

    AP-30W Remote control On/off Child safety Increase air volume Decrease air volume Auto mode Timer Sleep mode Plasma Sterilization not assigned...
  • Page 8 AP-30W Touchscreen display WiFi Temperature Humidity Sterilization On/off Timer Fan Speed Sleep mode Auto mode Child safety On/off Standby mode is green. On mode is white. Touch the On/Off icon to switch the air cleaner on or off. Standard mode is manual mode with Air Volume Level 1 after the air cleaner is switched on.
  • Page 9 AP-30W Timer Switched off –white. Switched on – green. The air cleaner can be switched off automatically between 1 to 9 hours. Child safety Switched on – lit up white. Touch the screen to switch on child safety, and touch sleep mode and the timer for three seconds to switch it back off.

  • Page 10: Tuya App Control

    AP-30W Tuya Smart App Control 1. Scan the QR code in order to download and install the Tuya Smart App. 2. Get the Tuya Smart App started by clicking on„log in“ (or sign up for the first time) or „try now“ (some of the functions might be not accessible yet).
  • Page 11 AP-30W 4. Click „ADD DEVICE“ then select „AUTO SCAN“ and enable „access location, Wifi and Bluetooth“. Please ensure that the device and your smartphone is using the same network. Click on „AUTO SCAN“ to find available devices.
  • Page 12 AP-30W 5. Select the new device on your screen and connect it with the system. 6. Now you have full control of the device via your smartphone...

  • Page 13: Maintenance And Cleaning

    AP-30W Maintenance and cleaning To clean the air, the system uses several filters and air cleaning systems simultaneously: Prefilter The prefilter filters out large particles such as human hair, animal hair, lint, etc. HEPA H13 filter The HEPA H13 filter removes smoke, dust, pollen, allergens, toxins, and fine particles larger than 0.3 μm.
  • Page 14 AP-30W Use only original replacement parts. They have been harmonized with device operation. Using third-party replacement parts can impair cleaning performance. Doing so invalidates the guarantee and the test results from the microbiological institute. Switch off the device and pull the power plug before working on the machine to avoid danger of electric shock.

  • Page 15: Filter Replacement

    AP-30W Filter replacement To replace the filter, open the maintenance panel on the right-hand side with a Phillips screwdriver. The individual filters can be pulled out so that they can be replaced. Note: Re-insert the filters as they were installed. The prefilter (netting) goes in the lower slot.

  • Page 16: Safety Instructions

    AP-30W Safety instructions • Before use, the rear housing cover must be completely closed. • Do not open the rear cover or the maintenance panel while the device is in use. • Before connecting the machine to the power source, ensure that the voltage indicated on the type plate is the same as the mains voltage in your region.

  • Page 17: Contact

    AP-30W Manufacturer ETS Products Philippines Inc. Berthaphil 4, Warehouse 2C Civil Aviation Complex Clark Clark Freeport, Pampanga 2023, Philippines Contact Phone +63 (0)45 499 56 07 E-Mail inquiry@ets-products.ph Internet www.ets-products.ph You can find more information and technical data about air cleaning systems on...
