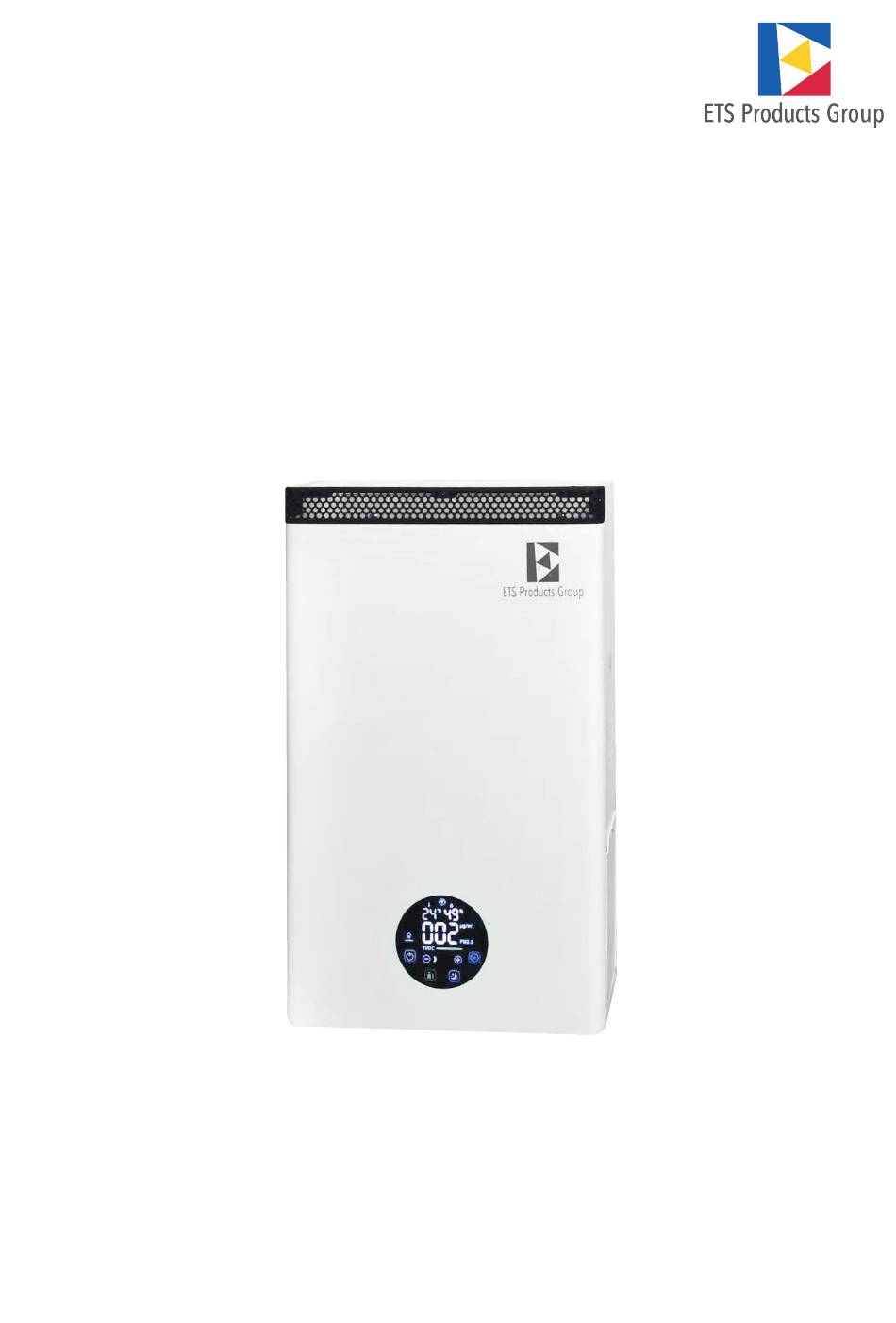

AP-30W
Operating instructions
Thank you for buying our air cleaner. Each system is carefully manufactured and subjected
to a test run to ensure safety and reliability. Please read the instructions carefully before
initial use and save them for future reference.
www.ets-products.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP-30W and is the answer not in the manual?

Questions and answers

Related Manuals for ETS AP-30W

Summary of Contents for ETS AP-30W

  • Page 1 AP-30W Operating instructions Thank you for buying our air cleaner. Each system is carefully manufactured and subjected to a test run to ensure safety and reliability. Please read the instructions carefully before initial use and save them for future reference.

  • Page 2: Table Of Contents

    Table of contents: Scope of delivery Page 2 Specifi cati ons Page 2 Areas of applicati on Page 3 System overview Page 3 Wall mounti ng Page 4 Control and display fi eld Page 5 Remote control Page 6 Tuya app control Page 7 Maintenance and cleaning Page 11...

  • Page 3: Areas Of Application

    UV sterilization lamp with a 254-nm wavelength, and a plasma generator. ETS air cleaning systems are used to effectively remove toxins, viruses, bacteria, pathogens, dust, allergens, and odors from the ambient air.

  • Page 4: Wall Mounting

    Wall mounting: Before fixing the mounting plate to the wall, ensure that there are no pipes or electrical cables in the wall. 1. Leave more than 40 cm free to the right of the > 40cm plate. Leave more than 20 cm free above and to >...

  • Page 5: Control And Display Field

    Control and display field: WiFi Temperature Humidity Sterilization Timer On/off Air volume Auto mode Sleep mode Child safety Touchscreen-Display A. On/off: Standby mode is green. On mode is white. Touch the On/off icon to switch the air cleaner on or off. Standard mode is manual mode with Air Volume Level 1 after the air cleaner is switched on.

  • Page 6: Remote Control

    Remote control: On/off Child safety Increase air volume Auto mode Increase air volume Dewcrease air volume Dewcrease air volume Sleep mode Timer Plasma Sterilization Not assiggned...

  • Page 7: Tuya App Control

    Tuya App control 3.Connect the device. Click Switch on 1. Scan the QR code to download the Tuya app or search for it. When it has been and press for five seconds on the con- downloaded, install it. trol panel until the light on the control panel light begins to flash.
  • Page 8 4. Click AUTO SCAN; start location ser- 5. Click “NEXT” when the app has located vices, WiFi (ensure that the cell phone and the available devices. the device are using the same network), and Bluetooth; and click AUTO SCAN to search for available devices nearby.
  • Page 9 8. The app control interface now appears. Click the icons to control the device remo- tely. You can now control this device via How other users control the device via app. 1. In the settings interface, click next 2. Click “Enable device” to enable the to the device name.
  • Page 10 3. Click “Enable a new user” to enter ano- ther user’s account name. 4. If “Added successfully” is displayed, the other user can now control the device, too.

  • Page 11: Maintenance And Cleaning

    Maintenance and cleaning: HEPA filter: The HEPA filter removes smoke, dust, pollen, allergens, toxins, and fine particles larger than 0.3 μm. Activated carbon filter: The activated carbon filter removes gases such as benzene and methanol, odors, etc. Photocatalyst TiO filter and UV-C lamp: Eliminates viruses and bacteria in reactions with the titanium oxide coating in conjunction with UV-C light with a wavelength of 253.7 nm.

  • Page 12: Filter Replacement

    Phone: +49 2204 967360 Berthaphil 4 Warehouse 2C E-Mail: europe@ets-products.com Civil Aviation Complex Clark Internet: www.ets-products.com Clark Freeport, Pampanga 2023 Philippines You can find more information and technical data about air clea- An ETS Products Group company ning systems on our website.
