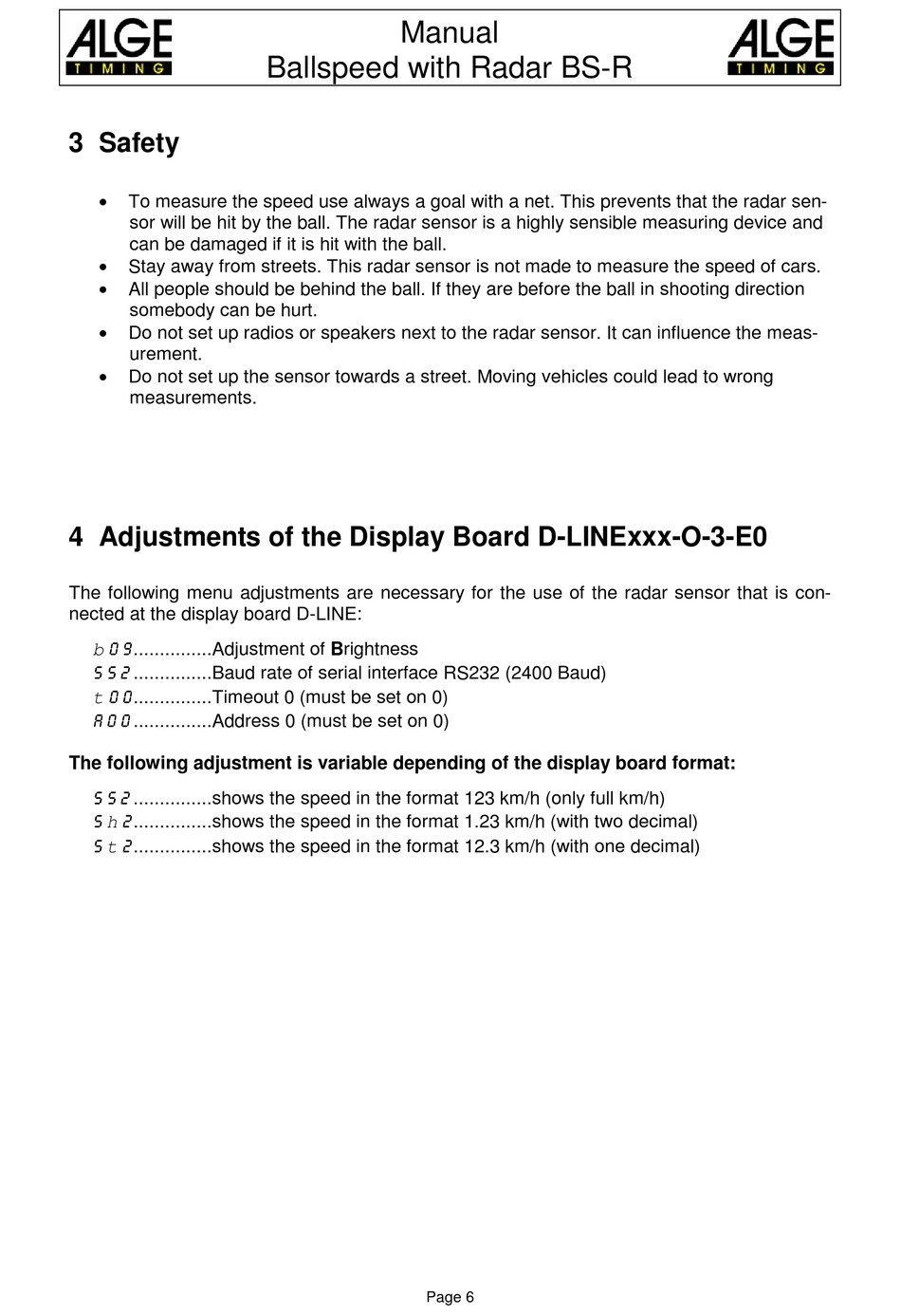

3 Safety

•
To measure the speed use always a goal with a net. This prevents that the radar sen-
sor will be hit by the ball. The radar sensor is a highly sensible measuring device and
can be damaged if it is hit with the ball.
•
Stay away from streets. This radar sensor is not made to measure the speed of cars.
•
All people should be behind the ball. If they are before the ball in shooting direction
somebody can be hurt.
•
Do not set up radios or speakers next to the radar sensor. It can influence the meas-
urement.
•
Do not set up the sensor towards a street. Moving vehicles could lead to wrong
measurements.

4 Adjustments of the Display Board D-LINExxx-O-3-E0

The following menu adjustments are necessary for the use of the radar sensor that is con-
nected at the display board D-LINE:
b 0 9 ...............Adjustment of Brightness
S S 2 ...............Baud rate of serial interface RS232 (2400 Baud)
t 0 0 ...............Timeout 0 (must be set on 0)
A 0 0 ...............Address 0 (must be set on 0)
The following adjustment is variable depending of the display board format:
S S 2 ...............shows the speed in the format 123 km/h (only full km/h)
S h 2 ...............shows the speed in the format 1.23 km/h (with two decimal)
S t 2 ...............shows the speed in the format 12.3 km/h (with one decimal)
