General - ALGE-Timing Ballspeed with Radar BS-R Manual

1 General

Ballspeed BS-R is a professional speed measurement system for balls. It is precise, rugged
and simple to operate. It can be used to measure the Ballspeed of most ball sports. Depend-
ing on the sport the radar sensor might have sport specific adjustments. The following manu-
al is specified for football (soccer).
The Ballspeed System BS-R includes the following components:
1 x Radar Sensor Speedmaster
1 x Display Board D-LINE150-O-3-E0 (150 cm figure height) or
D-LINE250-O-3-E0 (250 cm figure height)
1 Tripod TRI128
1 Cable 288-10 (between display board and radar sensor)
1 Main Plug K-NETZ4 for display board
Manual

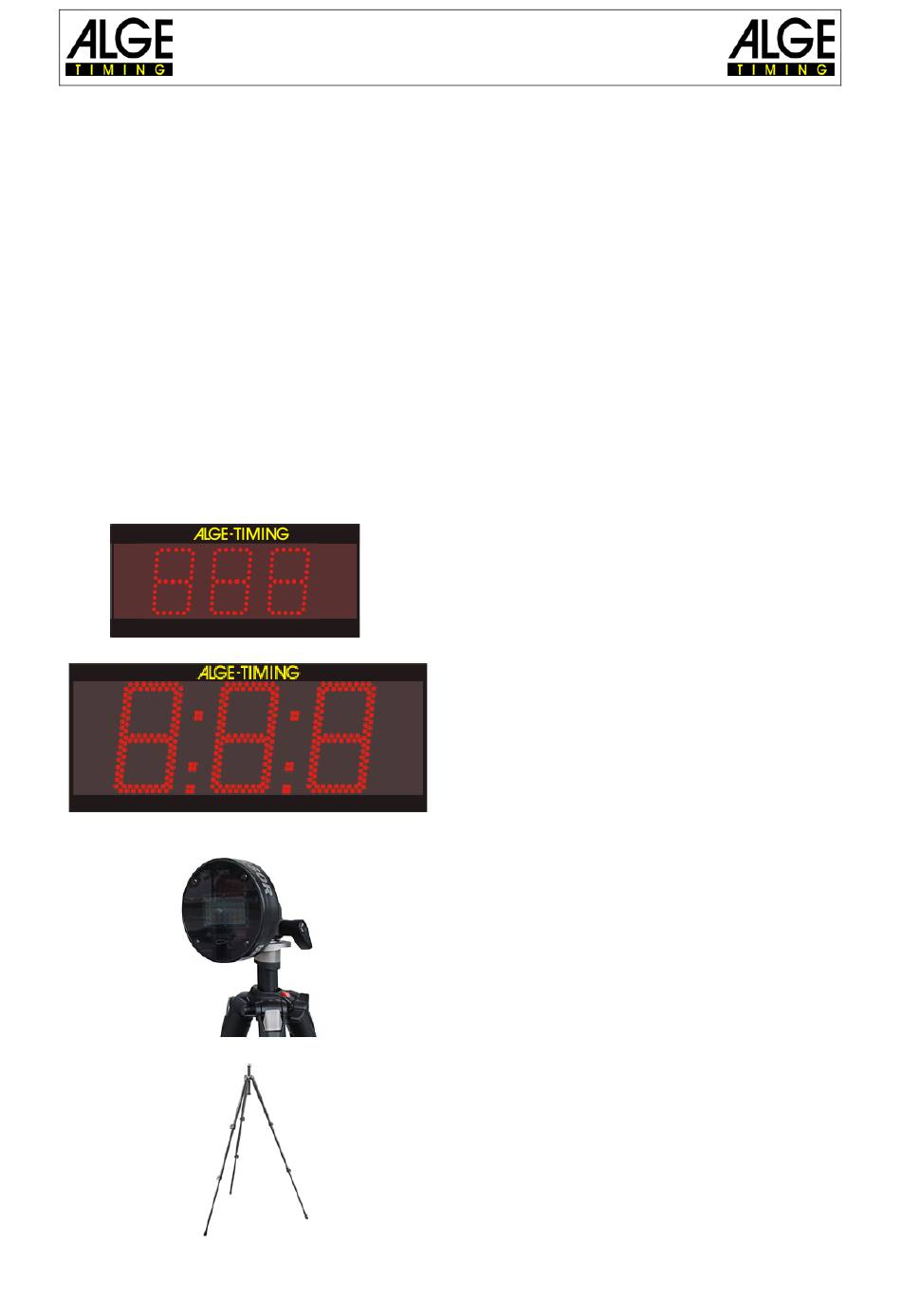

Ballspeed with Radar BS-R
Page 4
D-LINE150-O-3-E0
D-LINE250-O-3-E0
Radar Sensor Speedmaster
Tripod TRI128
