Summary of Contents for ALGE-Timing Ballspeed with Radar BS-R

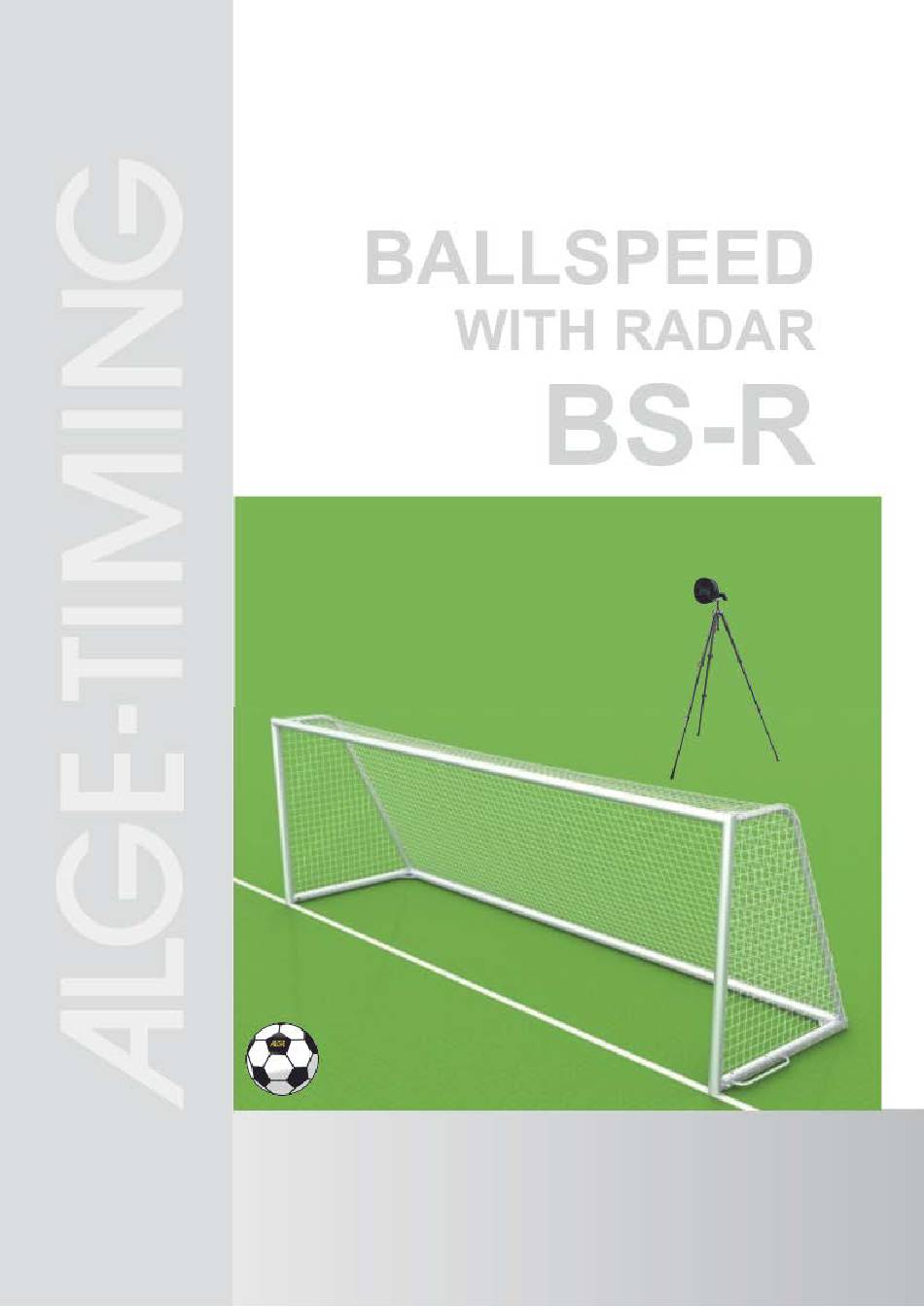

- Page 1 Version-E23-02-20 Manual...
- Page 2 Important Information General Before using your ALGE-TIMING device read the complete manual carefully. It is part of the device and contains important information about installation, safety and its intended use. This manual cannot cov- er all conceivable applications. For further information or in case of problems that are mentioned not at all or not sufficiently detailed, please contact your ALGE-TIMING representative.
- Page 3 Manual Ballspeed with Radar BS-R TABLE OF CONTENTS General ......................... 4 Commissioning ......................5 Safety ........................... 6 Adjustments of the Display Board D-LINExxx-O-3-E0 ..........6 Technical Data ......................7 Power Supply ......................7 5.1.1 Mains ............................... 7 5.1.2 External Battery ..........................7...
- Page 4 Manual Ballspeed with Radar BS-R 1 General Ballspeed BS-R is a professional speed measurement system for balls. It is precise, rugged and simple to operate. It can be used to measure the Ballspeed of most ball sports. Depend- ing on the sport the radar sensor might have sport specific adjustments. The following manu- al is specified for football (soccer).
- Page 5 Manual Ballspeed with Radar BS-R 2 Commissioning • It measure shoots on the goal with speeds between 30 km/h and 200 km/h. • The radar sensor measures the speed of the ball moving frontal against it. • To get the best and most accurate results it is necessary that the ball is moved as straight as possible in direction to the radar sensor.
- Page 6 Manual Ballspeed with Radar BS-R 3 Safety • To measure the speed use always a goal with a net. This prevents that the radar sen- sor will be hit by the ball. The radar sensor is a highly sensible measuring device and can be damaged if it is hit with the ball.
- Page 7 Manual Ballspeed with Radar BS-R 5 Technical Data internal button to set the display mode Amphenol socket: 1 +10 - 12 VAC (external supply) 2 ground 3 no function E RS232 Data in from Radar Timing mode (no function for Radar)
- Page 8 Manual Ballspeed with Radar BS-R Subject to changes Copyright by ALGE-TIMING GmbH Rotkreuzstrasse 39 6890 Lustenau / Austria www.alge-timing.com Page 8...
