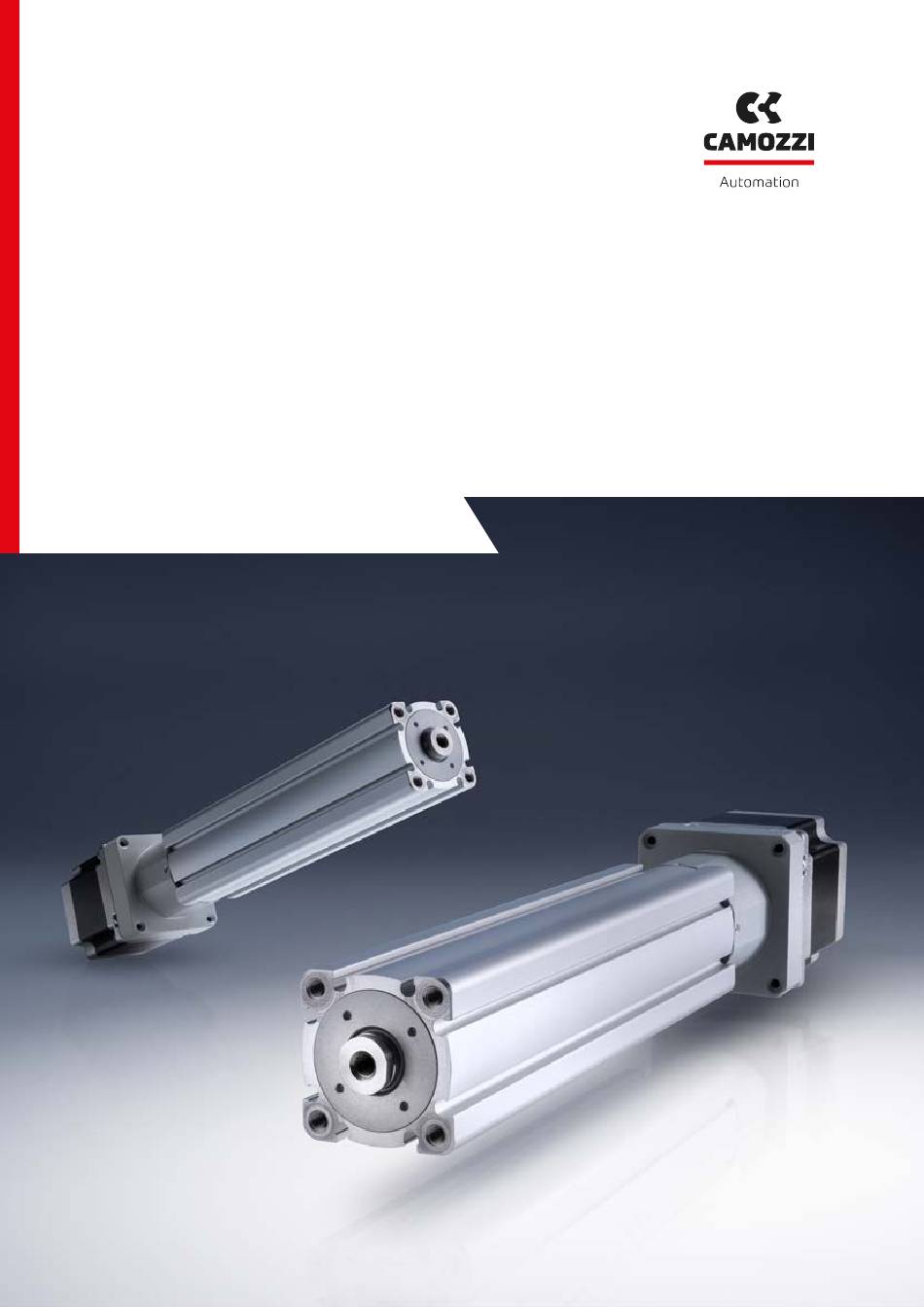

- Page 1 USE AND MAINTENANCE MANUAL SERIES 3E ELECTROMECHANICAL CYLINDERS...
-
Page 2: Table Of Contents
Series 3E electromechanical cylinders Contents Introduction General safety warnings Reference documents Componenets and materials Coding example Transport and packaging Storage Assembly Installation conditions Loads not allowed Assembly position Accessory assembly Possible support configurations Assembly of rod accessories Assembly with in-line motor Assembly the flexible coupling In-parallel assembly Parts list for assembly with in-parallel motor... -
Page 3: Introduction
© All rights of reproduction, distribution and use of this document are certain conditions. property of Camozzi Automation S.p.A. The original instructions were written in Italian. General safety warnings - All provisions, laws and regulations valid in the place of destination of them. -
Page 4: Componenets And Materials
Series 3E electromechanical cylinders Components and materials LIST OF COMPONENTS PARTS MATERIAL Rod nut Zinc-plated steel Front coupling piece Anodized aluminium alloy Front coupling piece Stainless steel Rod seal Bushing Technopolymer Stainless steel Magnet Plastoferrite Guiding element BS screw Aluminium alloy Bearing Steel 10 Rear end cap... -
Page 5: Transport And Packaging
Series 3E electromechanical cylinders Transport and packaging The product packaging is suitable for handling and lifting with Accidental falling and/or crushing of the packaging may compromise the warehouse equipment. functionality of the product and cause serious injury to the handler. Check the integrity of the packaging before handling. -
Page 6: Installation Conditions
ISO 13849-1 standard. In case of different applications, contact Camozzi Automation S.p.A. During use, temperature must be between 0°C and 50°C. Assembly position... -
Page 7: Accessory Assembly
Series 3E electromechanical cylinders Accessory assembly... -
Page 8: Possible Support Configurations
Series 3E electromechanical cylinders Possible support configurations The Series 3E electromechanical cylinder can be fixed with the CAUTION: In the support is assembled with in-parallel motor configuration or appropriate supports: in-line motor configuration for the NEMA 17 stepper motor, specific screws 1 - On the front end cap of the Series 3E electromechanical cylinder;... -
Page 9: Assembly Of Rod Accessories
Series 3E electromechanical cylinders Assembly of rod accessories • It is forbidden to subject the cylinder rod to the torsion generated by the tightening torque of the front accessories. Assembly with in-line motor Series 3E Electromechanical cylinder Half-coupling Elastomeric coupling Motor housing nuts Motor screws Housing... - Page 10 Series 3E electromechanical cylinders STEP 2 Following the same preocedure as previously, assemble the half- coupling (7) onto the motor shaft (8). STEP 3 Once the various parts have been pre-assembled, proceed by fixing the motor housing (6), on the Series 3E electromechanical cylinder (1). As shown in the diagram, the cylinder is equipped with a pin on the rear interface, deisgned to ensure correct orientation of the accessory during assembly.
-
Page 11: Assembly The Flexible Coupling
In the image you can see the correct position, where the highlighted parts. If a motor not included in the Camozzi catalogue is to be conncected, parts are perfectly aligned. -
Page 12: In-Parallel Assembly
Series 3E electromechanical cylinders In-parallel assembly Series 3E electromechanical cylinder Motor Cylinder locking set Cylinder pulley Front flange Motor screw Cylinder fixing nuts Motor pulley 10 Belt 11 Motor locking set 12 Rear cover 13 Kit closing screws 14 Bracket fixing screws STEP 1 Assemble the pulley (4) and the locking set (3) on the tang of the Series 3E cylinder (1) according to the instructions in the paragraph "ASSEMBLING... -
Page 13: Parts List For Assembly With In-Parallel Motor
Series 3E electromechanical cylinders STEP 4 At this point, to fit the belt (10), correctly, it is recommended to tilt the motor (2) to reduce the distance between the pulleys. STEP 5 Once the belt has been fitted, fix the motor (2), to the front flange (5) with the screws (2). -
Page 14: Assembly Of Self-Centring Locking Device And Pulley Adjustment
D MS [Nm] MS [Nm] before proceeding with assembly. 5x16 NB: the dimensions shown in the table refer to the motors in the Camozzi 6,35x16 catalogue, the compartibility of the kits with different motors is not 8x18 guaranteed. -
Page 15: Mainteneance And Repair
In case of cylinder anomalies and the need for replacement of parts Automation S.p.A. staff. within it, refer to the Camozzi Automation S.p.A. Customer Service For maintenance that involves opening Series 3E electromechanical who will assess how to intervene and countermeasures to be taken. - Page 16 Contacts Camozzi Automation S.p.A. Via Eritrea, 20/I 25126 Brescia - Italy Tel.+39 030 37921 www.camozzi.com Customer Service Tel.+39 030 3792790 service@camozzi.com Product Certification Information concerning product certifications, EC standards, conformity declarations and instructions productcertification@camozzi.com A Camozzi Group Company www.camozzi.com...
