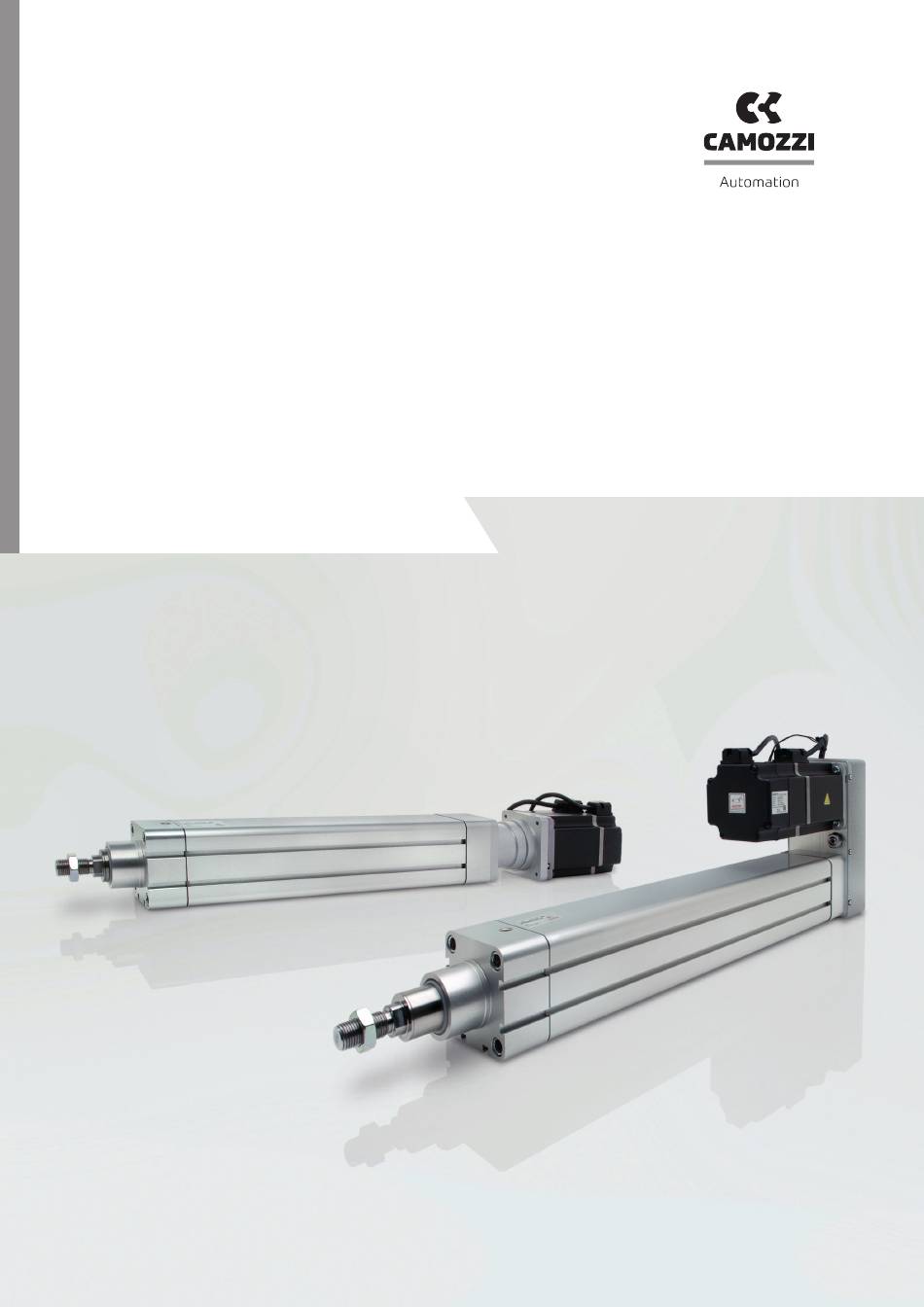

- Page 1 USE AND MAINTENANCE MANUAL SERIES 6E ELECTROMECHANICAL CYLINDERS...
-
Page 2: Table Of Contents
Series 6E electromechanical cylinders Contents Introduction General safety warnings Reference documents Components and materials Coding Transport and packaging Storage Installation Installation conditions Loads not permitted Installation position Pressure equalising hole Accessories installation Available support configurations Installation of rod accessories Installation with motor in line Installation with gearbox in line List of components for installation with motor/gearbox in line Flexible coupling assembly... -
Page 3: Introduction
- In case of using the Series 5E electromechanical axis in potentially planned works. corrosive atmospheres, please contact Camozzi Automation S.p.A. - This document provides warnings relating to the Series 6E - Do not cover the Series 5E electromechanical axis with paint or other electromechanical cylinder. -
Page 4: Components And Materials
Series 6E electromechanical cylinders Components and materials PARTS MATERIALS Rod nut Zinc-plated steel Rod seal Bushing Technopolymer Front endcap Anodized aluminium alloy Stainless steel Magnet Plastoferrite Extrusion profile Anodized aluminium alloy Guiding element BS screw Aluminium alloy End stroke seals 10 Bearing Steel 11 Rear endcap... -
Page 5: Transport And Packaging
Installation conditions The general catalogue for the Series 6E electromechanical cylinder In case of divergent applications, please contact Camozzi Automation S.p.A. contains the correct usage conditions and the technical information. The temperature during operation must be between 0 °C and 50°C. -
Page 6: Loads Not Permitted
• The structure of the Series 6E electromechanical cylinder cannot be used for installing other components. For applications of this kind please contact Camozzi Automation S.p.A. Installation position In case of vertical or diagonal installation it is necessary to use auto-braking... -
Page 7: Available Support Configurations
Series 6E electromechanical cylinders Available support configurations It is possible to fix the Series 6E electromechanical cylinder with the (assembly available only for size 32, 40, 50 and 63). appropriate supports: 3 - On the cover assembly with the motor parallel. 1 - On the front end cap of the Series 6E electromechanical cylinder;... -
Page 8: Installation With Motor In Line
Series 6E electromechanical cylinders Installation with motor in line Series 6E electromechanical cylinder Adapter screw Rear end cap seal Adapter-Flange interface seal Support Bracket Motor flange Guide ring Motor flange screw Elastomeric coupling Motor seal Half coupling Electric motor Half coupling screw washer Adapter Motor screw... - Page 9 Series 6E electromechanical cylinders STEP 2 Assemble the adapter (8) on the rear side of the Series 6E electromechanical cylinder (1) using appropriate centering. In case of IP65, make sure to put the rear end cap seal (2) in between the support bracket (3) and the housing (8).
-
Page 10: Installation With Gearbox In Line
Series 6E electromechanical cylinders Installation with gearbox in line Series 6E electromechanical cylinder Adapter screw Rear end cap seal Adapter-Flange interface seal Support Bracket Gearbox screw Guide ring Washer Elastomeric coupling Gearbox flange Half coupling Gearbox seal Half coupling screw Gearbox flange screw Adapter Gearbox... -
Page 11: List Of Components For Installation With Motor/Gearbox In Line
Series 6E electromechanical cylinders STEP 4 Insert the remaining half coupling (6) on the gearbox shaft and secure with the screw (7) provided as indicated in the section “Flexible coupling assembly”. In the end, insert the elastomeric coupling (5). STEP 5 Assemble the gearbox unit with the cylinder unit, using the appropriate centring, paying particular attention to coupling the half couplings. -
Page 12: Flexible Coupling Assembly
Series 6E electromechanical cylinders Flexible coupling assembly SERIES 6E ELECTROMECHANICAL CYLINDER ELECTRIC MOTOR SUPPORT HC: distance between centring of the rear end cap and the internal stop of the flexible coupling. MS: Tightening torques to be used for fixing HM: distance between centring of the motor the half couplings onto the relative shafts. -
Page 13: Parallel Installation
Series 6E electromechanical cylinders Parallel installation Locking screws Locking washers Cover fixing screws Rear flange Toothed belt Pulley fixing screws flange of the pulley Pulley Cylinder locking set 10 Motor locking set 11 Interface seal 12 Cylinder fixing screws 13 Pin 14 Motor washer 15 belt tensioning block 16 Threaded plug... - Page 14 Series 6E electromechanical cylinders STEP 4 After having adequately positioned the Series 6E electromechanical cylinder (32), assemble the front flange (18) on the rear side of the cylinder, using the appropriate centring. Put the cylinder seal (21) in between, between the front flange (18) and the Series 6E electromechanical cylinder (32).
-
Page 15: List Of Components For Installation With Motor In Parallel
Series 6E electromechanical cylinders List of components for installation with motor in parallel PM-6E-32-0100P PM-6E-32-0024P PM-6E-40-0400P PM-6E-40-0024P Locking screws M6X10 SCREW UNI 7380 M6X10 SCREW UNI 7380 M6X10 SCREW UNI 7380 M6X10 SCREW UNI 7380 Washers M6 WASHER M6 WASHER M6 WASHER M6 WASHER Shell securing screws... -
Page 16: Installation Of Self-Centering Locking Set And Pulley Adjustment
Series 6E electromechanical cylinders Installation of self-centering locking set and pulley adjustment Position the locking set onto the pulley hub, taking care to keep the entire locking set within the length of the hub. Assemble it onto the shaft taking care to maintain the H dimension as indicated in the table below. -
Page 17: Installation And Positioning Of The Cst/Csh Magnetic Sensors
Series 6E electromechanical cylinders STEP 2 Partly take the rod off the cylinder and fix it on the anti-rotation guide units (1) with the appropriate coupling. N.B. It is forbidden to submit the cylinder rod to torsion due to the torque of the front coupling (See paragraph “Installation of rod accessories”). -
Page 18: Maintenance And Repair
(order code 70-7902-0032) in order to improve the system’s durability. Dismantling and parts replacement In case of cylinder anomalies and the need for replacement of Disassembly and replacement of parts is only permitted by Camozzi component units within it, refer to the Camozzi Automation S.p.A. Automation S.p.A. staff. - Page 20 Camozzi Automation S.p.A. Via Eritrea, 20/I 25126 Brescia - Italy Tel. +39 030 37921 www.camozzi.com Customer Service Tel. +39 030 3792790 service@camozzi.com Product Certification Information concerning product certifications, EC standards, conformity declarations and instructions productcertification@camozzi.com A Camozzi Group Company www.camozzi.com...
