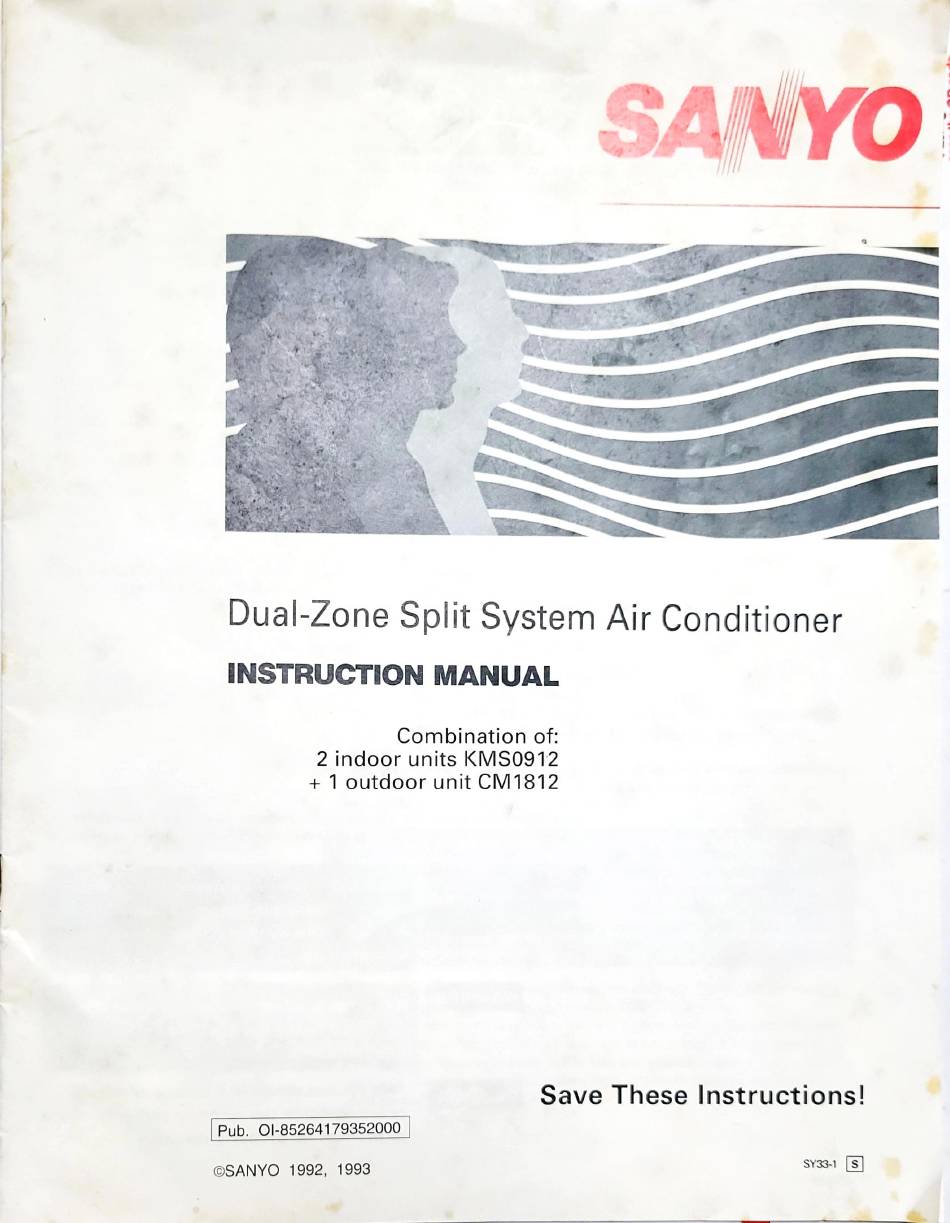

- Page 1 SA&YO Dual-Zone Split System Air Conditioner INSTRUCTION MANUAL Combination of: 2 indoor units KMS0912 + 1 outdoor unit CM 1812 Save These Instructions! Pub. 01-85264179352000 SY33-1 1992, 1993 OSANYO...
-
Page 2: Table Of Contents
Contents Product Information . Alert symbols..„..- Installation Location Electrical Requirements . Safety Instructions ..... Names of Parts Using the Remote Control Unit. Operation with the Remote Control Unit 1. Cooling. 2. Adjusting the Fan Speed . 3. Fan Only....Operation without the Rornote Control I-JOIt .. -
Page 3: Installation Location
Installation Location We recommend that this air conditioner must be installed property by a qualified installation technician in accordance with the Installation Instructions provided with the unit. Before installation, check that the voltage of the electric supply in your home or office is the same as the voltaqe shown on the nameplate. -
Page 4: Names Of Parts
Names of Parts INDOOR UNIT Air intake Air outlet Remote control Air intake unit Drain hose Air outlet Remote control unit Drain hose Refrigerant tubes OUTDOOR UNIT This illustration is based on the external view of a standard model. NOTE: Consequently, the shape may differ from that of the air conditioner which you have selected. - Page 5 Unit Display and Operation Selector INDOOR UNIT REMOTE CONTROL receiver SANYO TEST TIMER OPERATION lamp Flap Operation selector TIMER lamp REMOTE CONTROL This section picks up infrared signals from the remote control unit receiver (transmitter) . OPERATION lamp This lights when the system is in the continuous COOL or FAN mode.
- Page 6 NIGHT SETBACK button MED. AUTO Fan speed selector switch Cover FAN SPEED SANYO SENSOR SENSOR When you press the buttons or move the switches on the remote control Transmitter unit, the lamp at the tip of the unit flashes to transmit the setting changes to the receiver in the air conditioner.
- Page 7 Remote Control Unit (continued) MODE selector switch FAN: he air conditioner works only as a c.trculation fan. COOL: ho air conditioner makes the room cooler. Timer selector switch N0RM: does not OFF: i he atr conditioner at the time. (.oruflttonor starts at the time.
-
Page 8: Using The Remote Control Unit
Using the Remote Control Unit How to Install Batteries Slide to open the back of the remote control ornit in the Press and slide tho direction of tho arrow. 2. Install two AAA alkaline? batterios. Make r,wre the batter'es point in the direction marked in the battery 3. -
Page 9: Operation With The Remote Control Unit
Operation with the Remote Control Unit TEM@ STEP C)N4/OfFO COOLER STEP 4 FAN COOL TIMER NORM PROGRAM CLOCK OFF 0M CZZZD agijij— PROGRAM TIMER HIGH NIGHT SETBACK MED AUTO STEP 5 FAN SPEED Check that the circuit breaker on the power panel is turned on and the NOTE: operation selector of the indoor unit is in the ON position. -
Page 10: Adjusting The Fan Speed
Operation with the Remote Control Unit (continued) CD CO FAN corn- TIMEP NORM. PROGRAM CI_OCK ON CSC-D TIMER STEP 1 LOW HIGH MED. AUTO FAN SPEED Night Setback Mode STEP 1: Press the NIGHT SETBACK button in cooling. in Cooling mark appears at the lower left of the display. -
Page 11: Fan Only
INDOOR UNIT below. 1. When the air conditioner is stopped. SANYO If you want to turn on the air conditioner, switch the operation selector to the OFF position, and then to the ON position. The set temp. and fan speed are automatically set NOTE;... -
Page 12: Setting The
Setting the Timer (Example) To set to 9:10 p.m. 1 ) How to set the present time Indication Operation flashing 1. Press the PROGRAM button three times. The time indication alone flashes. flashing Press the HH button until 9 and displayed. -
Page 13: Adjusting The Airflow Direction
Power failure during timer operation NOTE: If power failure occurs, the time counted up to that point will become void. After the power is applied, the timer newly starts counting at the set time. Adjusting the Airflow Direction A. Horizontal Indoor Unit The horizontal airflow can be adjusted by moving the vertical vane to the left or right. -
Page 14: Care And Cleaning
Care and Cleaning 1. For safety, be sure to turn the air conditioner off and also to WARNING: disconnect the power before cleaning. 2. Do not pour water on the indoor unit to clean it. This will damage the internal components and cause an electric shock -3 hazard. -
Page 15: Troubleshooting
