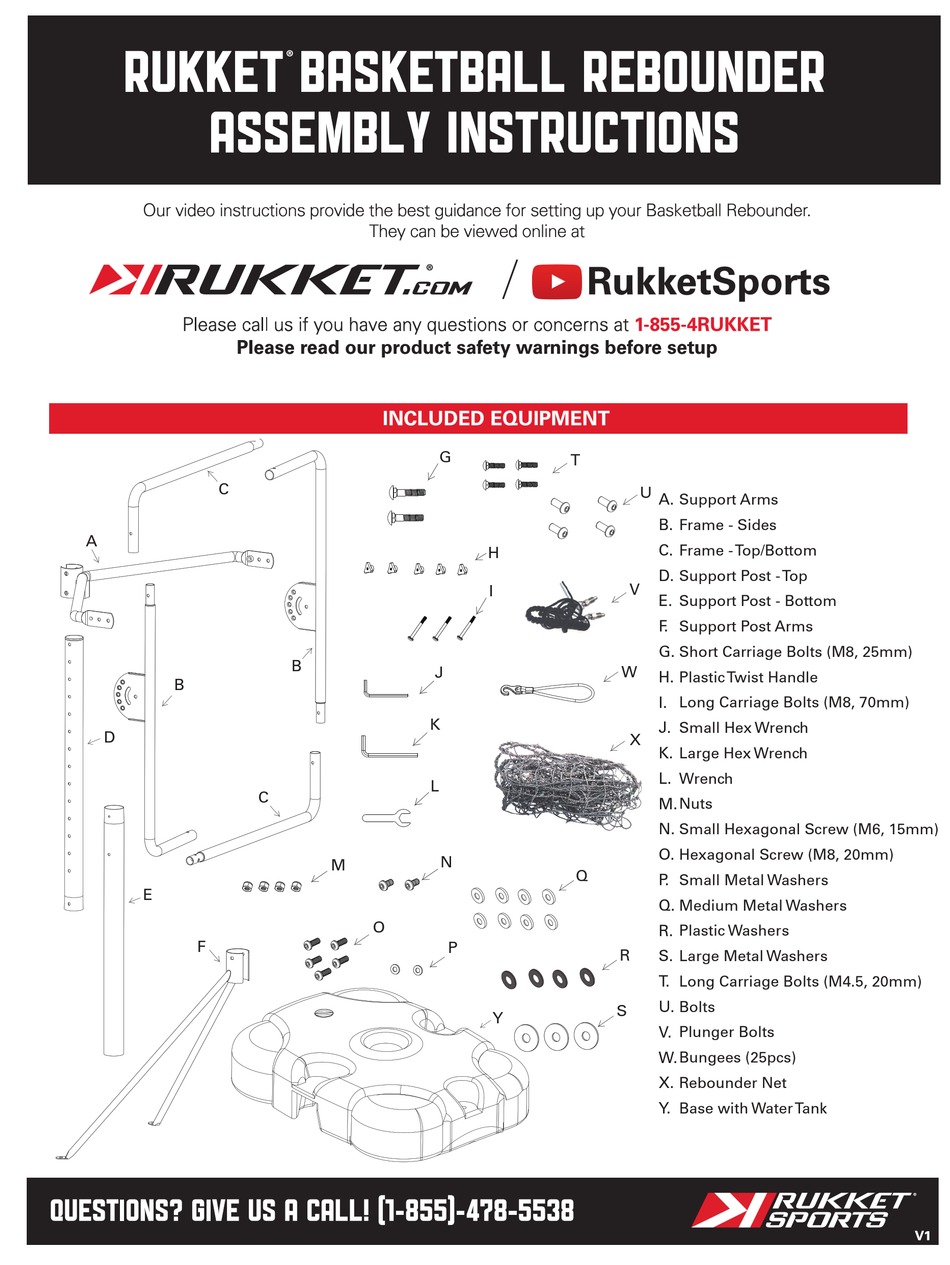

RUKKET BASKETBALL REBOUNDER
assembly INSTRUCTIONS
Our video instructions provide the best guidance for setting up your Basketball Rebounder.
C
A
B
D
C
E
F
They can be viewed online at
G
B
J
K
L
N
M
O
P
T
U
A.
B.
C.
H
D.
V
I
E.
F .
G.
W
H.
I.
J.
X
K.
L.
M.
N.
O.
Q
P .
Q.
R.
R
S.
T.
U.
S
Y
V.
W.
X.
Y.
Support Arms
Frame - Sides
Frame - Top/Bottom
Support Post - Top
Support Post - Bottom
Support Post Arms
Short Carriage Bolts (M8, 25mm)
Plastic Twist Handle
Long Carriage Bolts (M8, 70mm)
Small Hex Wrench
Large Hex Wrench
Wrench
Nuts
Small Hexagonal Screw (M6, 15mm)
Hexagonal Screw (M8, 20mm)
Small Metal Washers
Medium Metal Washers
Plastic Washers
Large Metal Washers
Long Carriage Bolts (M4.5, 20mm)
Bolts
Plunger Bolts
Bungees (25pcs)
Rebounder Net
Base with Water Tank
