Thank you for purchasing your garden bar from Forest Garden. Simply follow these step-by-step instructions and
our top tips, and you'll be enjoying your garden bar for many years to come. If you have any questions or need
advice, our friendly team is here to help.
SHIPLAP GARDEN BAR
INSTRUCTIONS (6x4)

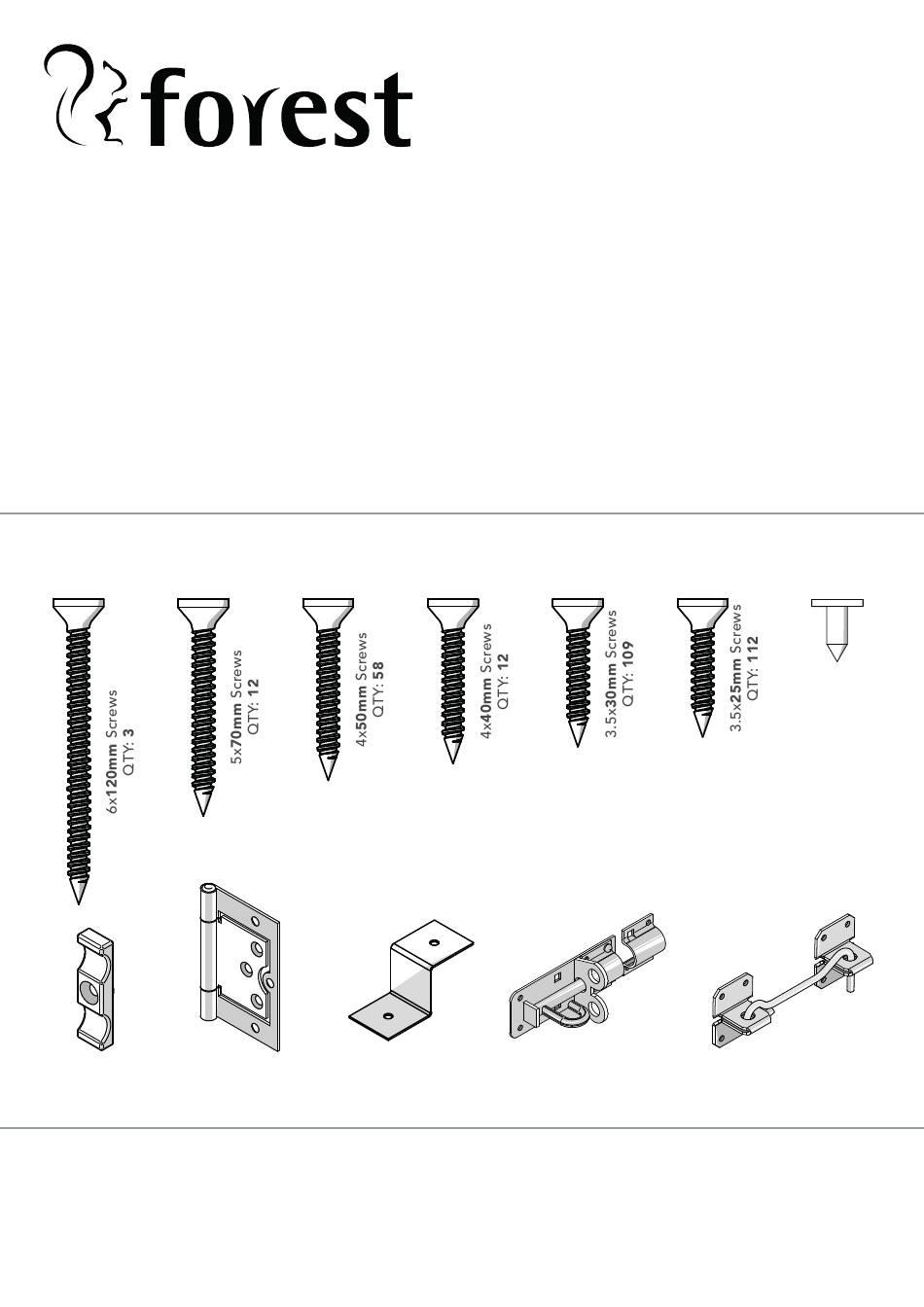

FIXING PACK CONTAINS:
FIXING PACK CODE: SDA46GBARFP
Turn Buttons
Flush Hinges
QTY: 4
QTY: 10
Missing something or need more information?
Call our aftersales team on
0333 321 3142
Forest Garden, Oak Drive, Hartlebury Trading Estate, Hartlebury, Worcestershire, DY10 4JB
EU Authorised Representative: Authorised Representative Service, 77 Camden Street Lower Dublin, D02 XE80, Ireland
Z-Brackets(28mm)
QTY: 14
Visit our website for spare instructions and
more information
www.forestgarden.co.uk
Padbolt
QTY: 1
ISSUE: 0122
Felt Tacks
QTY: 124
Hook & Eye
QTY: 2
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Forest SDA46GBARFP
Summary of Contents for Forest SDA46GBARFP
- Page 1 Making British gardens great Thank you for purchasing your garden bar from Forest Garden. Simply follow these step-by-step instructions and our top tips, and you’ll be enjoying your garden bar for many years to come. If you have any questions or need advice, our friendly team is here to help.
-
Page 2: Before You Start
BEFORE YOU START Please read through these instructions to familiarise yourself with your garden bar. We recommend that you check all the components using the lists found on the front and back pages before you start to build. BASE PREPARATION It is vital that you build your new garden bar on a solid, level base. - Page 3 CARE & ATTENTION To help you get the most out of our products, it is useful to know a little more about the properties of timber, what is normal and how your garden bar may behave as the seasons change. Wood is an extremely durable material for construction but, as a natural product, when used outdoors it is susceptible to changes in the environment.
- Page 4 GARDEN BAR PANEL LAYOUT Use the floor plan below, to identify the side panel positions before assemblying your garden bar. Use the key and visuals below as a guide. 3ft Panel (885 x 1945mm) 3ft Panel (885 x 1945mm) 4ft Panel (1180 x 1945mm) 4ft Panel (1180 x 1945mm) (Window) (Door)
-
Page 5: Side Panels
PRE-DRILL WITH FLOOR & PANEL LAYOUT 2-3MM BIT FOR ALL STEPS BELOW Position the Floor in your desired location. Lay out the panels around your garden bar We recommend to start in a back corner, floor. then work from the back panels to the front panels for assembly. - Page 6 PRE-DRILL WITH COVER STRIPS & DOOR STRIPS 2-3MM BIT FOR ALL STEPS BELOW. Attach the Cover Strip to the Attach the Cover Strips to the Secure the Door Weather Attach the Slamming Strip, to adjoining panels. Ensure it is corners. Ensure they are flush Strip to the side you want the the wall panel shown below.
- Page 7 PRE-DRILL WITH ROOF OVERHANG 2-3MM BIT FOR ALL STEPS BELOW Attach a Z-bracket to each end of the Beam Position 3 x Beams to the Apex Sections, in Secure the Beams to the Apex Sections from as shown below. Repeat the process for all the overhang section using the measurements underneath into the attached Z-Brackets.
- Page 8 PRE-DRILL WITH FELT, FASCIAS & FINIALS 2-3MM BIT FOR ALL STEPS BELOW Measure out 3 equal lengths and overlap Secure the Fascias as shown below. Ensure to Secure the Finials as shown below. Ensure to on the top, around the edges and fold the screw the Fascias into the framework behind.
- Page 9 PRE-DRILL WITH SHUTTER & DOOR FIXINGS 2-3MM BIT FOR ALL STEPS BELOW Screw your hook to the Inside Shutter and Line up the hook and eye and mark the Fix a Turn Button to the top and bottom edges with a pencil for guidance. Ensure the secure your receiver to the panel into the of the door panel.
- Page 10 L M N O P Q R U V W CHECK AND TIGHTEN ALL THE FIXINGS APPLIED TO THIS PRODUCT ON A REGULAR BASIS.
