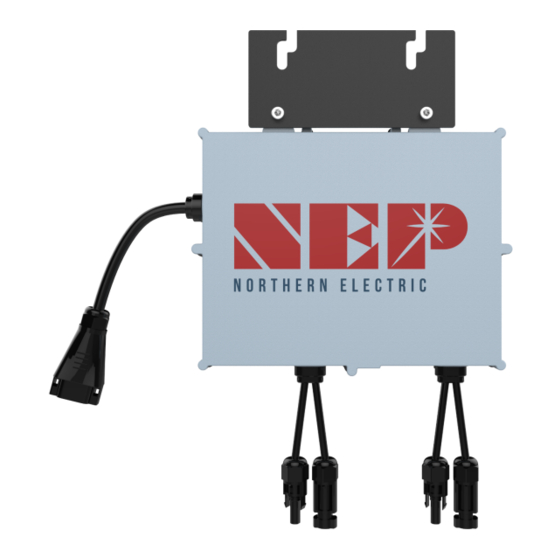

NEP BDM-800 Installation And Operation Manual
Microinverter
Hide thumbs
Also See for BDM-800:
- Quick installation manual (3 pages) ,
- Installation & user manual (21 pages) ,
- Quick installation manual (2 pages)
Subscribe to Our Youtube Channel
Related Manuals for NEP BDM-800
Summary of Contents for NEP BDM-800
- Page 1 Installation and Operation Manual BDM-800 Microinverter Modified 04/13/2023 by JMB...
-
Page 2: Table Of Contents
4.4 Installation Procedure----------------------------------------------------------------------------------------------------------------------9 4. 5 Install the AC Branch Circuit Junction Box------------------------------------------------------------------------------------------ 10 4.6 Attach BDM-800 to the Racking--------------------------------------------------------------------------------------------------------11 4.7 Connect the BDM-800 Trunk Cable--------------------------------------------------------------------------------------------------- 11 4.7.A Seal one end of trunk with an endcap-------------------------------------------------------------------------------------- 11 4.7.B Connect BDM-800 to trunk cable---------------------------------------------------------------------------------------------12 4.7.C Disconnecting BDM-800 From Trunk---------------------------------------------------------------------------------------- 12... - Page 3 7.1.B NOT communicating with BDG-256, and with no error----------------------------------------------------------------- 20 7.1.C Grounding Fault-------------------------------------------------------------------------------------------------------------------20 7.2 Troubleshooting An Inoperable BDM-800/400-------------------------------------------------------------------------------------20 7.3 Disconnecting a BDM-800 from the PV Module----------------------------------------------------------------------------------- 21 7.4 Installing a Replacement BDM-800----------------------------------------------------------------------------------------------------21 8. Data Sheets------------------------------------------------------------------------------------------------------------------------------------------22 11. WARRANTY AND PRODUCTION INFORMATION------------------------------------------------------------------------------------------ 23...
-
Page 4: Company Profile
180W to 2000W, and industry leading Rapid Shutdown Devices (RSD). Our field deployment results have demonstrated the high efficiency and reliability of NEP solar inverters. At NEP, we are committed to developing Clean, Reliable, Affordable, and Efficient products for our customers worldwide. -
Page 5: Introduction
1. INTRODUCTION 1.1 Prefix We hope that our products will meet your needs for renewable energy. We highly value your feedback regarding our products and would greatly appreciate any comments you may have. Thank you for your business, and please do not hesitate to contact us if you have any questions or concerns. 1.2 Standards Compliance The --------------- complies with the NEC 2014 and NEC 2017 article 690.12, and CEC 2015 section 64-218. -
Page 6: Safety Instruction
2. SAFETY INSTRUCTION WARNING: PLEASE READ THIS MANUAL BEFORE INSTALLATION. ANY DAMAGE TO THE PRODUCT DUE TO NOT FOLLOWING THIS MANUAL IS NOT COVERED BY THE WARRANTEE. ALL THE INSTALLATION SHOULD BE DONE BY CERTIFIED ELECTRICIAN. IT IS IMPORTANT TO NOTE THAT NOTHING INSIDE THE PRODUCT SHOULD BE MODIFIED, ASIDE FROM THE CABLE CONNECTORS. -
Page 7: Fcc Compliance
3. FCC COMPLIANCE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 8: Installation
● Because the NEP Limited Warranty does not cover "acts of God" such as lightning strikes, and given that these strikes can occur anywhere, it is recommended to install surge protection as part of any solar installation. Any surge protection devices should be installed in accordance with the vendor's instructions 4.4 Installation Procedure... -
Page 9: Install The Ac Branch Circuit Junction Box
WARNING: : DO NOT CONNECT BDM-800 TO THE UTILITY GRID OR ENERGIZE THE AC CIRCUIT(S) UNTIL YOU HAVE COMPLETED ALL OF THE INSTALLATION PROCEDURES AS DESCRIBED IN THE FOLLOWING SECTIONS. Installing the BDM-800 Micro inverter System involves several key steps: ●... - Page 10 ● Measure service entrance conductors to confirm AC service at the site. Acceptable ranges are shown in the table below: BDM-800-240A & BDM-800-208A (North America) BDM-800-AU (Australia and New Zealand) BDM-800-EU (Europe) ● Mount the adapter plate onto the PV racking system at a suitable location, usually at the end of a row of modules.
-
Page 11: Attach Bdm-800 To The Racking
WARNING: ALLOW A MINIMUM OF 2.75 INCHES BETWEEN THE TOP OF THE ROOF AND THE BOTTOM OF BDM-800. WE ALSO RECOMMEND THAT YOU ALLOW .50 INCHES BETWEEN THE BACK OF THE PV MODULE AND THE TOP OF BDM-800. DO NOT MOUNT BDM-800 IN A LOCATION THAT ALLOWS LONG-TERM EXPOSURE TO DIRECT SUNLIGHT. -
Page 12: C Disconnecting Bdm-800 From Trunk
4.7.C Disconnecting BDM-800 From Trunk ● Using the removal tool, push the ends into the slots on the connector, slanted side down, and pull up. 4.7.D Homerun ● At the end of each string disconnect the cover for the T connector, and unscrew the wire leads. -
Page 13: Ground The System
WARNING: DO NOT EXCEED THE MAXIMUM NUMBER OF BDM-800 IN AN AC BRANCH CIRCUIT, AS DISPLAYED ON THE UNIT-RATING LABEL (5 Units or 10 Modules). For 12AWG trunk cable, EACH BDM-800 AC BRANCH CIRCUIT MUST BE SOURCED FROM A DEDICATED BRANCH CIRCUIT PROTECTED BY A 20A MAXIMUM BREAKER. -
Page 14: Commissioning
● The BDM-800 will begin transmitting performance data through power line communication (PLC) to the BDG-256. The duration for each BDM-800 in the system to communicate with the BDG-256 will vary depending on the number of BDM-800s installed. 5.2 Inverter/RSD Serial Input To ensure a successful serial input process, it is essential to have a comprehensive site map that outlines the sequence of serial number input. -
Page 15: B Using Usb Barcode Scanner
● NEP offers a barcode scanner that can simplify the process of inputting serial numbers. To use the scanner, plug it into the gateway's USB port and navigate to the COM ID screen as in section 6.1.A. Scan the barcode of the desired module into the Inverter1 cell, and repeat until all serial numbers have been input. -
Page 16: Installer Registration
We recommend providing as much detail as possible to help us better understand your needs. ● Once you have registered, please contact NEP Support via email at support@northernep.com or by calling (888) 598-9901 to have your account upgraded to an installer account. This will allow you to access additional features and resources to help you better manage your NEP products. -
Page 17: Create A Site On Nep Website
5.6 Create a Site on NEP Website ● Access your installer account on the NEP website at https://user.nepviewer.com/pv_manager/login.php using your registered email and log in to your account. Then, click on the "Add Site" button to create a new site. -
Page 18: Verify And Map Site
5.7 Verify and Map Site ● Once you have confirmed the creation of the site on the NEP website, navigate to your dashboard where you should be able to see it. ● Click on the site to access its information and then click on "Open Viewer." The site's production data should now be visible on the first page. -
Page 19: Operating Instructions
6. Operating Instructions When DC voltage from the module is applied, the BDM-800 is powered on automatically. Once sufficient DC power is applied, the status LED will begin to flash, indicating that the BDM-800 is live. 6.1 Status: Standby ●... -
Page 20: Troubleshooting And Maintenance
WARNING: ALWAYS DISCONNECT AC POWER BEFORE DISCONNECTING PV MODULE WIRES FROM BDM-800/400. THE AC CONNECTOR OF THE FIRST BDM-800/400 IN A BRANCH CIRCUIT IS SUITABLE AS A DISCONNECTING MEANS ONCE THE AC BRANCH CIRCUIT BREAKER IN THE LOAD CENTER HAS BEEN OPENED. -
Page 21: Disconnecting A Bdm-800 From The Pv Module
Connect the positive DC wire from the PV module to the negatively marked DC connector (male pin) of the BDM-800. Then connect the negative DC wire from the PV module to the positively marked DC connector (female socket) of the BDM-800. Repeat for all remaining PV modules using one BDM-800 for each module. -
Page 22: Data Sheets
8. Data Sheets Modified 04/13/2023 by JMB... -
Page 23: Warranty And Production Information
This warranty does not apply to and NEP will not be responsible for any defect in or damage to: a) the product if it has been misused, neglected, improperly installed, physically damaged or altered, either internally or externally, or damaged from improper use or use in an unsuitable environment;... -
Page 24: What Does This Warranty Not Cover
PROFITS, LOST REVENUES, FAILURE TO REALIZE EXPECTED SAVINGS, OR OTHER COMMERCIAL OR ECONOMIC LOSSES OF ANY KIND, EVEN IF NEP HAS BEEN ADVISED, OR HAD REASON TO KNOW, OF THE POSSIBILITY OF SUCH DAMAGE, (b) ANY LIABILITY ARISING IN TORT, WHETHER OR NOT ARISING OUT OF NEP'S NEGLIGENCE, AND ALL LOSSES OR DAMAGES TO ANY PROPERTY OR FOR ANY...
