MAGSTIM NEUROSIGN V4 User Manual page 44

e. Time & Date
The current time and date are displayed in the top right-hand corner.

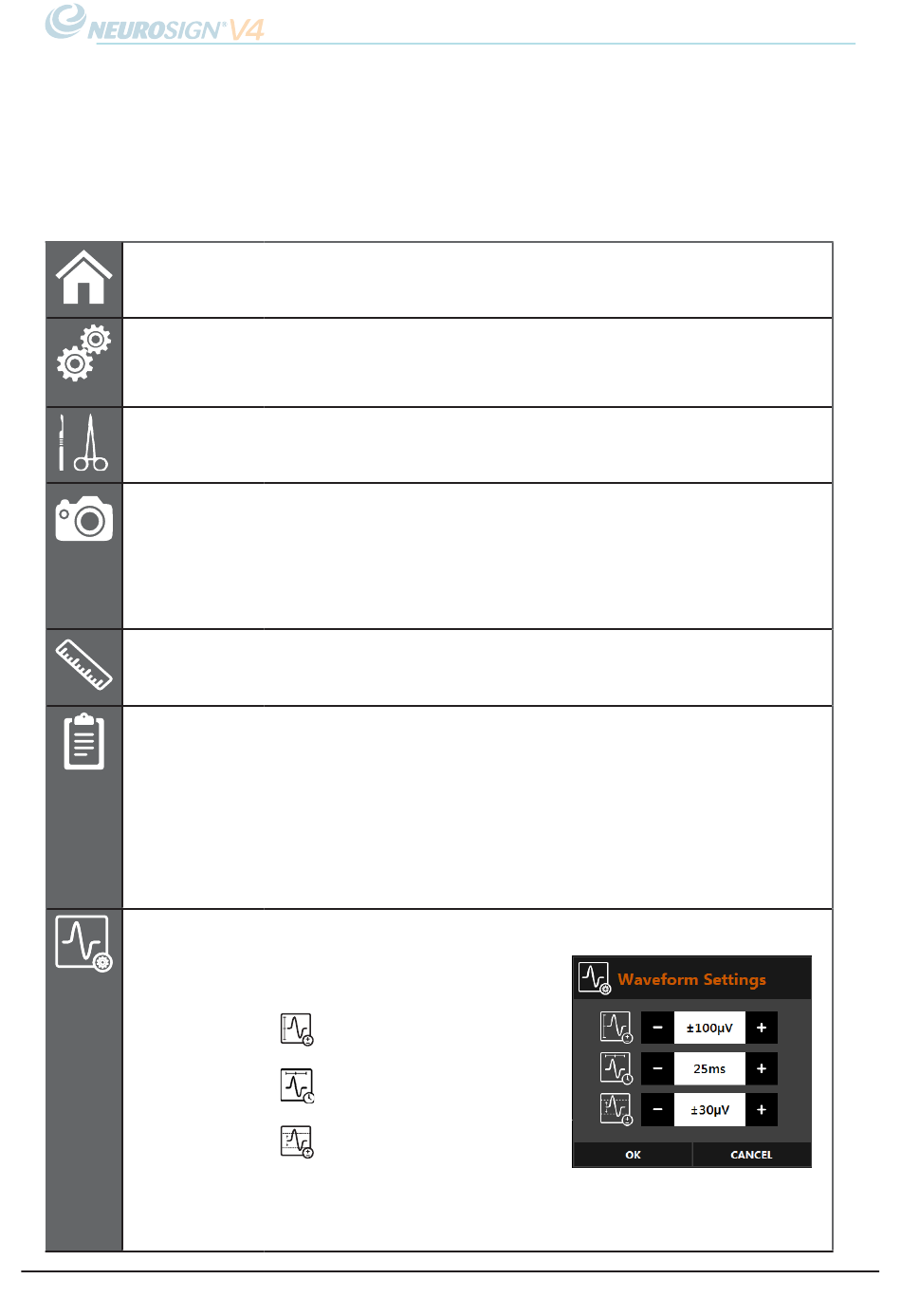

f. Monitoring Menu
The monitoring menu can be found on the right of the monitoring screen,
HOME
SYSTEM
SETTINGS
PROCEDURE
SETTINGS
SCREEN
CAPTURE
LATENCY
CURSORS
PROCEDURE
REPORT
WAVEFORM
SETTINGS
The Magstim Company Ltd.
Press to return to the home screen (available when
monitoring is not active).
When monitoring is active, this is shown in place of the
home button and will give the option to change the system
settings (see page 62).
Access to the procedure settings menu (see "b. Custom
Procedure" on page 49 for more information).
Press this at any point in the procedure to perform a screen
capture of the waveforms and latency cursors, if shown.
This will be automatically saved. Events must be captured
and annotated whilst monitoring is active.
Not available in default mode, see page 42
Show or hide the latency cursors. Latency cursors can be
dragged to any point on a waveform, the values at that
point will be shown at the top of the channel window.
View the current procedure report, including the patient
details, events / screen captures and the procedure details.
The option is provided to add notes to the procedure or
screen capture. Notes must be added/edited at this stage,
as reports viewed later are read-only. See "a. Creating
Reports" on page 56.
Not available in default mode, see page 42
This displays the Waveform settings window (below).
Waveform scale
Timebase scale
Waveform threshold
For more information see "iii. Waveform setting tab." on
page 51
©
