MERLIN STEALTH MASTER

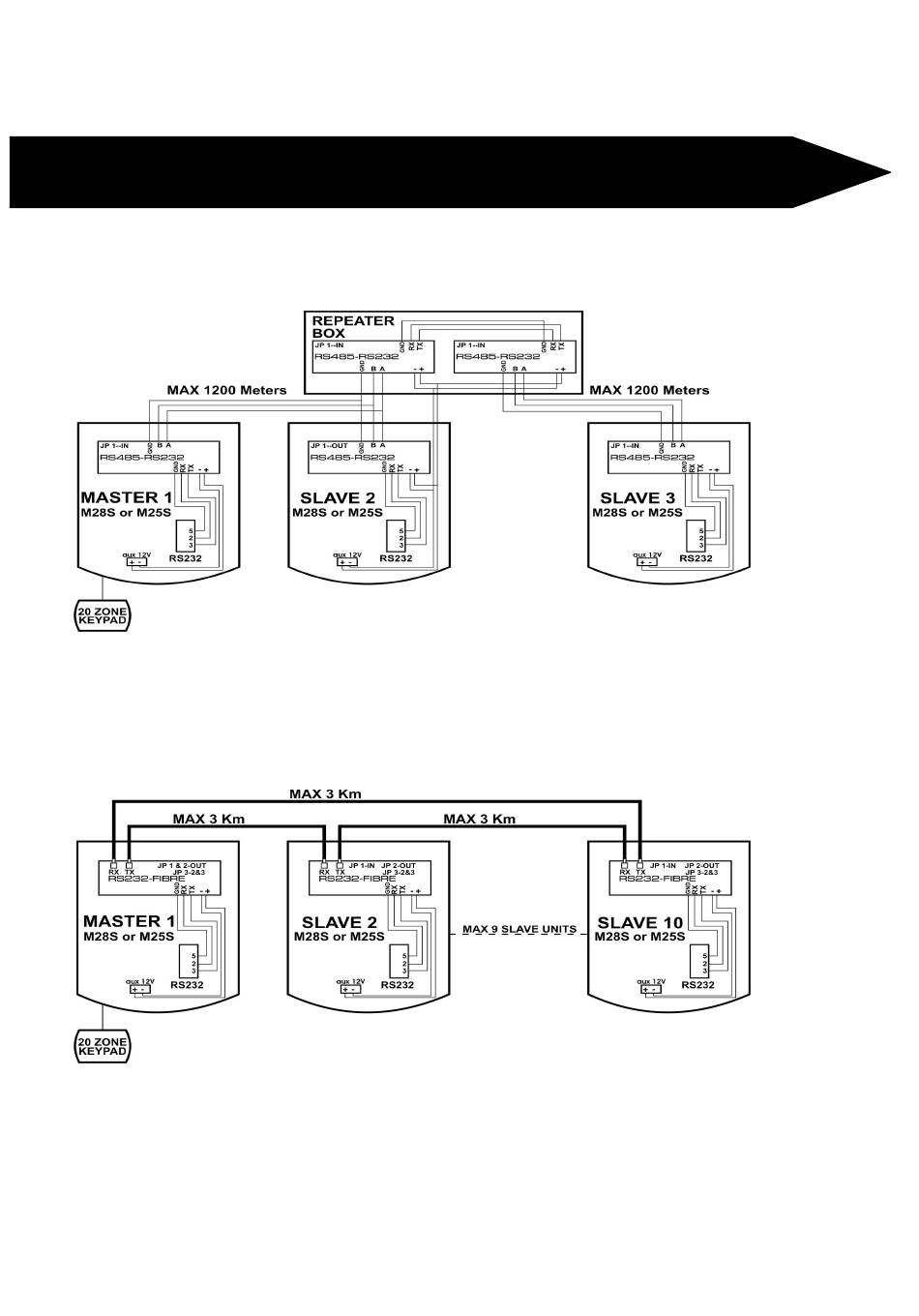

RS 484 NETWORKED WITH
EXTENDED DISTANCE
Units : One Master and Maximum 9 Slaves
Zones : Maximum 20 Zones
Cable : Twisted pair and Earth-Screen (120 Ohm)
Cable Length : Overall Length Maximum 1200 Meters
between Repeater and Master or Slave
FIBRE OPTIC DAISY CHAINED
Units : One Master and Maximum 9 Slaves
Zones : Maximum 20 Zones
Fibre : Fibre Optic cable
Cable Length : Maximum 3000 Meters between
Master and Slave or Slave and Slave

Networking examples

RS485-RS232 Card : JP1 Installed only on first and last
unit and on both units in the
repeater
RS232-FIBRE CARD : JP 1 Installed only on Slave units
JP 2 not installed on all units
JP 3 in position 2 & 3 on all units
12
