MERLIN STEALTH MASTER
RS 232 NETWORKED
RS 485 NETWORKED

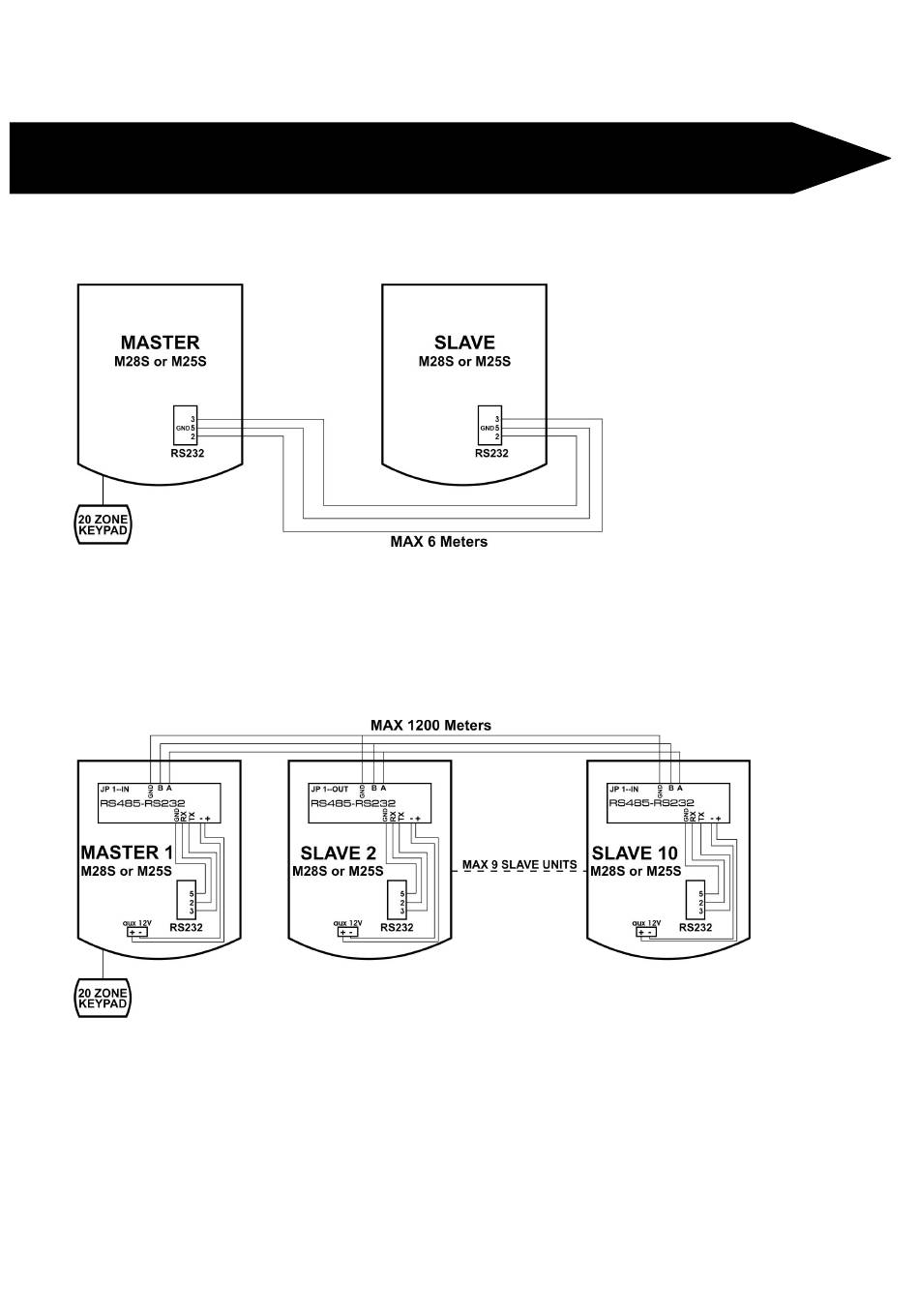

Networking examples
Units : One Master and One Slave
Zones : Maximum 4 Zones
Cable : Twisted pair and Earth-Screen (120 Ohm)
Cable Length : Maximum 6 Meters
Housing : In same room or building
Units : One Master and Maximum 9 Slaves
Zones : Maximum 20 Zones
Cable : Twisted pair and Earth-Screen (120 Ohm)
Cable Length : Overall Length Maximum 1200 Meters
RS485-RS232 Card : JP1 Installed only on first and last unit
11
