4057351/1
Installation and Maintenance Instructions
1. Safety information
Your attention is drawn to Safety Information Leaflet IM-GCM-10, and, in the UK to
IEE Regulations (BS 7671). Elsewhere, other regulations will normally apply.
2. Description
The WAV1 solenoid is designed for use with the BBV980A bottom blowdown valve. The valve
is a 3-port solenoid valve for use with air or water up to 90°C. The valve has a brass body and
corrosion resistant internals. Application of the rated voltage to the coil will allow air or water into
the BBV980A actuator. When de-energised the solenoid will vent the compressed air or water
in the actuator to atmosphere or drain.
3. Technical data
Enclosure rating
Maximum cable size
Maximum ambient temperature
Weight
Power consumption
Voltages available
Fluid duty
Maximum operating pressure
Fluid temperature range
Response times
4. Materials
Part
Material
Body
Brass
Internals
Brass
Seal
Nitrile rubber
Printed in the UK

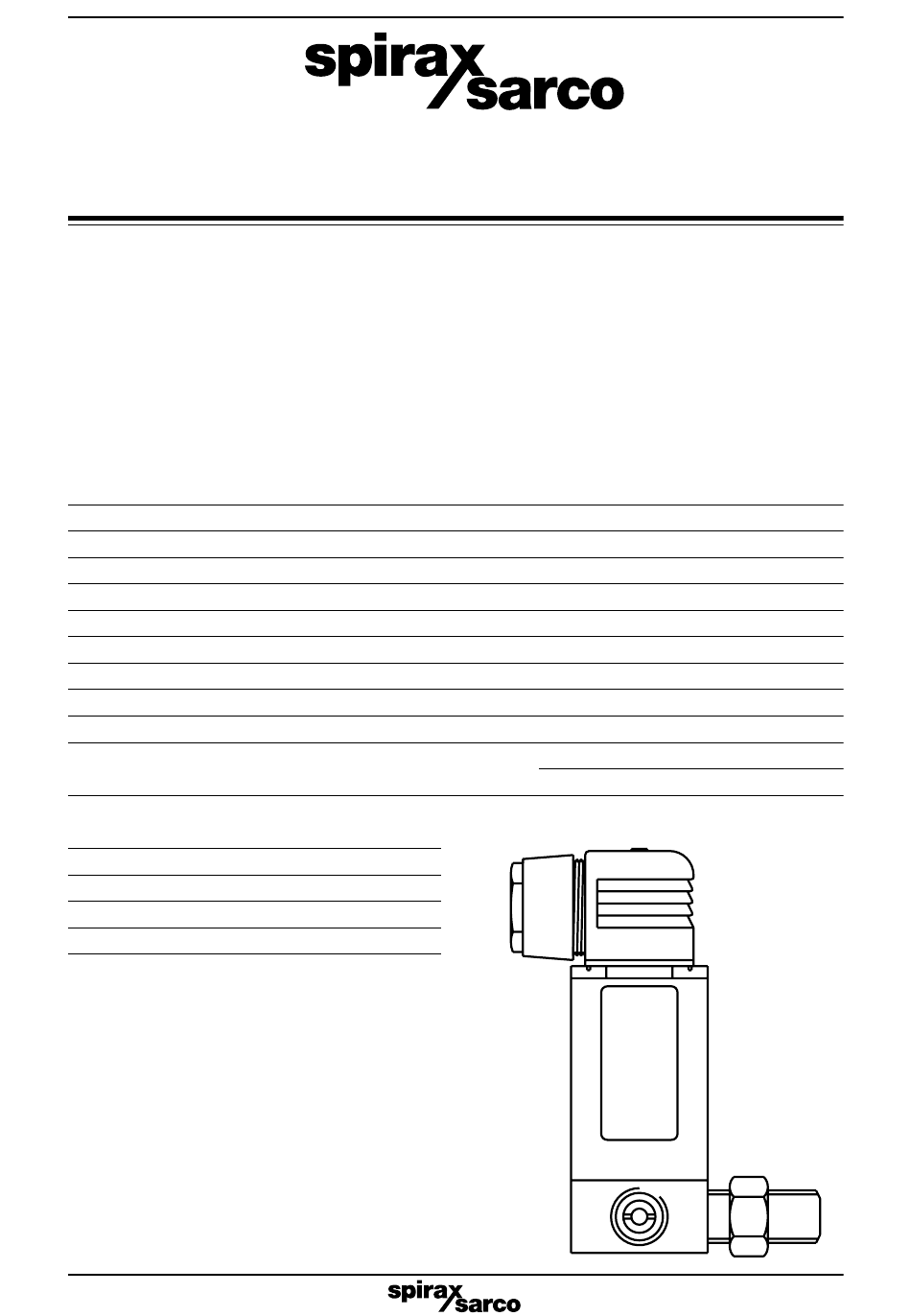

WAV1
Solenoid Valve
IM-P405-27
IP65
Ø7
+55°C
0.40 kg
30 VA (inrush) 5 VA /8 W (hold)
24, 110, 220 /240 Vac
Air or water
5 bar g
0 to +90°C
Opening 8-15 ms
Closing 8-15 ms.
WAV1
© Copyright 2000
AB Issue 1
Advertisement
Table of Contents
Related Manuals for Spirax Sarco WAV1
Summary of Contents for Spirax Sarco WAV1
- Page 1 IEE Regulations (BS 7671). Elsewhere, other regulations will normally apply. 2. Description The WAV1 solenoid is designed for use with the BBV980A bottom blowdown valve. The valve is a 3-port solenoid valve for use with air or water up to 90°C. The valve has a brass body and corrosion resistant internals.
- Page 2 6 mm A /F allen key. - Connect the other half to port 'A' on the WAV1 and tighten. - Fit the two halves of the coupling together and tighten using a 19 mm A /F spanner.
