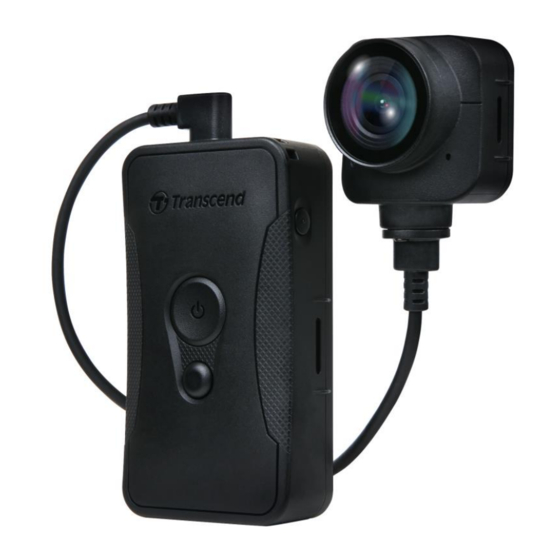

Transcend DrivePro Body 70 User Manual

Body camera
Hide thumbs Also See for DrivePro Body 70:
Table of Contents

Advertisement

Quick Links

Download this manual
User's Manual
Body Camera
DrivePro Body 70
2023/03
(Version 1.0)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DrivePro Body 70 and is the answer not in the manual?

Questions and answers

Related Manuals for Transcend DrivePro Body 70

Summary of Contents for Transcend DrivePro Body 70

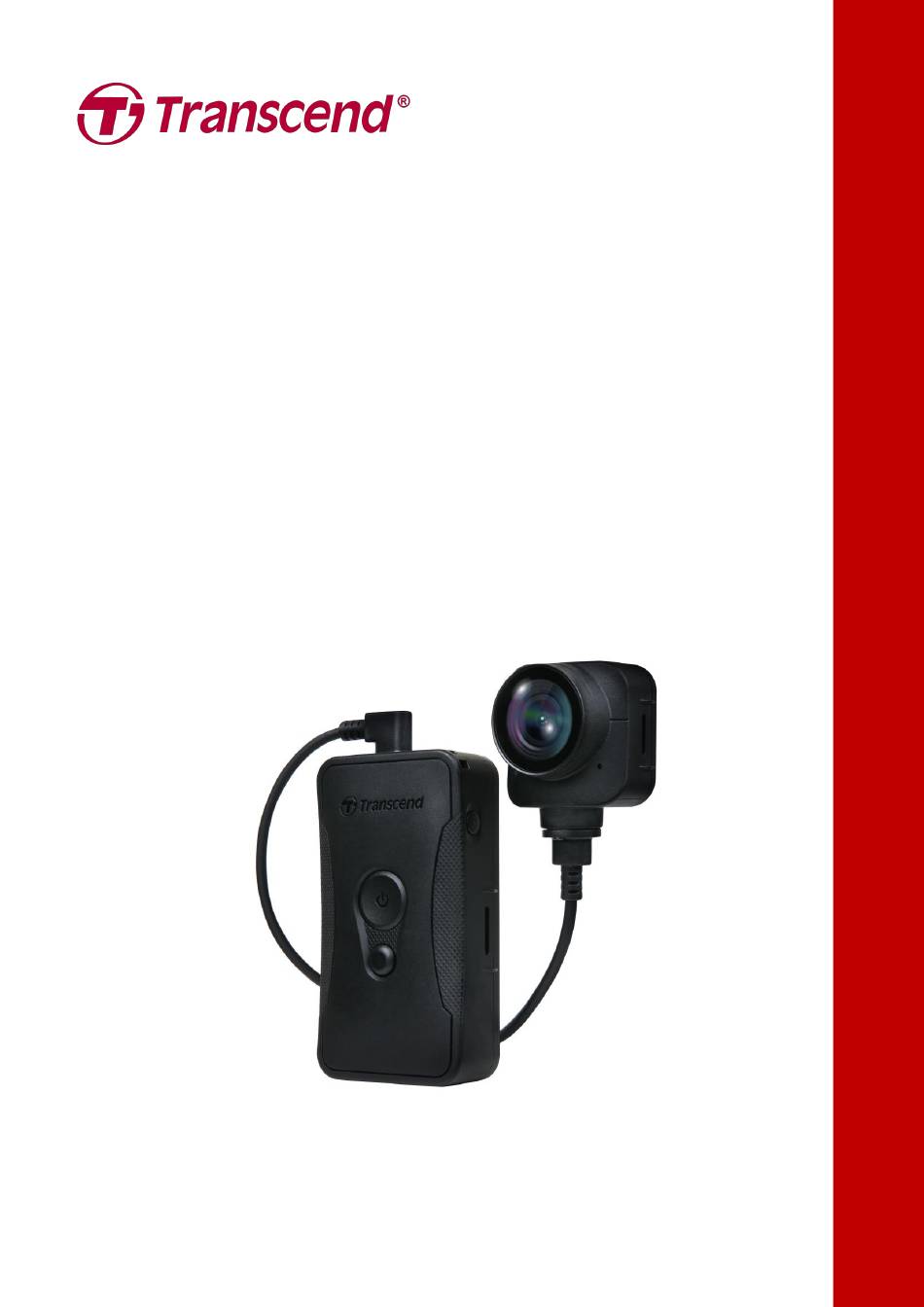

  • Page 1 User’s Manual Body Camera DrivePro Body 70 2023/03 (Version 1.0)

  • Page 2: Table Of Contents

    Table of Contents System Requirements ......................3 Package Contents ........................3 Getting Started ........................... 4 3-1 Function Buttons ......................... 4 3-2 Mounting the DrivePro Body ..................... 5 3-3 Function Button Description ....................6 3-4 LED Indicators........................7 3-5 Charging the DrivePro Body ..................... 8 Recording Videos ........................
  • Page 3 19. GNU General Public License (GPL) Disclosure ..............31 20. End-User License Agreement (EULA) ................. 31 21. Federal Communications Commission (FCC) Statement ..........32 22. Eurasian Conformity Mark (EAC) ..................32...

  • Page 4: System Requirements

    1. System Requirements System requirements for connecting the DrivePro Body 70 to a computer and for using the DrivePro Body Toolbox software:  A desktop or a laptop with a working USB port:  Windows ® 10 or later  macOS ®...

  • Page 5: Getting Started

    Clip mount Velcro holder Quick Start Guide 3. Getting Started 3-1 Function Buttons Lens Microphone Recording Indicator Status Indicator Battery Indicator Lanyard Hole...

  • Page 6: Mounting The Drivepro Body

    Assistive Button Status Button Buzzer Power Button Snapshot Button Connection Socket Reset Button 3-2 Mounting the DrivePro Body 1. Attach the main unit to your duty belt. 2. Put the camera on.

  • Page 7: Function Button Description

    3. To power it on, 4. To switch between long press the button. Buffering and Recording modes, double-press the button. 5. To take a snapshot, short press the button. 3-3 Function Button Description Button Instruction Description Power on/off Long press once Switch between Buffering mode and Recording Power Button Short press twice...

  • Page 8: Led Indicators

    Reset, format and power off the device. This function is disabled by default and can be Press for 5+ seconds enabled using the DrivePro Body Toolbox. Warning! All data will be permanently erased. Status Button Pair and connect to Bluetooth. Press for 5 seconds Check the battery and recording status.

  • Page 9: Charging The Drivepro Body

    1. Connect the 3.5 mm to USB cable to the body camera and a wall outlet with the included adapter. 2. Connect the 3.5 mm to USB cable to the body camera and a computer. 3. Connect the DrivePro Body to Transcend’s Docking Station (Optional). WARNING...

  • Page 10: Recording Videos

    After hearing a beep, the LED light and the device will turn off. Video files recorded in Recording mode will be saved in the folder named “VIDEO” and overwritten with loop recording enabled. DrivePro Body 70 saves video files every 3 minutes automatically. (The default recording length is 3 minutes). Note...

  • Page 11: Taking Photos

    5. Taking Photos Short press the button to take photos while recording. When you hear a beep, it means the snapshot has been taken. Pictures will be saved in the folder named “PHOTO.” 6. Audio Recording To start Audio recording mode, long press the button.

  • Page 12: Using The Drivepro Body App

    8. Using the DrivePro Body App Developed for iOS and Android devices, the DrivePro Body App lets you watch live-view videos and adjust the camera settings wirelessly on your smart devices. 8-1 Downloading and Installing the DrivePro Body App 1. Search for DrivePro Body App on the App Store or Google Play. 2.
  • Page 13 Long press the Status button until you hear a beep. Tap “Connect” on the App to connect to Bluetooth. After hearing three beeps, you can take snapshots, switch recording modes, or adjust settings via the App. Tap “Browser” or “Live View” to connect to Wi-Fi named “DPB70_XXXXXX” with the default password “12345678”.

  • Page 14: Drivepro Body App Homepage

    8-3 DrivePro Body App Homepage Menu Device List Battery Status Storage Status Recording Length Microphone Resolution Recording Mode Stealth Mode Snapshot Microphone Browser Live View Note The camera stops recording when you tap “Browser” or “Settings” on the DrivePro Body App, and the front LED turns solid red.

  • Page 15: Playing Videos And Browsing Photos

    8-4 Playing Videos and Browsing Photos To play videos and browse photos, tap “Browser” on the Homepage or on the top left corner first, then tap Tap the icons on the bottom to watch videos, browse pictures, or listen to audio recordings.

  • Page 16: Settings

    8-5 Settings on the top left corner first, then tap to enter the Settings menu. In the Settings menu, you can adjust the video, device, Wi-Fi, and system settings. Menu options VIDEO Icon Function Description/Options Set the quality for video recording. Resolution 1440P / 1080P / 720P / 480P Set the recording length of each recorded video.
  • Page 17 Description/Options Turn off/on the stealth mode. When the stealth mode is on, the light indicators, buzzer, and vibrator are disabled. Stealth Mode Disable / Enable Wi-Fi Set the Wi-Fi password of the DrivePro Body 70. Password (Default password is 12345678)
  • Page 18 The DrivePro Body will shut down and the status indicator will flash red while the firmware is being upgraded. After the upgrade is complete, the DrivePro Body will restart automatically. If the DrivePro Body cannot be turned on due to firmware upgrade failure, please contact Transcend customer service for technical support.

  • Page 19: Using The Drivepro Body Toolbox Software

    DrivePro Body camera. To use the DrivePro Body Toolbox: 1. Download the installation files: https://www.transcend-info.com/downloads 2. Install DrivePro Body Toolbox software on your desktop or laptop. 9-1 Status Please find the basic information of the DrivePro Body, including the user label, model, device serial number, and firmware version, on the Status page.

  • Page 20: Settings

    9-2 Settings On the Settings page, you can adjust the Device, Video, and Video Stamp settings. Device Settings Function Description/Options Click the “Set” button to sync the time of the device with the PC. Sync time with PC Turn on/off Stealth mode. When the Stealth mode is on, the light indicators and buzzer are disabled.
  • Page 21 Video Settings Function Description/Options Set the quality for video recording. Resolution 1440P/30FPS / 1080P/30FPS / 720P/30FPS / 480P/30FPS Set the recording file format. Video Format MOV / MP4 Overwrite the old video files with new ones. Loop Recording ON / OFF Set the recording length of each recorded video.
  • Page 22 ON / OFF Set the date format. Date Format Y/M/D or M/D/Y or D/M/Y Select the time format. 24 or 12-hour clock. Time Format 24HR or AM/PM Display the Transcend logo watermark on photos or videos. Watermark ON / OFF...

  • Page 23: Tools

    9-3 Tools On the Tools page, you can upgrade firmware to the latest version, format disk or reset DrivePro Body to its default status. Tools Function Description/Options Firmware Ver Upgrade your firmware to the latest version available. Set a password to protect the drive of the body camera. Password Password should be between 8 to 16 characters, either letters or numbers.

  • Page 24: File Manager

    9-4 File Manager Once the data is backed up, you can search and manage your videos and photos on the File Manager page. Click to play videos on the screen. Click to enlarge videos to full screen. With a GPS receiver, the paths can be displayed along with the recorded video.
  • Page 25 Click on the right side of the page to add, delete, or edit the Owner and Category. Click to classify the Owner and Category of the selected file.

  • Page 26: Preference

    9-5 Preference Click on top of the page to adjust the settings of the DrivePro Body Toolbox. Check the available options below according to your preference. Please refer to the User’s Manual of DrivePro Body Toolbox via the link below. https://www.transcend-info.com/Manual/DriveProBody/Toolbox/EN/...

  • Page 27: Transferring Files To A Computer

    Docking Station (Optional) Transcend’s DPD6N networked docking station is designed specifically for the DrivePro Body 30/60/70 and offers a complete charging, data upload, and camera management solution via the network. Users can charge multiple DrivePro Body 30/60/70 devices simultaneously and share files (including video recordings and snapshots) to an external storage device via a USB port.

  • Page 28: Cautions

    Cautions Do not use or store the DrivePro Body in the following places to prevent malfunction or deformation:  In extremely hot, cold, or humid places, such as in a car parked in the sun  Under direct sunlight or near a heater ...

  • Page 29: Ip68 Protection

     Do not use the DrivePro Body 70 in high temperatures and humidity, such as saunas, steams, and shower rooms.  Do not use the DrivePro Body 70 for long in heavy rains to prevent moisture from penetrating. Ensure the power cable, adapter, and connection socket are completely dry before charging.

  • Page 30: Specifications

    Specifications 95.9 mm (L) × 52.2 mm (W) × 24.9 mm (H) Main unit: 3.78” (L) x 2.06” (W) x 0.98” (H) Dimensions 48.6 mm (L) x 40 mm (W) x 31.7 mm (H) Camera unit: 1.91” (L) x 1.57” (W) x 1.25” (H) Weight 184 g (6.5 oz) Connect Interface USB 2.0 Storage Internal 64 GB storage...

  • Page 31: Frequently Asked Questions

    Transcend branch office. You can also visit Transcend’s website (https://www.transcend-info.com/) for more FAQs and Technical Support services (https://www.transcend-info.com/Support/contact_form). My computer operating system cannot detect my DrivePro Body.

  • Page 32: Recycling And Environmental Protection

    < 100mW Recycling and Environmental Protection For more information on recycling the product (WEEE) and battery disposal, please refer to the following link: https://www.transcend-info.com/about/green. Warranty Policy Please find the warranty period of this product on its package. For details of Warranty Terms and Conditions and Warranty Periods, please refer to the link below: https://www.transcend-info.com/warranty.
  • Page 33 * This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. Transcend Information Inc (USA) 1645 North Brian Street, Orange, CA 92867, U.S.A TEL: +1-714-921-2000 Eurasian Conformity Mark (EAC)
