Summary of Contents for Transcend DrivePro Body 60

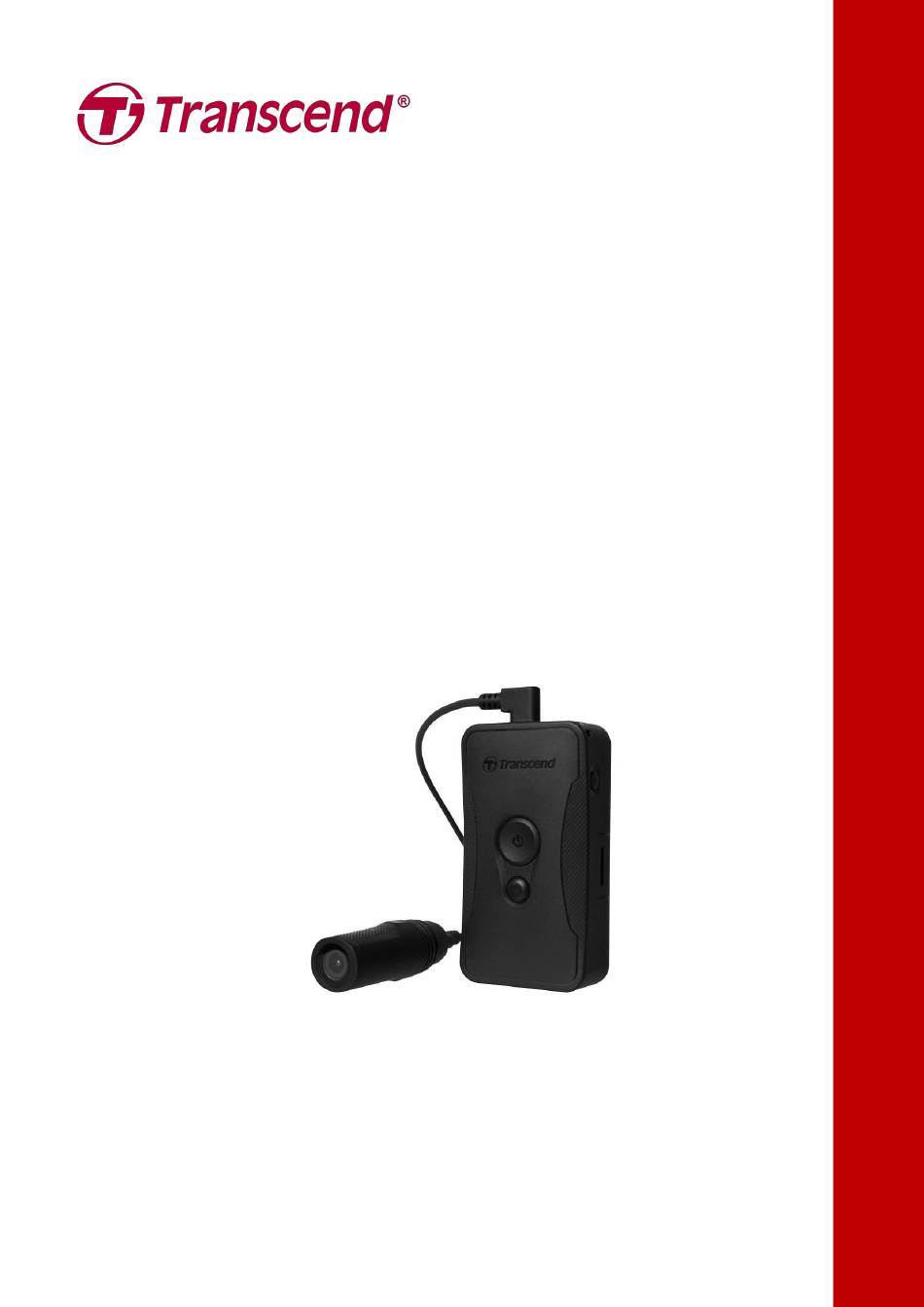

- Page 1 User’s Manual Body Camera DrivePro Body 60 2024/06 (v2.0)
-
Page 2: Table Of Contents
Table of Contents Package Contents ......................3 Getting Started ......................5 2-1 Mounting the DrivePro Body ................... 5 2-2 Function Buttons ..................... 7 2-3 Function Buttons Description .................. 8 2-4 LED Indicator Table ....................8 2-5 Charging the DrivePro Body ................. 10 Recording Videos ....................... - Page 3 EU Compliance Statement................... 34 Recycling and Environmental Protection ............. 35 Warranty Policy....................35 GNU General Public License (GPL) Disclosure........... 35 End-User License Agreement (EULA) ..............35 Federal Communications Commission (FCC) Statement ........36 Eurasian Conformity Mark (EAC) ................ 37...
-
Page 4: Package Contents
1. Package Contents DrivePro Body 60 Belt pouch Adapter 3.5mm to USB cable... - Page 5 Camera holder Clip mount Adhesive mount Quick Start Guide...
-
Page 6: Getting Started
2. Getting Started 2-1 Mounting the DrivePro Body Clip mount Adhesive mount Insert and slide the camera holder into Attach the main unit to your duty belt. the clip/adhesive mount until your hear a click. on a helmet on the shoulder on a police cap Clip mount Adhesive mount... - Page 7 To power the camera on, long press Rotate the camera so that the LED Power button. recording indicator faces upward. Double-press the button to switch between Buffering and Recording modes. To take a snapshot, short press the ● Snapshot button.
-
Page 8: Function Buttons
2-2 Function Buttons Lens Recording Indicator Microphone Battery Indicator Status Indicator Lanyard Hole Status Button Assistive Button Buzzer Power Button Snapshot Button Reset Button Connection Socket... -
Page 9: Function Buttons Description
2-3 Function Buttons Description Button Instruction Description Long press once Power on/off. Power Button Switch between Buffering mode Recording mode. Short press twice Default: Buffering mode Long press once Audio recording. ● Snapshot Button Short press once Take a snapshot. Reset, format and power off the device. - Page 10 Connected to computer/power Status Definition Solid Charging Checking the battery status Status Definition Solid > 67% remaining Solid 31% to 67% remaining Solid < 31% remaining Top View 2 Status Indicator Recording Status Definition Flashing Memory almost full Flashing quickly Bluetooth pairing...
-
Page 11: Charging The Drivepro Body
Connect the 3.5 mm to USB cable to the body camera and a wall outlet with the included adapter. Connect the 3.5 mm to USB cable to the body camera and a computer. Connect the DrivePro Body to Transcend’s Docking Station (Optional). WARNING Do not use non-original 3.5 mm to USB cable to charge. -
Page 12: Recording Videos
3. Recording Videos 3-1 Buffering Mode Recording in Buffering mode can greatly save storage space as the files are not recorded to the internal storage. To power on and start Buffering mode, long press the Power button; you will hear a beep. -
Page 13: Taking Photos
DrivePro Body 60 saves video files every 3 minutes automatically. (The default recording length is 3 minutes.) Note When the default recording mode is changed to Recording mode, it will remain in Recording mode due to firmware behavior and cannot be switched back to Buffering mode. -
Page 14: Advanced Feature
6. Advanced Feature 6-1 Bluetooth Team Sync "Bluetooth Team Sync" is a function based on Bluetooth technology. Within an acceptable Bluetooth range, when one body camera switches from Buffering mode to Recording mode, other body cameras of the same team will also switch to Recording mode. Note Bluetooth Team Sync is disabled by default and can be enabled using the DrivePro Body Toolbox. -
Page 15: Connecting To The Drivepro Body App
7-2 Connecting to the DrivePro Body App 1. Tap “DrivePro Body” App and turn on Bluetooth. Select DrivePro Body 60 on the App. 2. Power on the DrivePro Body by long pressing the Power button. Tap Next to continue. - Page 16 3. Long press the Status button until you hear a beep. Tap Connect on the App to connect to Bluetooth. After hearing three beeps, you can take snapshots, switch recording modes, or adjust settings via the App. 4. Tap Browser or Live View to connect to Wi-Fi named “DPB60_XXXXXX” with the default password “12345678”.
-
Page 17: Drivepro Body App Home
Note We recommend changing the DrivePro Body's Wi-Fi password the first time you connect to the app. 7-3 DrivePro Body App Home Menu Device List Battery Status Storage Status Video Length Microphone Resolution Stealth Mode Recording Mode Microphone Snapshot Browser Live View Note The camera stops recording when you tap... -
Page 18: Playing Videos And Browsing Photos
7-4 Playing Videos and Browsing Photos To play videos and browse photos, tap Browser on the Homepage, or tap the top left corner first, then tap Tap the icons at the bottom to play recorded videos or browse photos. While playing a video, you can trim and download the desired segment (10s, 20s, or 30s) without downloading the entire clip to your phone for editing. - Page 19 Menu options VIDEO Icon Function Description / Options Set the resolution/quality for video recording. Resolution 1080P / 720P / 480P Set the recording length of each recorded video. Video Length 3 min / 5 min / 10 min Turn off/on the microphone during video recording. Microphone Disable / Enable...
- Page 20 WiFi Both 5G and 2.4G frequency bands are available for selection. Frequency 5G / 2.4G Band Set the Wi-Fi password of the DrivePro Body 60. Wi-Fi (Default password is 12345678) Password Note: We recommend changing the DrivePro Body's Wi-Fi password the first time you connect to the app.
-
Page 21: Location History
If the DrivePro Body cannot be turned on due to firmware upgrade failure, please contact Transcend customer service for technical support. 7-6 Location History When the DrivePro Body connects to the app, it records the latest timestamp and location, offering valuable information if the camera goes missing. -
Page 22: Using The Drivepro Body Toolbox Software
The software features a user-friendly interface that allows users to set the basic functions of the DrivePro Body camera. 8-1 System Requirements System requirements for connecting the DrivePro Body 60 to a computer and for using the DrivePro Body Toolbox: A desktop or a laptop with a working USB port: ... -
Page 23: Status
8-2 Status On the Status page, the basic information of the DrivePro Body is displayed, including the user label, model, device serial number, and firmware version. To adjust the user label and Bluetooth Team Sync function, click Note Select “preferred team number” for Bluetooth Team Sync from 1 to 10. To find a device, click To play videos and browse photos, click To enter Webcam mode, click... -
Page 24: Settings
8-3 Settings On the Settings page, you can adjust the Device, Video, and Video Stamp settings. Device Settings Function Description / Options Click the “Set” button to sync the time of the device with the PC. Sync time with PC Turn on/off Stealth mode. - Page 25 Video Settings Function Description / Options Set the resolution/quality for video recording. Resolution 1080P/30FPS / 720P/30FPS / 480P/30FPS Overwrite the old video files with new ones. Loop Recording OFF (default) / ON Set the recording length of each recorded video. Video Length 3 mins / 5 mins / 10 mins Select the appropriate frequency to avoid flashing A/C light.
- Page 26 OFF / ON Set the date format. Date Format Y/M/D / M/D/Y / D/M/Y Select the 24-hour clock or the 12-hour clock. Time Format 24HR / AM/PM Display the Transcend logo watermark on photos or videos. Watermark OFF / ON...
-
Page 27: Tools
8-4 Tools On the Tools page, you can upgrade firmware to the latest version, format disk or reset DrivePro Body to its default status. Tools Function Description / Options Firmware Ver Upgrade your firmware to the latest version available. Set a password to protect the drive of your body camera. Password Password should be between 8 to 16 characters, either letters or numbers. -
Page 28: File Manager
8-5 File Manager Once the data is backed up, you can search and manage your videos and photos on the File Manager page. Click to play the video on the screen. Click to enlarge the video to full screen and play it. With a GPS receiver, the paths can be displayed along with the recorded video. -
Page 29: Smart Detection
Click on the right side of the page to add, Click to classify the Owner delete, or edit the Owner and Category. and Category of the selected file. 8-6 Smart Detection The DrivePro Body camera offers a feature that automatically detects faces in videos and extracts footage to the sidebar, allowing users to blur or block out faces. -
Page 30: Preference
8-7 Preference Click on top of the page to adjust the settings of the DrivePro Body Toolbox. Check the available options below according to your preference. Consult the DrivePro Body Toolbox Manual for further information ＞... -
Page 31: Transferring Files To A Computer
Docking Station (Optional) Transcend’s TS-DPD6N docking station is designed specifically for the DrivePro Body 30/60/70 and offers a complete charging, data upload, and camera management solution via the network. Users can charge multiple DrivePro Body 30/60/70 devices simultaneously and share files (including video recordings and snapshots) to an external storage device via a USB port. -
Page 32: Cautions
Cautions Do not use or store the DrivePro Body in the following places to prevent malfunction or deformation: In extremely hot, cold or humid places such as in a car parked in the sun Under direct sunlight or near a heater ... -
Page 33: Ip67 Protection
－ Allow at least 24 hours for the mount to properly adhere to the surface. IP67 Protection The camera body of the DrivePro Body 60 is rated at IP67, offering splash, water, and dust resistance. However, splash, water, and dust resistance are not permanent conditions, which might decrease due to normal wear. -
Page 34: Specifications
Specifications DrivePro Body 60 Main unit: 95.9 mm (L) x 52.2 mm (W) x 24.9 mm (H) 3.78” (L) x 2.06” (W) x 0.98” (H) Dimensions Camera unit: 61.3 mm x Ø 22 mm (2.41” x Ø 0.87”) Wearable cable: 100 cm (39.37”) Weight 167g (5.89 oz) -
Page 35: Frequently Asked Questions
Is the DrivePro Body shockproof and waterproof? The DrivePro Body 60 is IP67 dust and water protected and meets rigorous U.S. military drop-test standards *. -
Page 36: Recycling And Environmental Protection
< 100mW Recycling and Environmental Protection For more information on recycling the product (WEEE) and battery disposal, please refer to the following link: https://www.transcend-info.com/about/green. Warranty Policy Please find the warranty period of this product on its package. For details of Warranty Terms and Conditions and Warranty Periods, please refer to the link below: https://www.transcend-info.com/warranty. -
Page 37: Federal Communications Commission (Fcc) Statement
* This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. Transcend Information Inc (USA) 1645 North Brian Street, Orange, CA 92867, U.S.A TEL: +1-714-921-2000... -
Page 38: Eurasian Conformity Mark (Eac)
Eurasian Conformity Mark (EAC)
