User's Manual
Body Camera
DrivePro Body 20
TS32GDPB20A
(Version 1.0)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS32GDPB20A and is the answer not in the manual?

Questions and answers

Summary of Contents for Transcend TS32GDPB20A

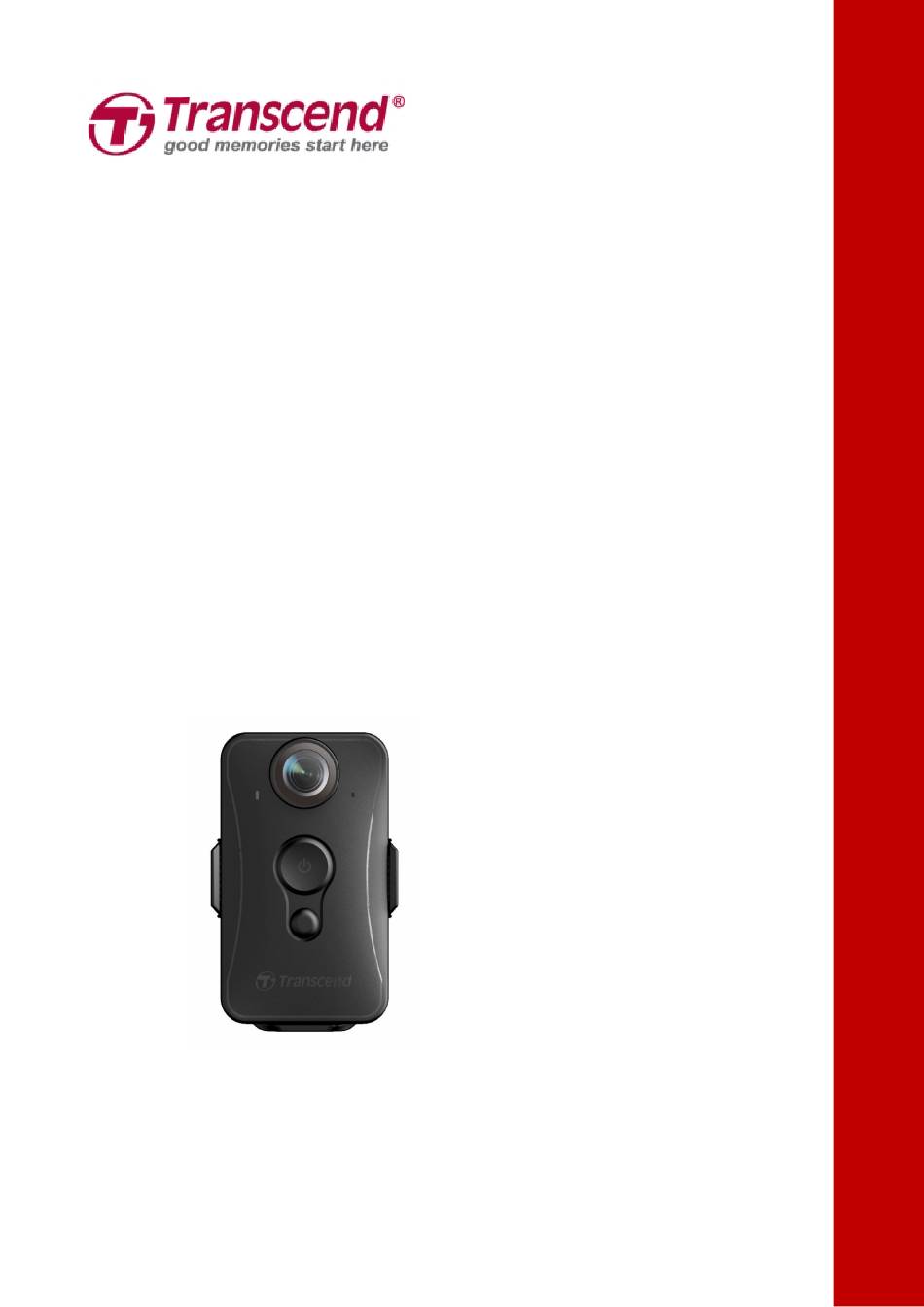

  • Page 1 User’s Manual Body Camera DrivePro Body 20 TS32GDPB20A (Version 1.0)
  • Page 2: Table Of Contents

    Table of Contents 1. Introduction.............................3 2. System Requirements........................4 3. Getting Started..........................5 3-1 Function Buttons......................... 5 3-2 Charging the DrivePro Body 20..................6 3-3 LED Indicator Table......................6 4. Recording Videos.......................... 7 5. Taking Photos..........................8 6. Precautions............................ 9 7. IPX4 Water Resistant......................... 10 8.
  • Page 3: Introduction

    1. Introduction Thank you for purchasing Transcend’s DrivePro Body 20 - an easy to operate wearable video camera that is tailor-made for police officers, security guards and other professionals to capture real time videos and photos of events. The Wi-Fi network allows live streaming to your smartphone.
  • Page 4: System Requirements

    2. System Requirements System requirements for connecting the DrivePro Body 20 to a computer and for using the DrivePro Body 20 Toolbox: A desktop or a laptop with a working USB port  Windows ®  Windows ®  Windows ®...
  • Page 5: Getting Started

    3. Getting Started 3-1 Function Buttons Warning Indicator Lens Built-in Microphone Recording / Wi-Fi Indicator Power Button Snapshot / Wi-Fi Button 3.5mm DC IN Reset Button socket 360° Rotatable Clip Velcro holder...
  • Page 6: Charging The Drivepro Body 20

    3-2 Charging the DrivePro Body 20 Before use, please ensure that the battery is fully charged. Charge the DrivePro Body 20 via the bundled USB 2.0 to 3.5mm DC power cable. A flashing orange LED light of the warning indicator is visible while charging; the orange LED light will be solid when fully charged.
  • Page 7: Recording Videos

    Status Definition Flashing Recording  Flashing Recording with Wi-Fi on  4. Recording Videos To start recording, long press the button; you will hear 1 beep, and the red LED light of the recording indicator will flash during recording. To activate Wi-Fi, long press the button while recording, and the LED light will flash from red to blue.
  • Page 8: Taking Photos

    5. Taking Photos To take photos while recording, simply press the button.
  • Page 9: Precautions

    6. Precautions Do not use or store the DrivePro Body 20 in the following places to prevent malfunction or deformation:  In extremely hot, cold or humid places such as in a car parked in the sun  Under direct sunlight or near a heater ...
  • Page 10: Ipx4 Water Resistant

    7. IPX4 Water Resistant The camera body of the DrivePro Body 20 is IPX4 water resistant (not waterproof), offering protection against splashing water from any direction. However, it is not protected against pressurized water such as from a shower or tap. WARNING: DrivePro Body 20 is not water resistant when connected to the power cable.
  • Page 11 Velcro Note: Clip & Velcro holders Quick Start Guide Warranty Card...
  • Page 13: Specifications

    DrivePro for repair. If you cannot find any ideal solution to your question below, please consult your dealer, service center, or local Transcend branch office for further help. You can also visit Transcend website (http://www.transcend-info.com/) for more FAQs and Technical Support services (http://www.transcend-info.com/Support/contact_form).
  • Page 14 Please check the followings: Is your DrivePro Body 20 properly connected to the USB port? If not, unplug and connect it again. Make sure that both ends of the USB cables are properly connected as shown in the User’s Manual. Is your DrivePro Body 20 connected to the Mac keyboard? If yes, try to plug it in an available USB port on your Mac Desktop directly.
  • Page 15: Recycling And Environmental Protection

    11. Recycling and Environmental Protection Recycling the Product (WEEE): Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. When you see the crossed-out wheel bin symbol attached to a product, it means that the product is covered by the European Directive 2002/96/EC: Never dispose of your product with other household waste.
  • Page 16: Two-Year Limited Warranty

    Under special circumstances, Transcend may refund or credit the current value of the product at the time the warranty claim is made. The decision made by Transcend shall be final and binding upon you. Transcend may refuse to provide inspection, repair or replacement service for products that are out of warranty, and will charge fees if these services are provided for out-of-warranty products.
  • Page 17: Gnu General Public License (Gpl) Disclosure

    (“Licensed Software”) pursuant to this End-User License Agreement (“Agreement”), whether provided separately or associated with a Transcend product (“Product”), to the original purchaser of the Product upon or with which the Licensed Software was installed or associated as of the time of purchase ("Customer") only if Customer accepts all of the terms and conditions of this Agreement.
  • Page 18 Licensed Software; (e) remove, alter or obscure any copyright notice or other proprietary rights notice on the Licensed Software or Product; or (f) circumvent or attempt to circumvent any methods employed by Transcend to control access to the components, features or functions of the Product or Licensed Software.
  • Page 19 10. Miscellaneous. (a) This Agreement constitutes the entire agreement between Transcend and Customer concerning the subject matter hereof, and it may only be modified by a written amendment signed by an authorized executive of Transcend. (b) Except to the extent applicable law, if any, provides otherwise, this Agreement will be governed by the law of the Republic of China, excluding its conflict of law provisions.
  • Page 20: Federal Communications Commission (Fcc) Statement

    15. Federal Communications Commission (FCC) Statement This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received including interference that may cause undesired operation. This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.
