User's Manual
2023/03（v1.0）

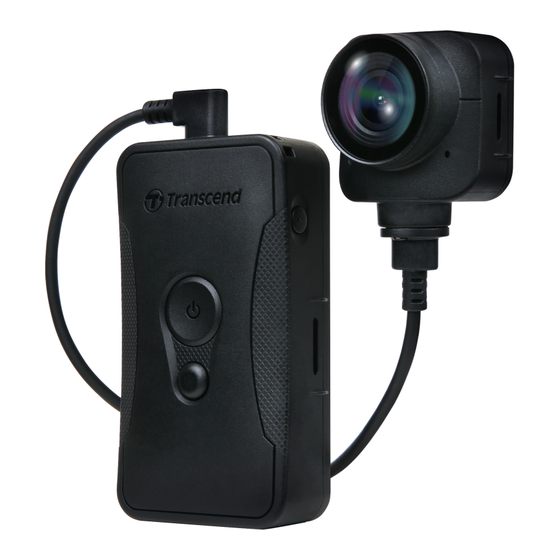

Body Camera DrivePro Body 70

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DrivePro Body 70 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Transcend DrivePro Body 70

Summary of Contents for Transcend DrivePro Body 70

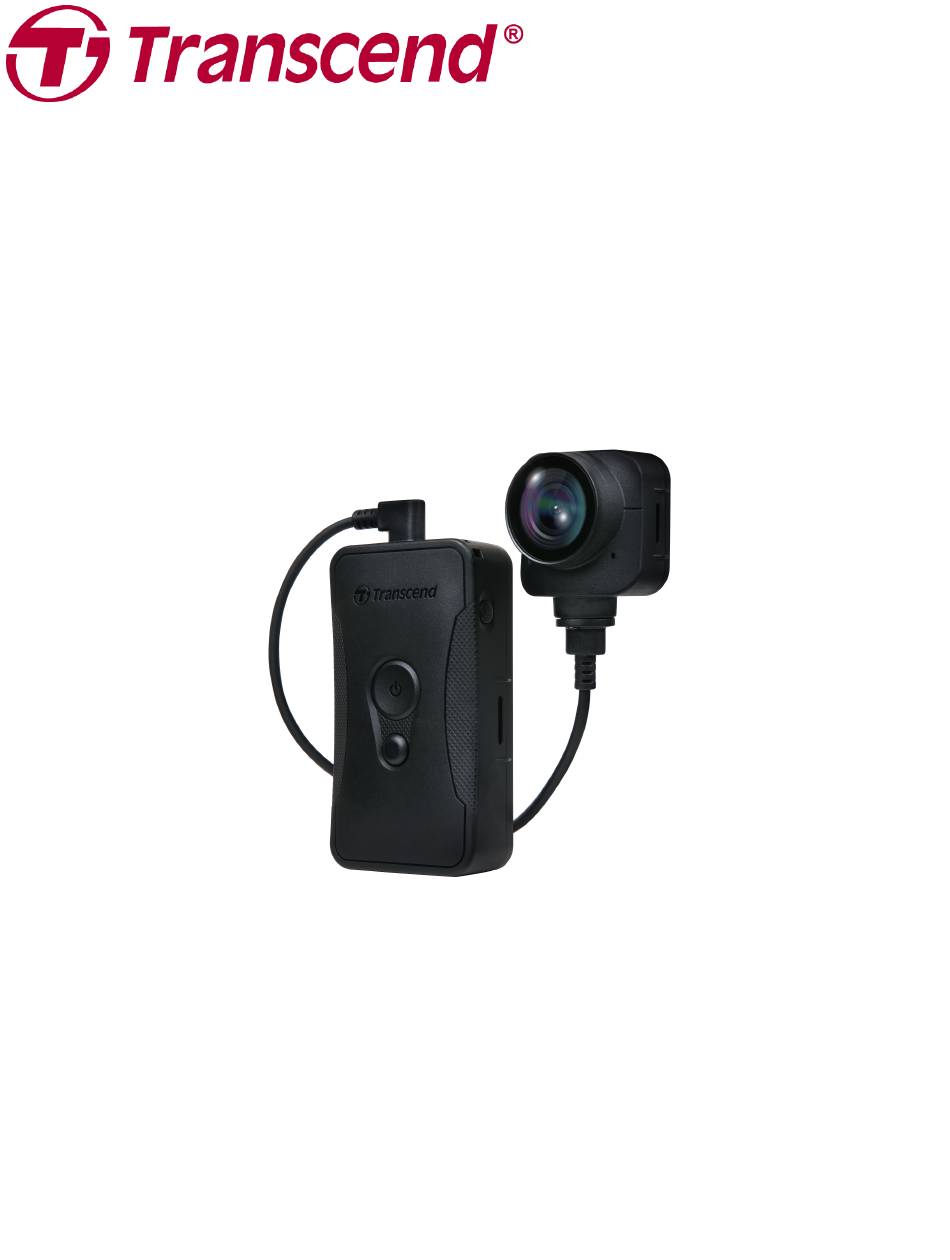

  • Page 1 User’s Manual 2023/03（v1.0） Body Camera DrivePro Body 70...

  • Page 2: Table Of Contents

    Table of Contents 1. Package Contents 2. Getting Started 2-1 Function Buttons 2-2 Mounting the DrivePro Body 2-3 Function Button Description 2-4 LED Indicators 2-5 Charging the DrivePro Body 3. Recording Videos 3-1 Buffering Mode 3-2 Recording Mode 4. Taking Photos 5.
  • Page 3 18. GNU General Public License (GPL) Disclosure 19. End-User License Agreement (EULA) 20. Federal Communications Commission (FCC) Statement 21. Eurasian Conformity Mark (EAC)

  • Page 4: Package Contents

    1. Package Contents DrivePro Body 70 Belt holster Adapter 3.5mm to USB cable Clip mount Velcro holder Quick Start Guide...

  • Page 5: Getting Started

    2. Getting Started 2-1 Function Buttons...

  • Page 7: Mounting The Drivepro Body

    2-2 Mounting the DrivePro Body...

  • Page 8: Function Button Description

    2-3 Function Button Description Button Instruction Description Long press once Power on/off Power Button Switch between Buffering mode and Recording mode. Short press twice Default: Buffering mode Snapshot Long press once Audio recording Button Short press once Take a snapshot. Reset, format and power off...

  • Page 9: Led Indicators

    2-4 LED Indicators Top View 1 Recording Status LED Definition Flashing Low battery Connected to a computer / power source Status LED Definition Solid Charging Checking the battery status Status LED Definition Solid > 67% remaining Solid 31% to 67% remaining Solid <...
  • Page 10 Top View 2 Recording Status LED Definition Flashing Memory almost full Flashing quickly Bluetooth pairing Flashing GPS positioning Checking status Solid in Buffering mode Checking status Flashing steadily in Recording mode Checking status Flashing twice in Audio recording mode Solid Silent mode (Microphone off) Connected to a computer Status...
  • Page 11 Front View Status LED Definition Solid Buffering mode Flashing quickly Powering on Flashing steadily Recording mode Flashing twice Audio recording mode Browser / Solid Connected to a computer...

  • Page 12: Charging The Drivepro Body

    Connect the 3.5 mm to USB cable to the body camera and a wall outlet with the included adapter. Connect the 3.5 mm to USB cable to the body camera and a computer. Connect the DrivePro Body to Transcend’s Docking Station (Optional). "WARNING" ...

  • Page 13: Recording Videos

    3. Recording Videos 3-1 Buffering Mode Recording in Buffering mode can significantly save storage space as the files are not recorded to the internal storage. To power on and start Buffering mode (by default), long press the button; you will hear a beep.

  • Page 14: Recording Mode

    After hearing a beep, the LED light and the device will turn off. Video files recorded in Recording mode will be saved in the folder named “VIDEO” and overwritten with loop recording enabled. DrivePro Body 70 saves video files every 3 minutes automatically. (The default recording length is 3 minutes). "Note"...

  • Page 15: Audio Recording

    5. Audio Recording To start Audio recording mode, long press the button. Audio Recording files will be saved in the folder named “AUDIO.” 6. Advanced Feature 6-1 Bluetooth Team Sync “Bluetooth Team Sync” is a function based on Bluetooth technology. Within an acceptable range of Bluetooth, as long as a body camera enters Recording mode from Buffering mode, other body cameras of the same team will also enter Recording mode.

  • Page 16: Using The Drivepro Body App

    7. Using the DrivePro Body App Developed for iOS and Android devices, the DrivePro Body App lets you watch live-view videos and adjust the camera settings wirelessly on your smart devices. DrivePro Body App 7-1 Downloading and Installing the DrivePro Body 1.

  • Page 17: Connecting To The Drivepro Body App

    7-2 Connecting to the DrivePro Body App 1. Tap “DrivePro Body” App and turn on Bluetooth to pair. Select “DrivePro Body 70” on the App. 2. Power on the DrivePro Body by long pressing the button. Tap “Next” to continue.
  • Page 18 4. Tap “Browser” or “Live View” to connect to Wi-Fi named “DPB70_XXXXXX” with the default password “12345678”.

  • Page 19: Drivepro Body App Homepage

    7-3 DrivePro Body App Homepage "Note"  The camera stops recording when you tap “Browser” or “Settings” on the DrivePro Body App, and the front LED turns solid red.

  • Page 20: Playing Videos And Browsing Photos

    7-4 Playing Videos and Browsing Photos 1. To play videos and browse photos, tap “Browser” on the Homepage or on the top left corner first, then tap 2. Tap the icons on the bottom to watch videos, browse pictures, or listen to audio recordings.

  • Page 21: Settings

    7-5 Settings on the top left corner first, then tap to enter the Settings menu. In the Settings menu, you can adjust the video, device, Wi-Fi, and system settings.
  • Page 22 Menu options VIDEO Icon Function Description / Options Set the quality for video recording. Resolution 1440P / 1080P / 720P / 480P Set the recording length of each recorded video. Video Length 3 min / 5 min / 10 min Turn off/on the microphone during video recording.
  • Page 23 When the stealth mode is on, the light indicators, buzzer, and Stealth Mode vibrator are disabled. Disable / Enable Set the Wi-Fi password of the DrivePro Body 70. Wi-Fi Password should be between 8 to 16 characters, either letters Password or numbers.

  • Page 24: Using The Drivepro Body Toolbox Software

    The software features a user-friendly interface that allows users to set the basic functions of the DrivePro Body camera. 8-1 System Requirements System requirements for connecting the DrivePro Body 70 to a computer and for using the DrivePro Body Toolbox software: A desktop or a laptop with a working USB port: Windows®...

  • Page 25: Status

    8-2 Status Please find the basic information of the DrivePro Body, including the user label, model, device serial number, and firmware version, on the Status page. To adjust the user label and Bluetooth Team Sync function, click  "Note" Select “preferred team number” for Bluetooth Team Sync from 1 to 10. To find a device, click To play videos and browse photos, click To start backing up, click...

  • Page 26: Settings

    8-3 Settings On the Settings page, you can adjust the Device, Video, and Video Stamp settings. Device Settings Function Description / Options Sync time with PC Click the “Set” button to sync the time of the device with the PC. Turn on/off...
  • Page 27 Set the audio sampling frequency. The higher the frequency, the better the sound quality. Audio Sample Rate 48000 Hz / 44100 Hz / 32000 Hz / 24000 Hz / 22050 Hz Reset When the power is on, press the Power and Snapshot buttons Using Function simultaneously for 5 seconds to format and reset the device.
  • Page 28 Video Settings Function Description / Options Set the quality for video recording. Resolution 1440P/30FPS / 1080P/30FPS / 720P/30FPS / 480P/30FPS Set the recording file format. Video Format MOV / MP4 Overwrite the old video files with new ones. Loop Recording ON / OFF Set the recording length of each recorded video.
  • Page 29 Default Recording Select the default recording mode. Mode Buffering mode / Recording mode Set the buffered video length to record footage that happens prior Buffered Video to activating the Recording mode. Length 30 seconds / 60 seconds / 90 seconds / 120 seconds Turn on/off...
  • Page 30 ON / OFF Set the date format. Date Format Y/M/D / M/D/Y / D/M/Y Select the time format. 24 or 12-hour clock. Time Format 24HR / AM/PM Display the Transcend logo watermark on photos or videos. Watermark ON / OFF...

  • Page 31: Tools

    8-4 Tools On the Tools page, you can upgrade firmware to the latest version, format disk or reset DrivePro Body to its default status. Tools Function Description / Options Firmware Ver Upgrade your firmware to the latest version available. Set a password to protect the drive of the body camera. Password Password should be between 8 to 16 characters, either letters or numbers.

  • Page 32: File Manager

     "WARNING" 1. For best recording stability, you are suggested to back up your data with the DrivePro Body Toolbox each time you finish using the device or format it using the Toolbox every three months. 2. Please use DrivePro Body Toolbox only to format your DrivePro Body. 3.
  • Page 33 Click on the right side of the page to add, delete, or edit the Owner and Category.

  • Page 34: Preference

    Click to classify the Owner and Category of the selected file. 8-6 Preference Click on top of the page to adjust the settings of the DrivePro Body Toolbox. Check the available options below according to your preference.
  • Page 35 Please refer to the User’s Manual of DrivePro Body Toolbox via the link below. https://www.transcend-info.com/Manual/DriveProBody/Toolbox/EN/...

  • Page 36: Transferring Files To A Computer

    9. Transferring Files to a Computer To transfer files between the DrivePro Body and the computer: 1. Plug the 3.5 mm to USB cable into the connection socket of the DrivePro Body. 2. Connect the other end of the cable to the desktop or laptop. Your DrivePro Body is now ready to transfer data like an external hard drive.

  • Page 37: Docking Station (Optional)

    10. Docking Station (Optional) Transcend’s DPD6N networked docking station is designed specifically for the DrivePro Body 30/60/70 and offers a complete charging, data upload, and camera management solution via the network. Users can charge multiple DrivePro Body 30/60/70 devices simultaneously and share files (including video recordings and snapshots) to an external storage device via a USB...

  • Page 38: Cautions

    11. Cautions 1. Do not use or store the DrivePro Body in the following places to prevent malfunction or deformation: In extremely hot, cold, or humid places, such as in a car parked in the sun Under direct sunlight or near a heater Near strong magnetic fields In sandy or dusty places 2.

  • Page 39: Ip68 Protection

    GPS positioning. 12. IP68 Protection The camera body of the DrivePro Body 70 is rated at IP68, offering splash, water, and dust resistance. However, splash, water, and dust resistance are not permanent conditions, which might decrease due to normal wear.

  • Page 40: Specifications

    13. Specifications Main unit: 95.9 mm (L) × 52.2 mm (W) × 24.9 mm (H) 3.78” (L) x 2.06” (W) x 0.98” (H) Dimensions Camera unit: 48.6 mm (L) x 40 mm (W) x 31.7 mm (H) 1.91” (L) x 1.57” (W) x 1.25” (H) Weight 184 g (6.5 oz) Connect Interface...

  • Page 41: Frequently Asked Questions

    flat tip, such as a straightened paper clip, to turn it off and on again. 3. Is the DrivePro Body 70 waterproof and shockproof? The DrivePro Body 70 is IP68 dust and water protected and meets rigorous U.S. military drop-test standards*.

  • Page 42: Eu Compliance Statement

    15. EU Compliance Statement Transcend Information hereby declares that all CE marked Transcend products incorporating radio equipment functionality are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.transcend-info.com/eu_compliance...
  • Page 43 19. End-User License Agreement (EULA) For details of software license terms, please refer to the following link: https://www.transcend-info.com/legal/gpl-disclosure-eula 20. Federal Communications Commission (FCC) Statement This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received including interference that may cause undesired operation.
  • Page 44 This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. Transcend Information Inc (USA) 1645 North Brian Street, Orange, CA 92867, U.S.A TEL: +1-714-921-2000...
