Platinum Access Systems BLSW2212-B Installation Instructions & Owner's Manual

Vehicular gate operator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

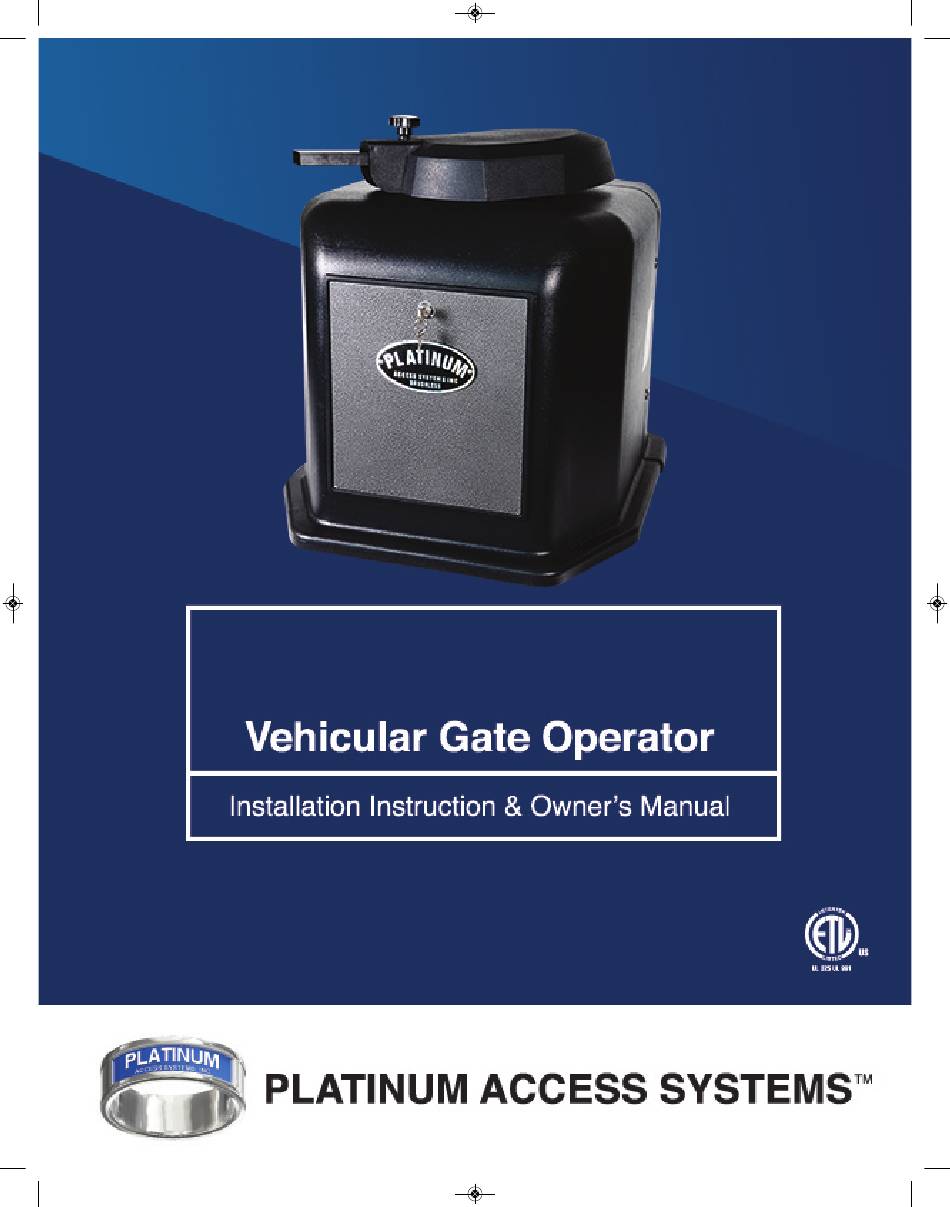

BLSW2212 Manual_Layout 1 6/10/2015 5:03 PM Page 1
BLSW2212

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BLSW2212-B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Platinum Access Systems BLSW2212-B

Summary of Contents for Platinum Access Systems BLSW2212-B

  • Page 1 BLSW2212 Manual_Layout 1 6/10/2015 5:03 PM Page 1 BLSW2212...

  • Page 2: Table Of Contents

    BLSW2212 Manual_Layout 1 6/10/2015 5:03 PM Page 3 Installation Instructions & Safety Information Manual BLSW2212 Installation Instructions and Safety Information Manual: Vehicular Gate Operator Class I, Class II, Class III, and Class IV Safety Information ..........4-8 Installation ..........9-10 Inductive Loops ...........11-12 Alarm Reset Switch ..........13...

  • Page 3: Safety Information

    BLSW2212 Manual_Layout 1 6/10/2015 5:03 PM Page 4 SAFETY INFORMATION WARNING – To reduce the risk of severe injury or death to person, please to follow these instructions: 1. READ AND FOLLOW ALL INSTRUCTIONS MANUAL BEFORE ATTEMPTING ANY INSTALLA- TION. 2.
  • Page 4 BLSW2212 Manual_Layout 1 6/10/2015 5:03 PM Page 5 SAFETY INFORMATION WARNING – To reduce the risk of severe injury or death to person, please to follow these instructions: GENERAL SAFETY PRECAUTIONS WITH THE END-USER: 1. Instruct the end-user on how to safely operate all functions of the operator. 2.
  • Page 5 BLSW2212 Manual_Layout 1 6/10/2015 5:03 PM Page 6 SAFETY INFORMATION WARNING – To reduce the risk of severe injury or death to person, please to follow these instructions: IMPORTANT INSTALLATION INSTRUCTIONS BY UL STANDARDS: (CONTINUED FROM PREVIOUS PAGE) 4. The gate must be properly installed and work freely in both directions prior to the installation of the gate operator.
  • Page 6 BLSW2212 Manual_Layout 1 6/10/2015 5:03 PM Page 7 gate operator class categories and examples WARNING – To reduce the risk of severe injury or death to person, please to follow these instructions: CAUTION: To Reduce the Risk of Fire or Injury to Persons Use only the type and size of batteries provided on an AC powered system: OUTDO-OT7-12 disposal instructions.
  • Page 7 BLSW2212 Manual_Layout 1 6/10/2015 5:03 PM Page 8 SAFETY INFORMATION WARNING – To reduce the risk of severe injury or death to person, please to follow these instructions: 12'-0" FOR USE WITH GATES OF A MAXIMUM OF 12 FT IN LENGTH 2200 lb.

  • Page 8: Installation

    BLSW2212 Manual_Layout 1 6/10/2015 5:03 PM Page 9 INSTALLATION WARNING – To reduce the risk of severe injury or death to person, please to follow these instructions: Note: This type of installation DOES NOT reverse the gate all the way back to its limits when the photo- beam is obstructed.
  • Page 9 BLSW2212 Manual_Layout 1 6/10/2015 5:03 PM Page 10 INSTALLATION WARNING – To reduce the risk of severe injury or death to person, please to follow these instructions: Note: This type of installation DOES NOT reverse the gate all the way back to its limits when the photo- beam is obstructed.

  • Page 10: Inductive Loops

    BLSW2212 Manual_Layout 1 6/10/2015 5:03 PM Page 11 Installation: Inductive Loops WARNING – Consult the installation instructions from the loop detector manufacturer. The following statements are provided as a guide but different requirements may be required by the vehicular loop detector manufacturer.
  • Page 11 BLSW2212 Manual_Layout 1 6/10/2015 5:03 PM Page 12 Installation: Inductive Loops WARNING – This product is an accessory or part of a system. Always read and follow the manufactur- er’s instructions for the equipment before connecting this product. Comply with all applicable codes and safety regulations.

  • Page 12: Alarm Reset Switch

    BLSW2212 Manual_Layout 1 6/10/2015 5:03 PM Page 13 Installation: Alarm Reset Switch & Warning Placards WARNING – To reduce the risk of severe injury or death to person, please to follow these instructions: Alarm Reset Switch Installation: (UL 325 standard requires) An audible alarm to go off after two consecutive events detected by the primary entrapment protection of the gate operator.

  • Page 13: Plan Of Installation

    BLSW2212 Manual_Layout 1 6/10/2015 5:03 PM Page 14 PLAN OF INSTALLATION Plan of Installation: The gate must be installed in a location so that enough clearance is supplied between the gate and adjacent structures when opening and closing to reduce the risk of entrapment. Swinging gates shall not open into public access areas.
  • Page 14 10” wide and 6” deep. at least 10” wide and 6” deep. Arm Assembly Platinum Access Systems can supply an Elbow Arm Secondary Extension (Part # PA-EA100) to make the unit backdrivable. Contact Platinum Access for availability. Dimension E (see Fig.
  • Page 15 BLSW2212 Manual_Layout 1 6/10/2015 5:03 PM Page 16 PLAN OF INSTALLATION Plan of Installation (continued): CAUTION Do not weld the bar or backing plate to only a few gate posts. Mounting bar must be welded to a frame segment that runs the full length of the gate to prevent damage to the gate operator.
  • Page 16 BLSW2212 Manual_Layout 1 6/10/2015 5:03 PM Page 17 PLAN OF INSTALLATION Plan of Installation (continued): STEP 4 Once satisfied with the arrangement of the articulated arm and bracket, weld all pieces securely. Paint the arm to preserve it from rusting. STEP 5 Insert Output Key...

  • Page 17: Electrical

    BLSW2212 Manual_Layout 1 6/10/2015 5:03 PM Page 18 Installation: ElecTrical Electrical Installation: To help protect the equipment from lightning and power surges and to protect persons from shock hazard the Black Operator must be grounded. The earth ground rod must be located within 3 feet from the gate operator.
  • Page 18 BLSW2212 Manual_Layout 1 6/10/2015 5:03 PM Page 19 Installation: ElecTrical Connecting Power: Connect the LIMIT harness to J14, and MOTOR CTL harness to J4. On the OPEN DIR switch: Select “RIGHT” to open right. Select “LEFT” to open left. OPEN LEFT OPEN RIGHT BLSW2212 TECHNICAL SUPPORT: (909) 259-6001...
  • Page 19 BLSW2212 Manual_Layout 1 6/10/2015 5:03 PM Page 20 Installation: LIMIT SWITCH SET-UP Limit Switch Set-Up: STEP 7 Cam Wheel A. Loosen the screws on the Limit Switch Cams. B. Remount the articulated arm, making sure the cam wheel pin is engaged with the clutch.

  • Page 20: Limit Switches

    BLSW2212 Manual_Layout 1 6/10/2015 5:03 PM Page 21 Installation: LIMIT SWITCH SET-UP Limit Switch Set-Up (continued): OPENING/CLOSING SETUP Slow 1. Setup the limit switches manually at the desired open and close position. 2. Allow the gate operator to run a full open Fast and close cycle (from limit to limit) without interruption.

  • Page 21: Primary/Secondary Connections

    BLSW2212 Manual_Layout 1 6/10/2015 5:03 PM Page 22 Installation: Primary/Secondary Connections Electrical Installation - Primary/Secondary: Outside Secondary Primary Interconnecting Conduit Inside Caution – Do not run Primary/Secondary communication cable (Model #PA-PSC100) in the same conduit as the power supply (120-220V) cable. Shielded Cable (#PA-PSC100) Conduit NOTE: Use 16...

  • Page 22: Loop Rack

    BLSW2212 Manual_Layout 1 6/10/2015 5:03 PM Page 23 Installation: Loop Rack Loop Rack Installation: Outside Twist Wire Outside the Outside Safety Loop 6 Twists/Foot Loop Rack (#GOC-LDR) Loop Until Its Connection to the Loop Rack Center Exit Safety Safety Safety Exit Center Loop...

  • Page 23: Accessory Connections

    BLSW2212 Manual_Layout 1 6/10/2015 5:03 PM Page 24 Installation: Accessory Connections Accessory Connections: To decrease the possibility of vehicle entrapment on the gate, vehicle loop detectors need to be installed. The edge sensor and the photo- electric beam can be used for secondary entrapment protection on every installation to prevent pedestrian or animal entrapment.
  • Page 24 BLSW2212 Manual_Layout 1 6/10/2015 5:03 PM Page 25 Installation: Accessory Connections ACCESSORY CONNECTIONS (continued): Radio Receiver Need to verify the proper connections before connecting the Radio Receiver. The maximum voltage that the control board / battery can provide is about 28V for external accessories.
  • Page 25 BLSW2212 Manual_Layout 1 6/10/2015 5:03 PM Page 26 Installation: Accessory Connections Accessory Connections (continued): Solenoid Connection The solenoid power connection must be provided an external power source. This will prevent damage to the battery in the event of a line power failure. Guard Station OPEN OPEN...
  • Page 26 BLSW2212 Manual_Layout 1 6/10/2015 5:03 PM Page 27 Installation: Accessory Connections ACCESSORY CONNECTIONS (continued): Locks Magnetic Lock (#PA-MAG13) (Supplied with Lock Kit) (Supplied with Lock Kit) Green Black 24VDC White The Magnetic Lock power connection must be provided an external power source. This will prevent damaging the battery in the event of line power failure.

  • Page 27: Selectable Features

    Select the DIP switch to ADV MLOK position. OPEN ON POWER FAIL: The Auto-Open feature in Platinum Access Systems Gate Operators enables the following functionality in the event of power failure: a. Open the gate in case of power failure (120 or 220 VAC).
  • Page 28 BLSW2212 Manual_Layout 1 6/10/2015 5:03 PM Page 29 Installation: Selectable Features CLOSE TIMER: Close Timer The Close Timer will close the gate a set time after the vehicle clears the gate area. This is adjustable from 3 to 60 seconds. LEAF DELAY: Leaf Delay An Overlap Delay has been provided for...
  • Page 29 BLSW2212 Manual_Layout 1 6/10/2015 5:03 PM Page 30 Installation: Selectable Features FAIL SAFE/SECURE: Fail Safe/Secure On = Fail Safe Off = Fail Secure Fail/Safety Battery Output (Input) Detection Detection Normal Normal Secure Normal Fail Safe Low/OFF Normal Fail Safe Low/OFF Fail Safe Normal Normal...

  • Page 30: Gate Operator Trouble Shooting Procedure

    BLSW2212 Manual_Layout 1 6/10/2015 5:03 PM Page 31 Gate Operator Trouble Shooting Procedure otor Does Not Run 1. M a. AC/SOL LED is OFF: -- Check battery breaker switch to make sure it is ON. -- Check the motor breaker to make sure it is turned to ON position. -- Make sure the AC Switch is ON and if necessary use a multi meter to check the input voltage to make sure it is 115VAC/220VAC.
  • Page 31 BLSW2212 Manual_Layout 1 6/10/2015 5:03 PM Page 32 Gate Operator Trouble Shooting Procedure c. Does Not Close Automatically: -- Check TIMER pot to make sure the setting is correct, or not. Normally set to 12 O’clock. -- Check other external safe devices like Loop Detector, Photo Beam sensor, Edge Sensor, Radio to make sure none of them are activated.
  • Page 32 BLSW2212 Manual_Layout 1 6/10/2015 5:03 PM Page 33 Part 21. L Handle 1. Front Cover 41. Ouput Shaft keyway 22. Limit Cam Holder Plate 2. Rear Cover 42. Sprocket 50B15, Gear Box 23. Limit Cam 3. Front Door 43. Sprocket 50B15, Motor 24.
  • Page 33 BLSW2212 Manual_Layout 1 6/10/2015 5:03 PM Page 34 PLATINUM ACCESS SYSTEMS ™ 1725 E. Grevillea Court, Ontario, CA 91761 Phone: (855) 466-8686 I Fax: (909) 923-7890 www.PlatinumASI.com © 2013 Platinum Access Systems, Inc. All Rights Reserved.
